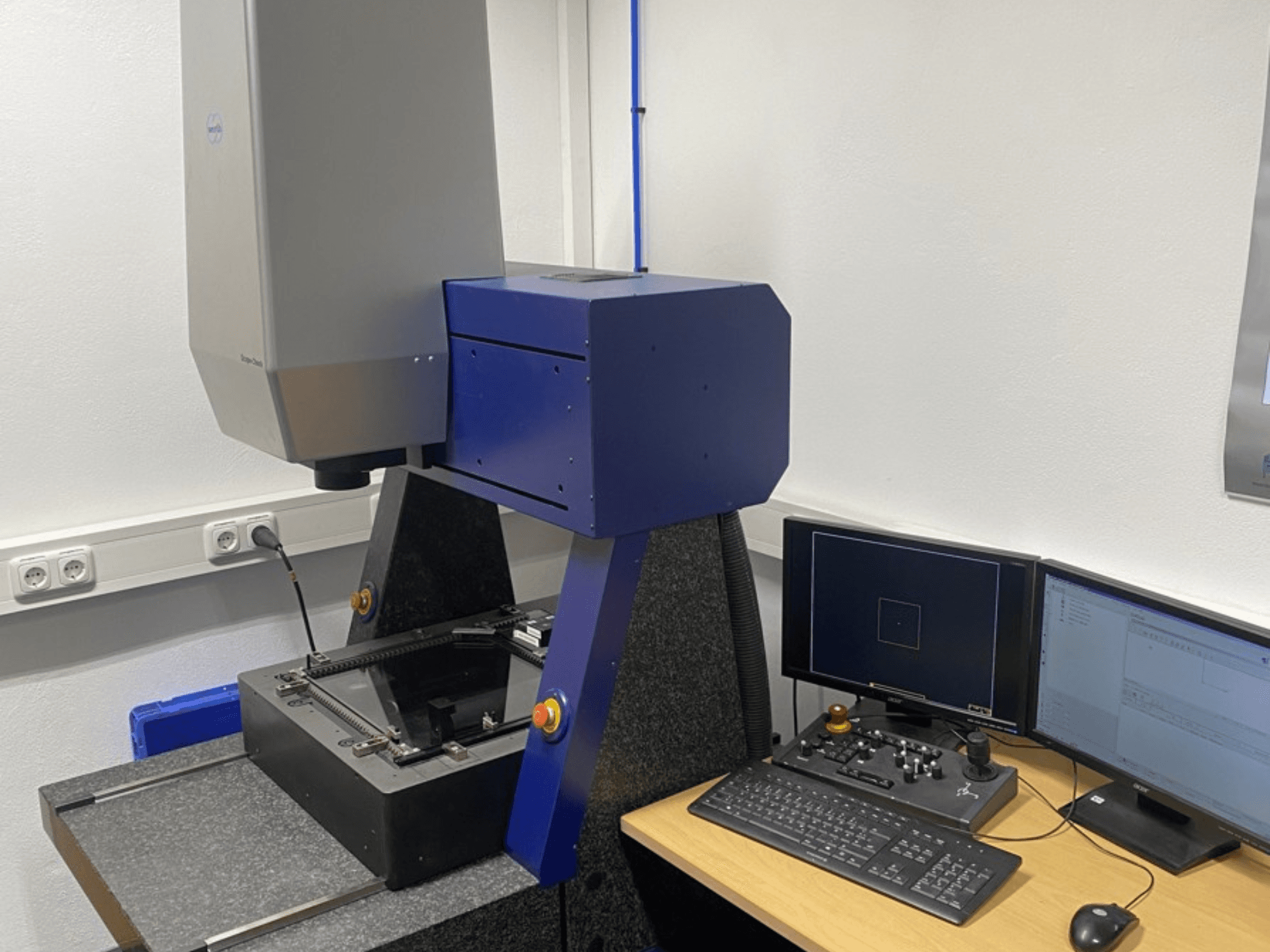

This 3-axis Werth Scope-Check 400 was manufactured in 2013. It features a measuring range of 400 mm in the X and Y axes, and 300 mm in the Z axis. The machine is equipped with a tactile probe system and operates on Windows 7 Professional. If you are looking to get high-quality measurement capabilities, consider the Werth Scope-Check 400 CMM machine we have for sale. Contact us for further details.
Overview
- brand: Werth
- year: 2013
- MODEL: Scope-Check 400
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - Werth Scope-Check 400
Movement
- Number of Axes: 3
- X-axis Travel: 400 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 300 mm
Additional Information
Optical measuring accuracy:
MPE E1: (1.5 + L/250) µm
MPE E2: (1.9 + L/250) µm
MPE E3: (2.9 + L/100) µm
MPE PS/2D (OS): 1.1 µm
MPE PS/2D (OT): 1.9 µm
Tactile measurement:
Probe system: TP200 / SP25 Kit 1
MPE E3: (1.9 + L/250) µm
MPE P: 1.9 µm
MPE THN: 2.5 µm
MPE THP: 2.5 µm
Operating conditions:
Temperature range: 20°C ± 1 K
Temperature gradient: 0.5 K/h
Electrical:
Voltage: 115–230 V AC
Frequency: 50–60 Hz
Maximum current: 10 A
Software: WinWerth
Operating system: Windows 7 Professional 64-bit
Notes/condition:
SM25-2 module for tactile measurement is missing
Small chip in the glass plate (does not affect functionality)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
