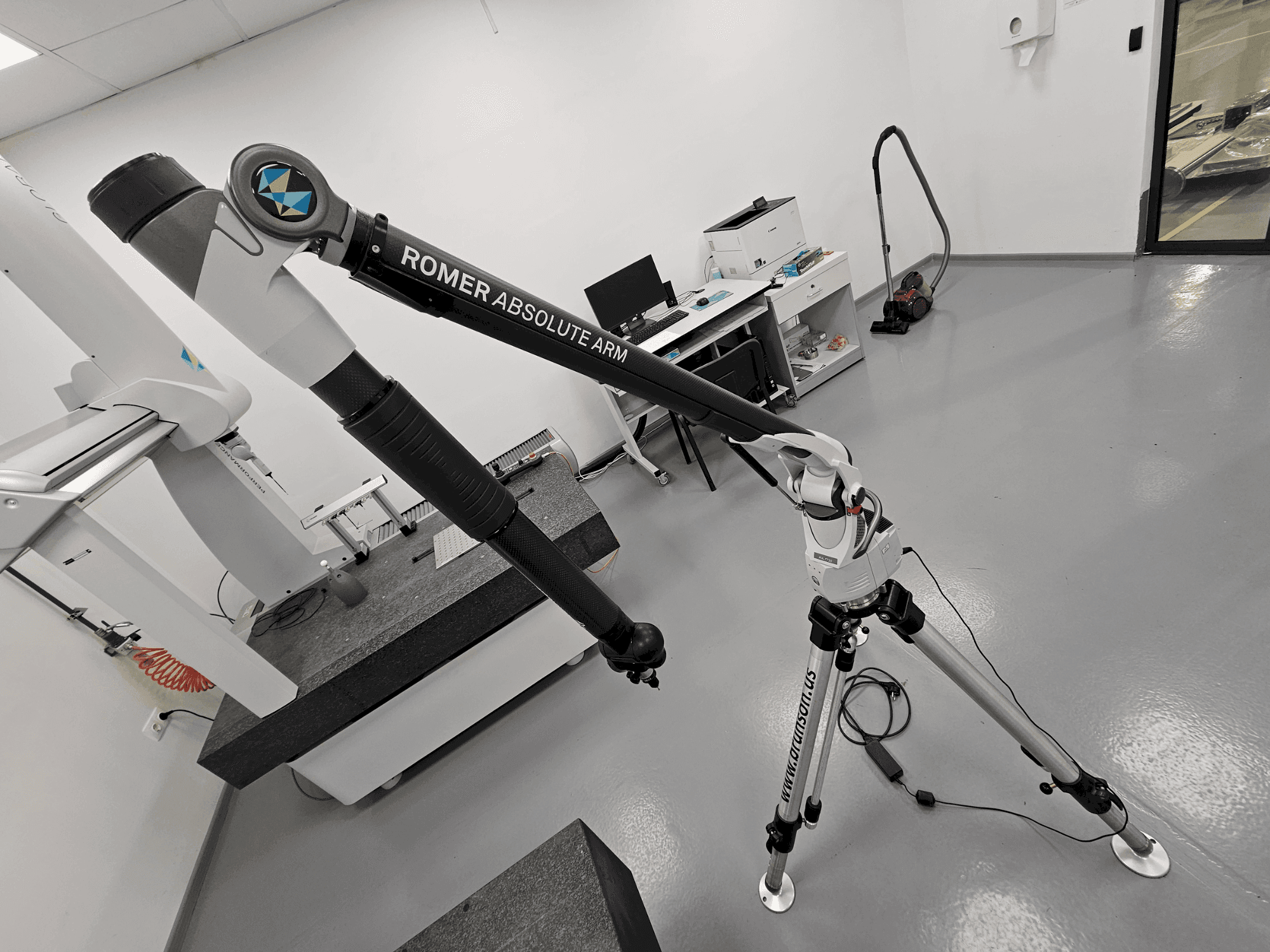

ROMER - Absolute Arm 7730BG-MEA-ROM-2017-00001

Additional Equipment

• - RDS arm control software
• - Portable laptop configured for operation

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Measurement range: 3000 mm
  • - Point repeatability: 0. 026 mm
  • - Volumetric accuracy: ±0. 040 mm
  • - Power supply: 110–240 v

Extra information

• - Environmental Requirements Operating Temperature: 0 – 50 °C Storage Temperature: –30 – 70 °C Humidity: 10% – 90% Working Altitude: 0 – 2000 m Accuracy: Guaranteed at 20 ± 2 °C with installation on ROMER metal base or magnetic stand Hardware Features 6-axis measuring arm Absolute encoders (no initialization required) Integrated work light and camera Zero-G counterbalance system for easy one-hand use Carbon fiber tubes for stability and light weight Continuous rotation of main axis for access to difficult areas Audio and vibration feedback interface in the wrist Mobility package with rechargeable batteries and Wi-Fi communication Magnetic base for mounting Included Accessories Probes & Extensions: 130 mm, 150 mm, 180 mm, 200 mm extensions; 2 mm, 3 mm, 4 mm, 5 mm, 6 mm ruby ball tips; TKJ connectors (2 pcs) Sensors Included 3 mm ruby 6 mm ruby 15 mm steel Other Accessories Portable tripod (height adjustable 75–119 cm, 9.6 kg) Calibration sphere & bar Transport case Software For tactile measurements only Intuitive graphical interface High-level programming environment Probe and Go™ touch measurement mode Interactive CAD programming Certified PTB algorithms Customizable reporting tools Supports Direct-CAD interfaces (UG, CATIA, Pro-E, I-DEAS, ACIS, SolidWorks – optional) Direct-CAD translators (UG, CATIA, Pro-E – optional)

Payment Terms

• Payment in advance

• Asset Financing
