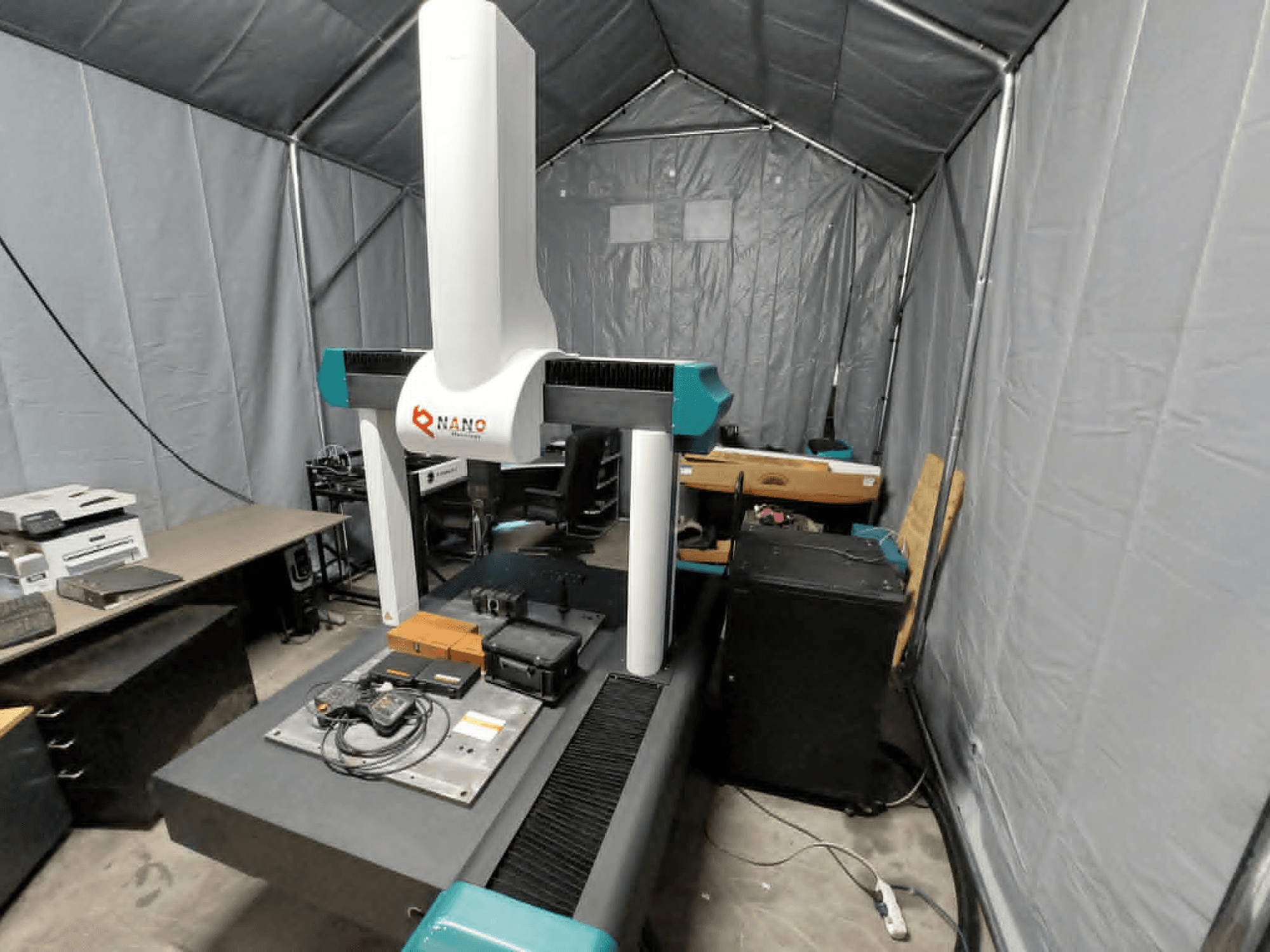

This 3-axis NANO METROLOGY Micr 7106 was manufactured in 2015. It features a measuring range of 700 mm in X, 1000 mm in Y, and 600 mm in Z, making it suitable for 3D dimensional inspection and industrial quality control. The machine includes a granite measuring table and an automatic indexing probe head. If you are looking to get high-quality 3D inspection capabilities, consider the NANO METROLOGY Micr 7106 CMM machine we have for sale. Contact us for further details.
Overview
- brand: NANO METROLOGY
- year: 2015
- MODEL: Micr 7106
- application type: Measuring
- Location: Hungary
- machine type: Coordinate Measuring Machine (CMM)
Technical Information - NANO METROLOGY Micr 7106
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 600 mm
Additional Information
Design/structure: Bridge-type, granite measuring table, air-bearing guidance
Measuring system: Renishaw
Probe head: Renishaw PH10T automatic indexing (7.5° increments)
Probe: Renishaw TP20
Controller: Renishaw UCC T3 Plus
Software: Rational DMIS
Capacity: Max workpiece load approx. 1000 kg
Operating conditions: Recommended 20 ± 2 °C; compressed air approx. 0.55 MPa
Condition: Used; currently not in daily operation; service history by Renishaw; inspection/test possible; external cosmetic damages not affecting operation (reported)
Key points: Full Renishaw measuring package; 2020 measuring system upgrade; granite table; automatic indexing probe head; large measuring volume; Renishaw service history; suited for high-precision metrology
Reason for sale: Underutilization
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
