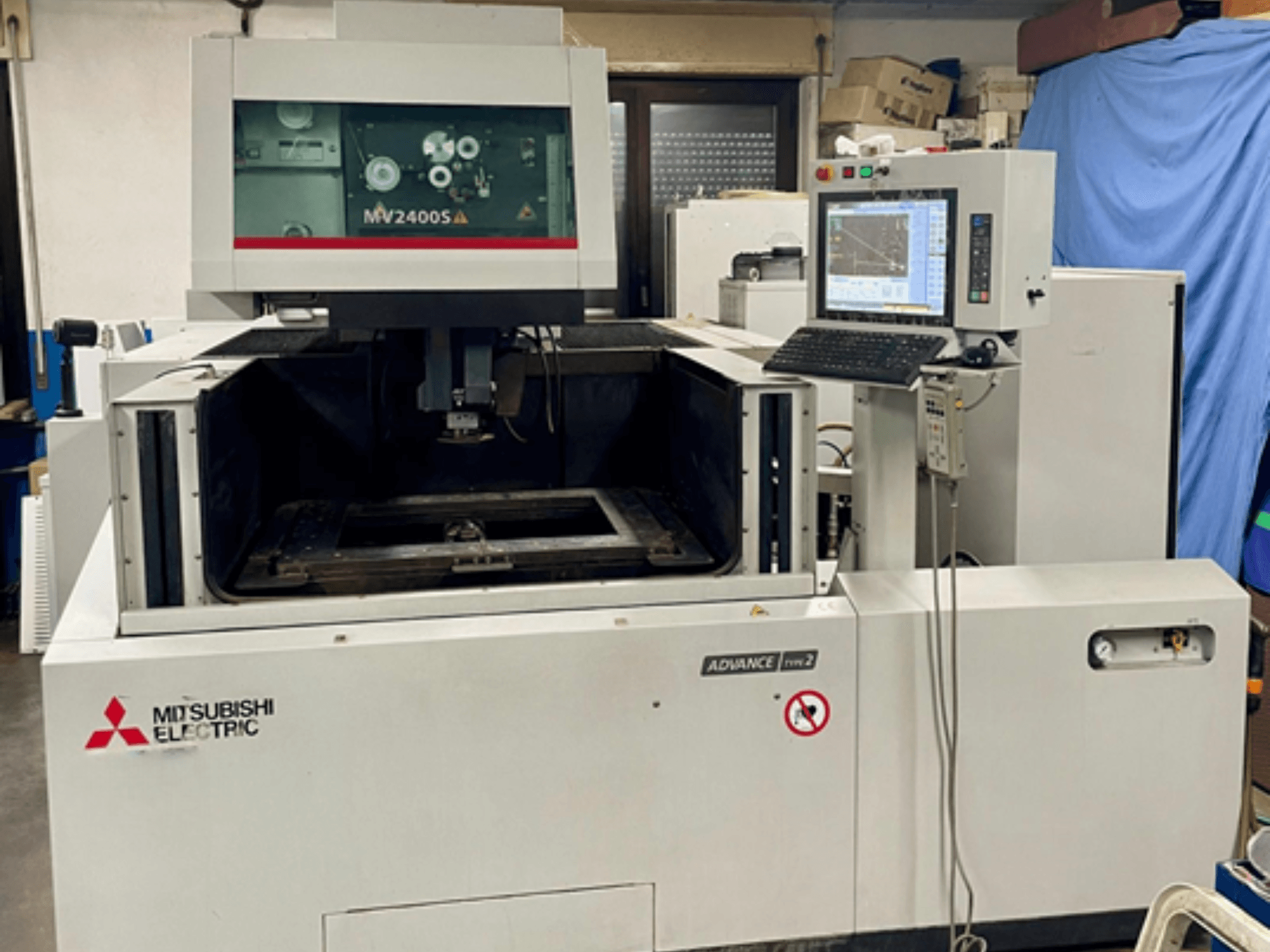

This 3-axis Mitsubishi MV 2400S wire EDM machine was manufactured in 2015. It features an X-axis travel of 600 mm, Y-axis travel of 400 mm, and Z-axis travel of 310 mm. The machine can accommodate workpieces up to 1,050 mm in length and 820 mm in width, with a maximum weight of 1,500 kg. If you are looking to get high-quality wire EDM capabilities, consider the Mitsubishi MV 2400S machine we have for sale. Contact us for further details.
Overview
- brand: Mitsubishi
- year: 2015
- MODEL: MV 2400S
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi MV 2400S
Control Unit
- Control Brand: MITSUBISHI
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Additional Information
Maximum workpiece length: 1,050 mm
Maximum workpiece width: 820 mm
Maximum workpiece height: 305 mm
Maximum workpiece weight: 1,500 kg
Tank length: 1,050 mm
Tank width: 820 mm
Tank height: 305 mm
Automatic wire threading: Yes
Additional equipment
Wire feeder with enlarged 25 kg spool
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
