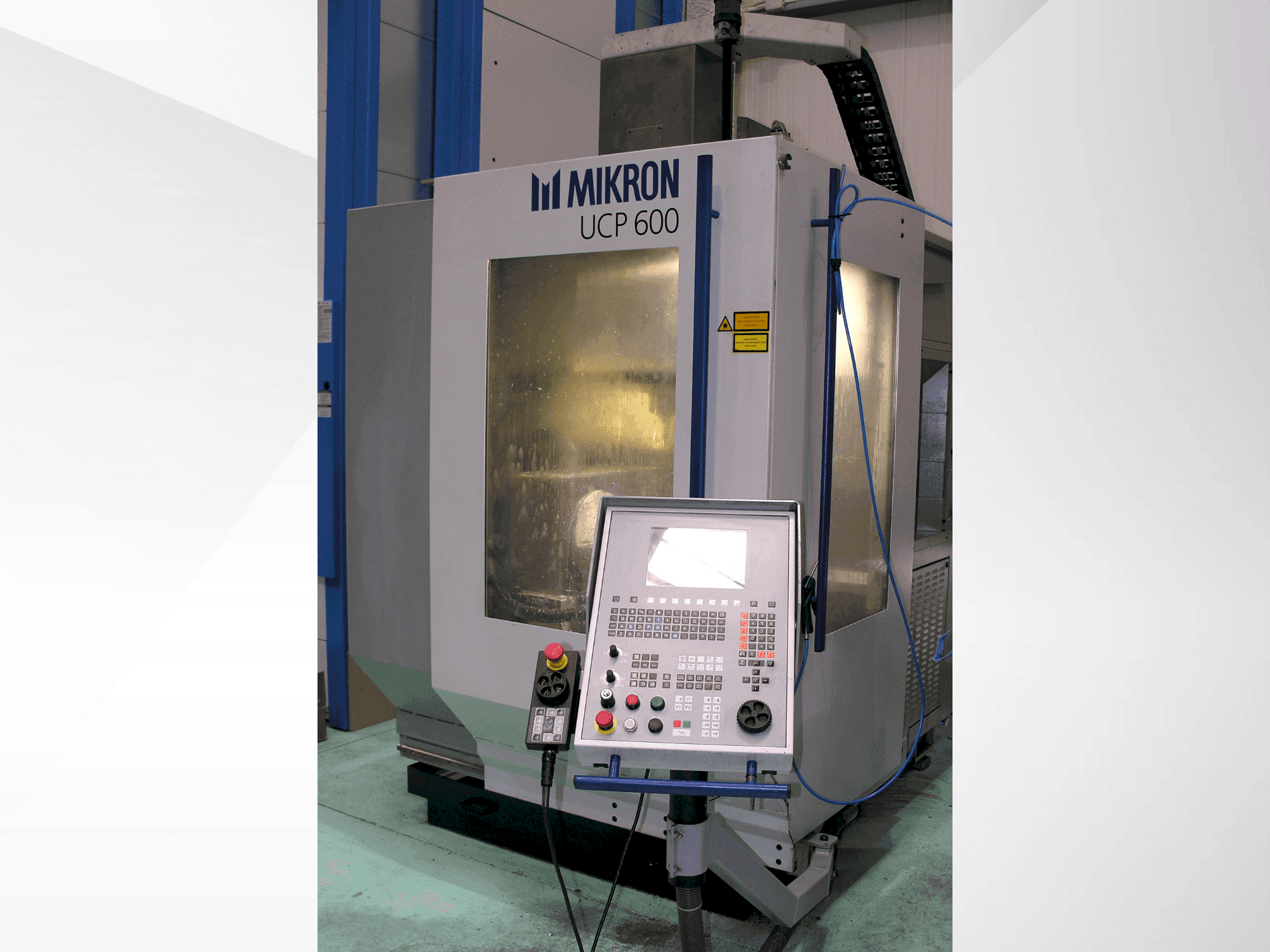

Front view of MIKRON UCP 600  machine

MIKRON - UCP 600ES-MIL-MIK-2000-00001

£ 32,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis MIKRON UCP 600 vertical machining center was manufactured in 2000. It features a spindle speed of 42,000 rpm, a spindle power of 14 kW, and a rapid feed rate of 22 m/min. The machine includes a Heidenhain 430M CNC, Renishaw OMP 40 probe, and can handle a maximum table load of 200 kg. Ideal for complex and precise machining tasks, the MIKRON UCP 600 machine we have for sale is well-maintained and upgraded. Contact us for further details.

Overview

  • brand: MIKRON
  • year: 2000
  • MODEL: UCP 600
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - MIKRON UCP 600

Control Unit

  • Brand: Heidenhain
  • Model: 430M

Main drive

  • Spindle speed range: 42,000 1/MIN
  • Spindle motor power: 14 kw
  • Tool taper: HSK E-40

Movement

  • X-AXIS Movement: 530 mm
  • X-AXIS Working Feed: 15 m/min
  • X-AXIS Feed Force: 22 m/min
  • Y-AXIS Movement: 450 mm
  • Y-AXIS Working Feed: 15 m/min
  • Y-AXIS Feed Force: 22 m/min
  • Z-AXIS Movement: 450 mm
  • Z-AXIS Working Feed: 15 m/min
  • Z-AXIS Feed Force: 22 m/min

Table

  • Table load: Max 200kg

Tools

  • Slots in storage: 36
  • Max tool diameter: 16 mm

    Additional Equipment

    • - Workpiece Measurement Probe: Renishaw OMP 40
    • - Workpiece Breakage Probe: BLUM (included but not installed)
    • - Thermal cones, collet chucks, and Franken PGR holders
    • - Custom-made post-processor for Mastercam with direct machine simulation

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tool change time: 5 seconds
        • - Cradle rotation: -15º to 122º
        • - Table diameter: 280 mm
      • Qualitative Machine Benefits:
        • - Upgrades made to enhance the machine's precision, including a lubricated bushing on the cradle support, the spindle has been serviced with new bearings, tie rods, etc. , the bellows are brand new, and components that were worn out from use have been replaced
        • - The original support was directly on cast iron, which tended to seize up

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
