➤ Used MicroStep SPL-P 4501.25 For Sale | gindumac.com

Show in original language

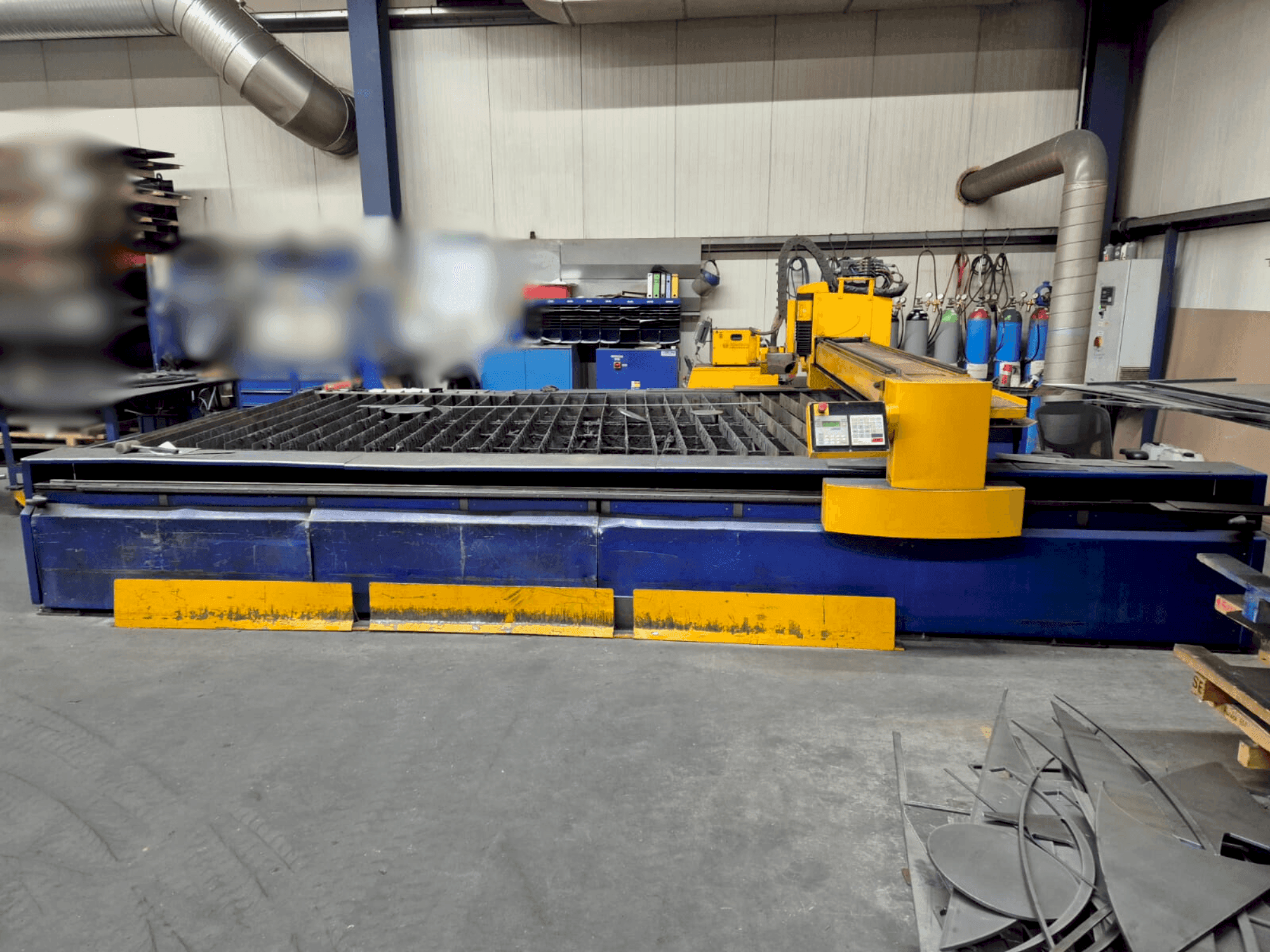

This plasma cutting machine was manufactured in 2008. It features a CNC control MSNC500P Windows and a plasma source with a cutting range of 0.5 to 25/30mm, adjustable from 10 to 160 A for cutting. The flame cutting table measures 4500x2000mm, suitable for both plasma and oxyfuel cutting. It operates efficiently within a temperature range of +5 to +45 °C. Consider the opportunity to buy this MicroStep SPL-P 4501.25 plasma cutting machine. Contact us for more information about this machine.

Overview

brand: MicroStep
year: 2008
MODEL: SPL-P 4501.25
production hours: 22560
application type: Cutting
Location: Germany
machine type: Plasma Cutting Machine

Technical Information - MicroStep SPL-P 4501.25

General Data

Measurements width: 540 MM
Measurements depth: 960 MM
Measurements height: 1050 MM
Machine weight: 196 KG

Table

Outer length: 4500 mm
Outer width: 2000 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Cnc control: msnc500p windows
Plasma source cutting range: 0. 5 to 25/30mm (up to 50mm st-material separating cut)
Plasma source power: continuously adjustable from 10 to 160 a (cutting) and 4 to 25 a (marking)
Connected load: 38 kva
For plasma and oxyfuel cutting of sheet metal up to 100mm thickness
For plasma and oxyfuel cutting of sheet metal up to a material thickness of 100mm in a total length of 4500mm, section width 500mm, suction channel diameter 280mm
Overall dimensions: 6100x3384mm
Working temperature: +5 to +45 °c
Max. Humidity: 90% (at 20°c)
Power input: max. Kva 3 kw (230v, 50hz, 16a)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
