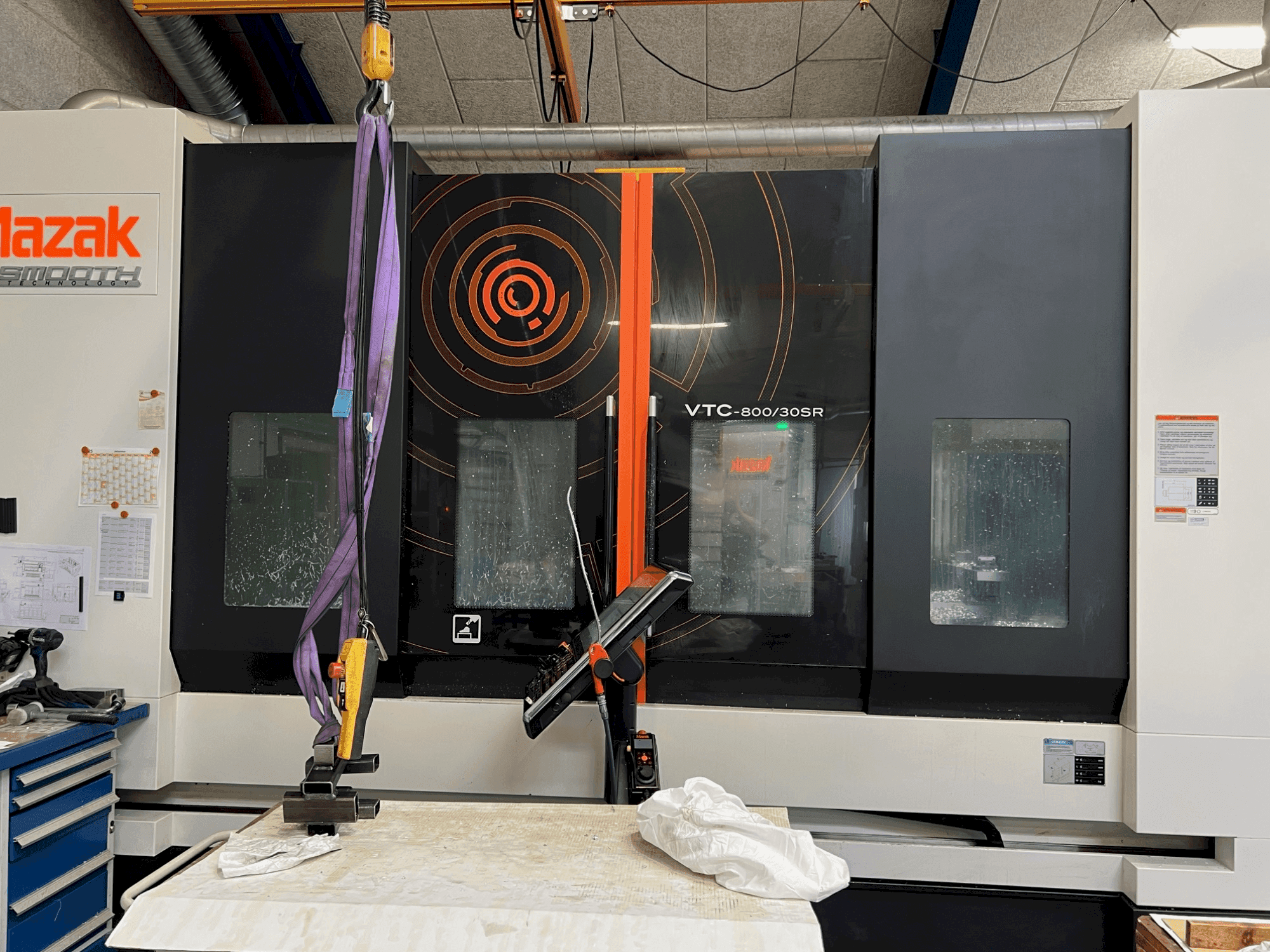

Mazak - VTC 800/30SRDK-MIL-MAZ-2018-00001

Additional Equipment

• - Workpiece air blast / Air through spindle in running / High pressure coolant system (Europe) / Preparation for chip conveyor (right) Chip conveyor right hand Mayfran / Mazak monitoring system B (RMP60) / Manual pulse generator 1 (detachable) / Ethernet operation function / Signal tower (3 colors lights)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 48 tool magazine/ renishaw ts27r on lhs (mma+akb+8f) / auto pecking cycle with load detection / bysynchronized tapping / 5-axis machining package for smooth-x
  • - Nc rotary table (360000 positions) ds50c-r1-z
  • - 5th axis rotary operation / 5-axis / b1500 slope constant / bicyclical interpolation
  • - Axis travel : saddle (longitudinal) x-axis: 3,000 mm / column (cross) y-axis: 820 mm / spindle head (vertical travel) z-axis: 720 mm / spindle head rotation (b-axis): deg. ±110 / c-axis (rotary table): 360,000 positions (via nc rotary table ds50c-r1-z)
  • - Spindle taper hole: 7/24 taper, no. 40 / spindle speed maximum (standard): 18,000 min⁻¹
  • - Table length dimension: 3,500 mm / table width dimension: 820 mm / table loading capacity: 2,500 kgf
  • - Tool storage capacity (option): 48 tools
  • - Machine height (from floor level): 3,356 mm / machine width: 5,250 mm / machine depth: 4,046 mm / machine weight: 16,300 kgf
• Qualitative Machine Benefits:
  • - Factory and local options including: additional work light / coolant gun / engraving/macro (meg 8k) / grundfos pump 30 bar

Payment Terms

• Payment in advance

• Asset Financing
