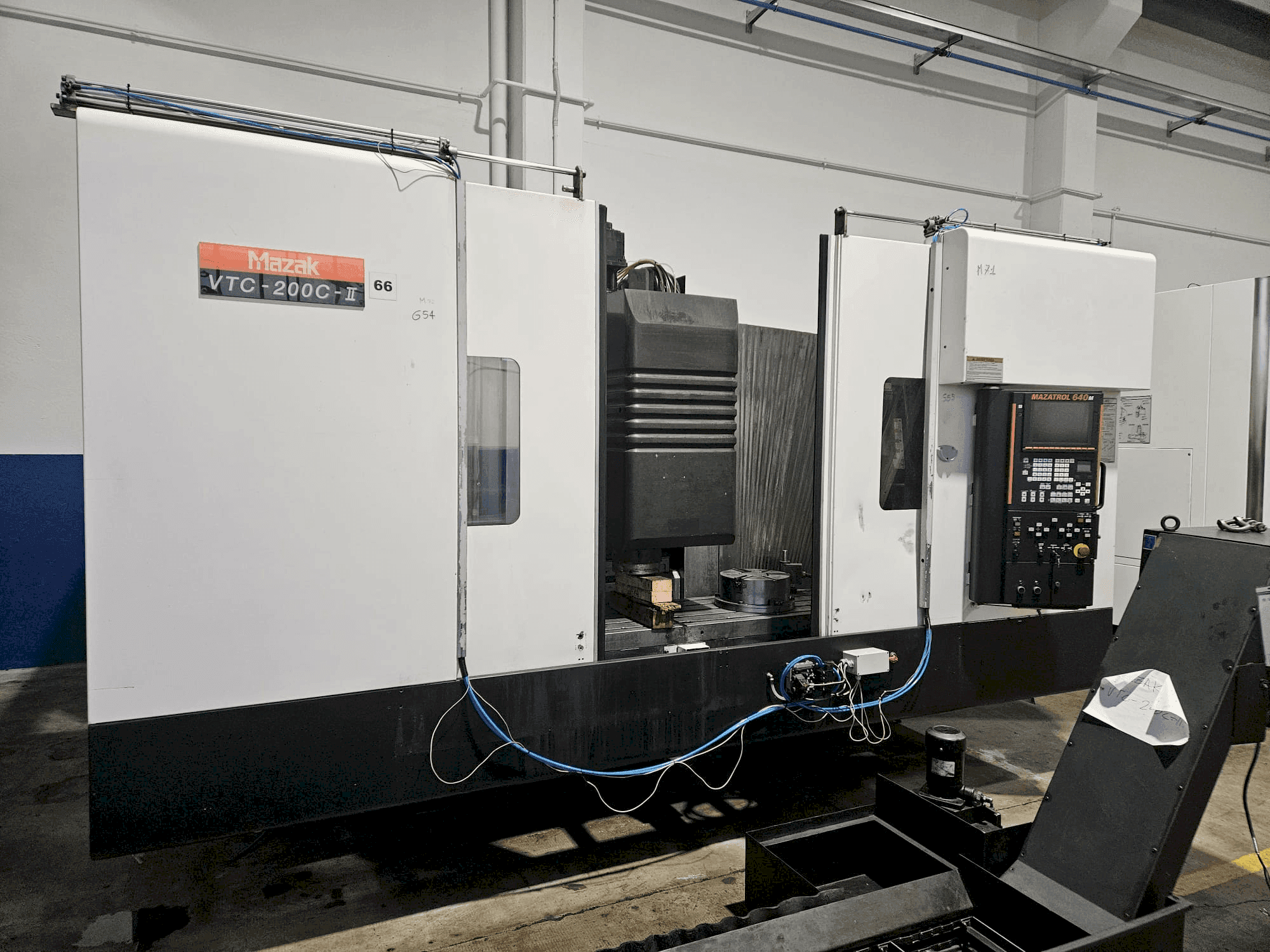

Front view of Mazak VTC 200 C II machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VTC 200 C II

Photo Gallery

Mazak - VTC 200 C IIIT-MIL-MAZ-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MAZAK VTC-200C-II | Vertical machining centre

Show in original language

This 3-axis MAZAK VTC-200C-II was manufactured in 2014. A vertical machining centre featuring a Mazatrol Fusion 640 M CNC control, with X, Y, and Z axis travels of 1660mm, 510mm, and 510mm respectively. It boasts a spindle speed of up to 12,000 rpm and a spindle motor power of 18.5 kW. The machine includes a tool magazine for 30 tools and is equipped with a high-pressure pump of 15 bar, enhancing its operational efficiency. Contact us for further details.

Overview

brand: Mazak
year: 2014
MODEL: VTC 200 C II
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC 200 C II

General Data

Measurements width: 3145 mm
Measurements depth: 4525 mm
Measurements height: 2759 mm
Machine weight: 8200 kg

Control Unit

Model: Mazatrol Fusion 640 M
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Tool taper: ISO 40
Number of axis: 3

Movement

X-AXIS Movement: 1660 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 2000 mm
Outer width: 510 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes

Additional Equipment

- Machine Specific Data
- Central bulkhead for pendulum work
- External robot/automation interface
- Automatic doors
- Remote flyer
- Right side chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 95 nm
- - High spindle speed and power, automation compatibility, high-pressure coolant system
- - Tool magazine for 30 tools

Extra information

- machine manuals, part lists, CNC in digital and paper format, Original CE certification

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
