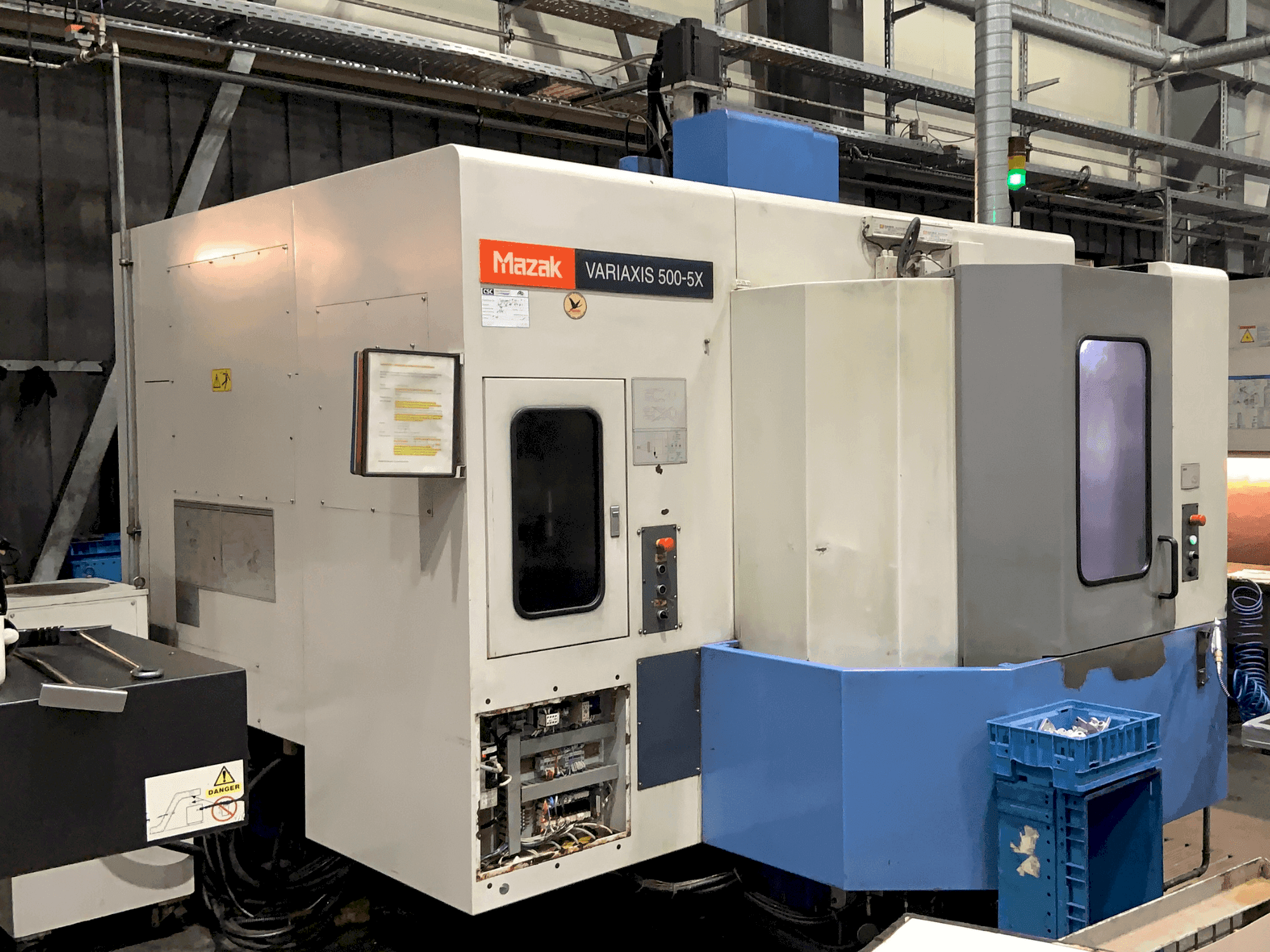

Front view of Mazak VARIAXIS 500 5X  machine

Mazak - VARIAXIS 500 5XDE-MIL-MAZ-2003-00001

£ 28,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Mazak VARIAXIS 500 5X vertical machining centre was manufactured in 2003. It features a robust table size of 400 x 400 mm, capable of handling a load up to 300 kg. The spindle operates at a speed range of 35-12,000 min-1 with a maximum torque of 99Nm. It includes a 40-place tool magazine and a high-capacity 300l coolant system. Ideal for complex machining tasks. For more information about this vertical machining centre, please reach out to us.

Overview

  • brand: Mazak
  • year: 2003
  • MODEL: VARIAXIS 500 5X
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - Mazak VARIAXIS 500 5X

Main drive

  • Spindle speed range: 12000 rpm 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 510 mm
  • X-AXIS Feed Force: 50000 mm/min
  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Movement: 510 mm
  • Y-AXIS Feed Force: 50000 mm/min
  • Y-AXIS Rapid traverse: 50 m/min
  • Z-AXIS Movement: 460 mm
  • Z-AXIS Feed Force: 50000 mm/min
  • Z-AXIS Rapid traverse: 50 m/min
  • A-AXIS Movement: -120° to +30° MM
  • C-AXIS Movement: 360° MM

Table

  • Outer length: 400 mm
  • Outer width: 400 mm
  • Table load: 300 kg

Tools

  • Max weight: 8 kg
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm

    Additional Equipment

    • - Tank 300l, flow rate at the pump approx. 15 l/min, pressure approx. 0.9 bar

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 5 x 18mm t-slots, 80mm spacing
        • - Table height from floor: 800 mm
        • - Tool change time 4. 5s
        • - Workpiece dimensions max. : 500 x 405 mm
        • - Spindle nose to table: 190-650 mm
        • - Front of column to centre of spindle: 140-600 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
