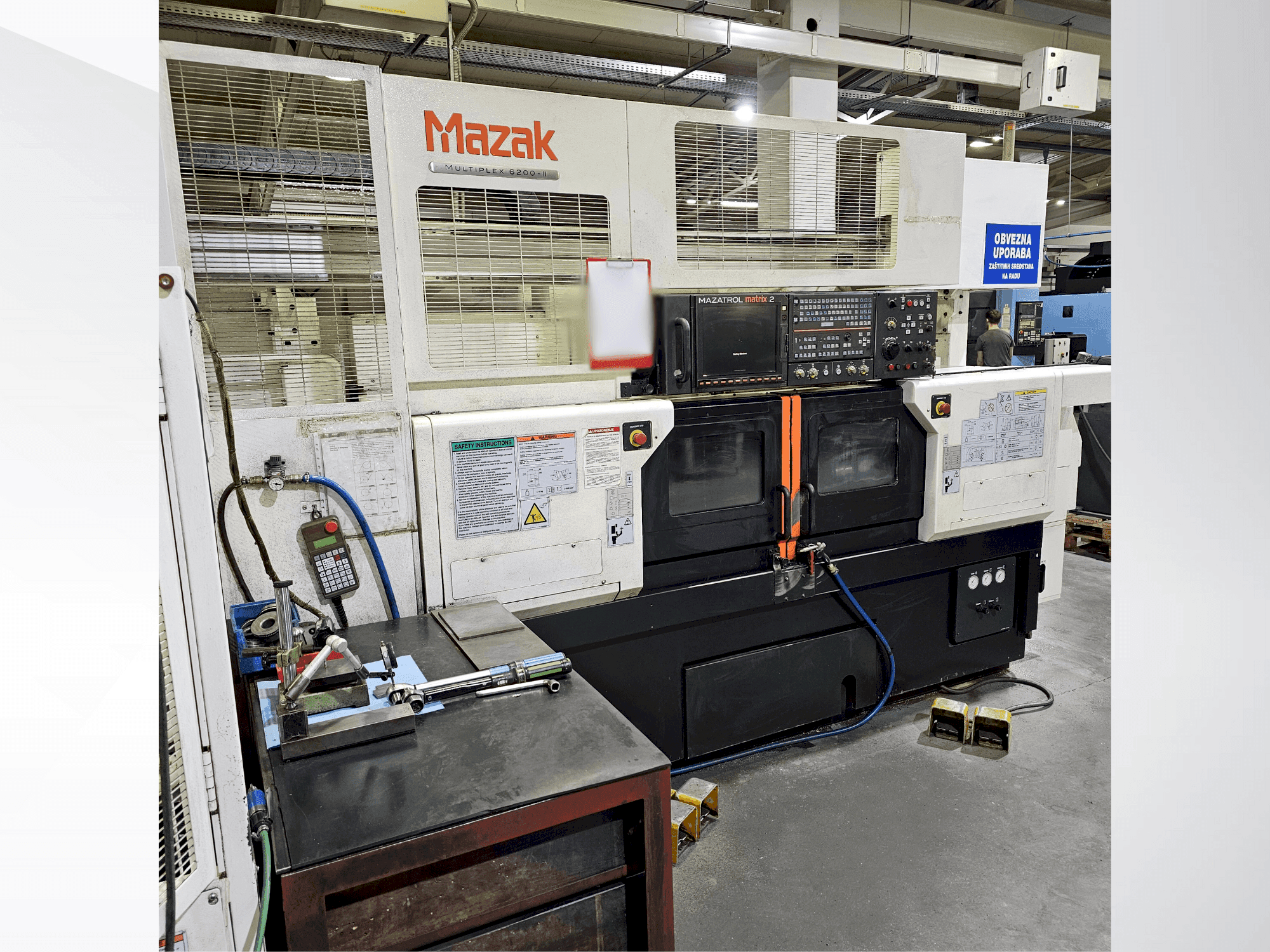

This 5-axis Mazak Multiplex 6200II multi-spindle turning machine was manufactured in 2011. It features dual spindles with a maximum speed of 5000 RPM and dual turrets, each supporting 12 tools. The machine offers a chuck size of 320 mm and a maximum machining diameter of 1190 mm. If you are looking to get high-quality turning capabilities, consider the Mazak Multiplex 6200II machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Mazak
- year: 2011
- MODEL: Multiplex 6200II
- application type: Turning
- Location: Croatia
- machine type: Multi-Spindle Turning Machine
- control unit brand: MAZATROL
Technical Information - Mazak Multiplex 6200II
Control Unit
- Control Brand: MAZATROL
Movement
- Number of Axes: 5
- X-axis Travel: 240 mm
- Y-axis Travel: 51 mm
Technical Specification
- Max. Workpiece Diameter: 1190 mm
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Coolant pump: 0. 10 kw x 2
- Power requirement: 60. 3 kva
- Air pressure: 0. 5 mpa, 400 l/min
- Coolant tank capacity: 220 l
Technical Machine Benefits
- Chuck size: 320 mm
- Distance between spindles (home position): 260 mm
- Distance between spindles (home position): 260 mm
- Tool shank height: 25 mm
- Boring bar diameter: 40 mm
- Turret indexing time: 0. 2 seconds per step
- Rotary tool speed: 4500 rpm (optional: 6000 rpm)
- Drilling capacity: 20 mm
- Milling capacity: 20 mm
- Tapping capacity: m12
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
