Mazak - HCN-5000IT-MIL-MAZ-2024-00001

£ 179,957
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

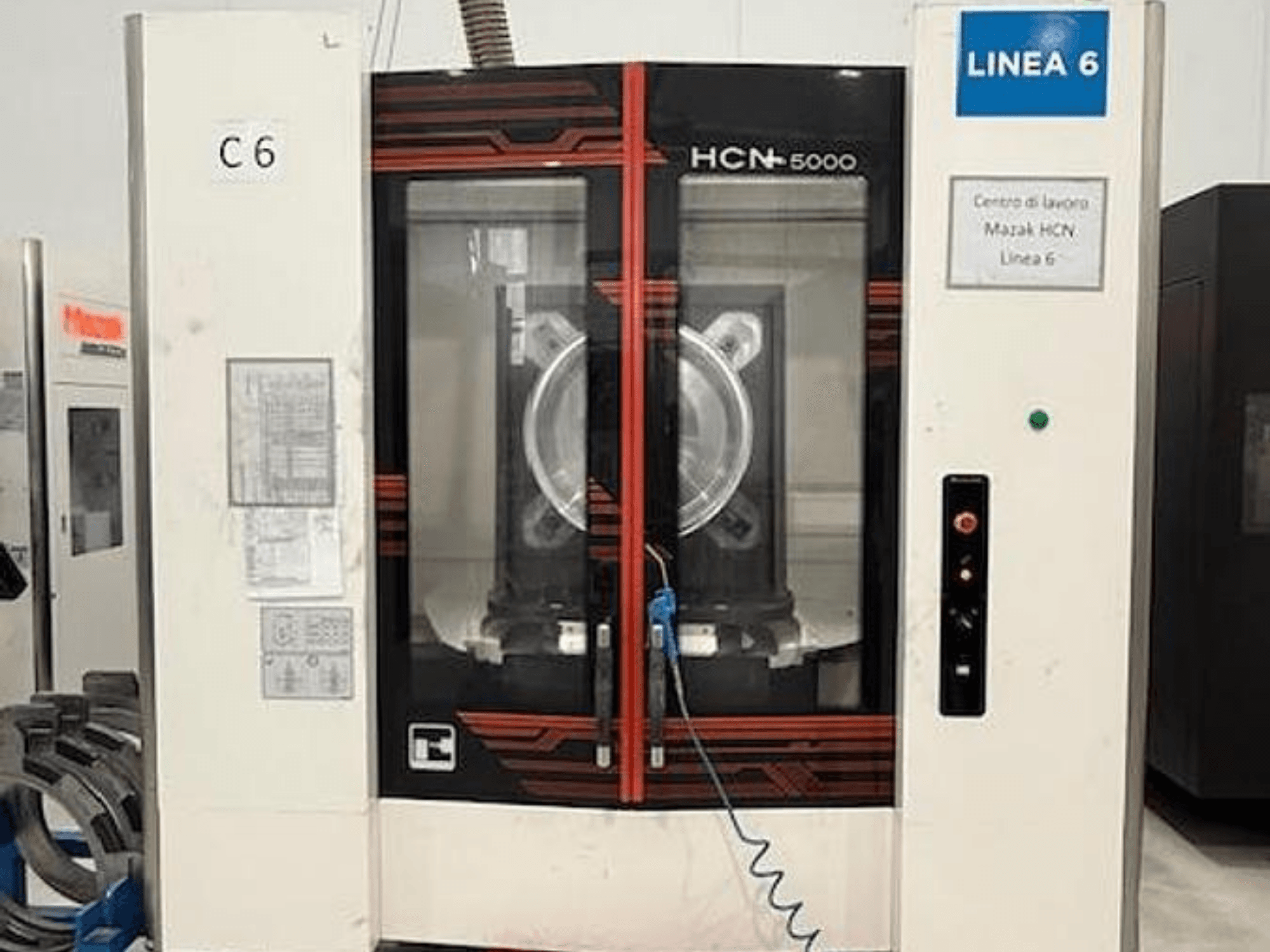

This 4-axis Mazak HCN-5000 was manufactured in 2024. It features an X-axis travel of 730 mm, Y-axis travel of 730 mm, and Z-axis travel of 800 mm. The machine has a maximum workpiece weight of 700 kg and a spindle speed of 18,000 RPM. If you are looking to get high-quality machining capabilities, consider the Mazak HCN-5000 horizontal machining centre we have for sale. Contact us for further details.

Overview

  • brand: Mazak
  • year: 2024
  • MODEL: HCN-5000
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre

Technical Information - Mazak HCN-5000

Dimensions

  • Machine Height: 2813 mm
  • Machine Length: 5769 mm
  • Machine Weight: 11430 kg
  • Machine Width: 2623 mm
  • Table Length: 500 mm
  • Table Width: 500 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 730 mm
  • Y-axis Travel: 730 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Max. Tool Weight: 12 kg
  • Spindle Speed: 18000 RPM
  • Taper Size: ISO 40

Additional Information

  • Quantity/configuration: 5 machines total; identical configuration except tool changer capacity:

    • 3 machines with 40 tools

    • 1 machine with 60 tools

    • 1 machine with 80 tools

  • Control unit: Smooth G

  • Pallet size: 500 x 500 mm

  • Max. workpiece dimensions (L x W x H): D. 800 x 1000 mm

  • Table surface: Tapped holes

  • Max. workpiece weight: 700 kg

  • Rapid traverse (X/Y/Z): 60,000 mm/min

  • Max. tool diameter: D. 95 mm / D. 170 mm

  • Max. tool length: 170 mm

  • Tool selection method: Fixed

  • Tool change time: 2.8 s

  • Coolant pressure: 15 bar

  • Coolant tank capacity: 500 L

Additional equipment

  • Tsubakimoto Mayfran ConSep 2000 chip conveyor/separator

  • Butti chip container

  • Mist collector line setup

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
