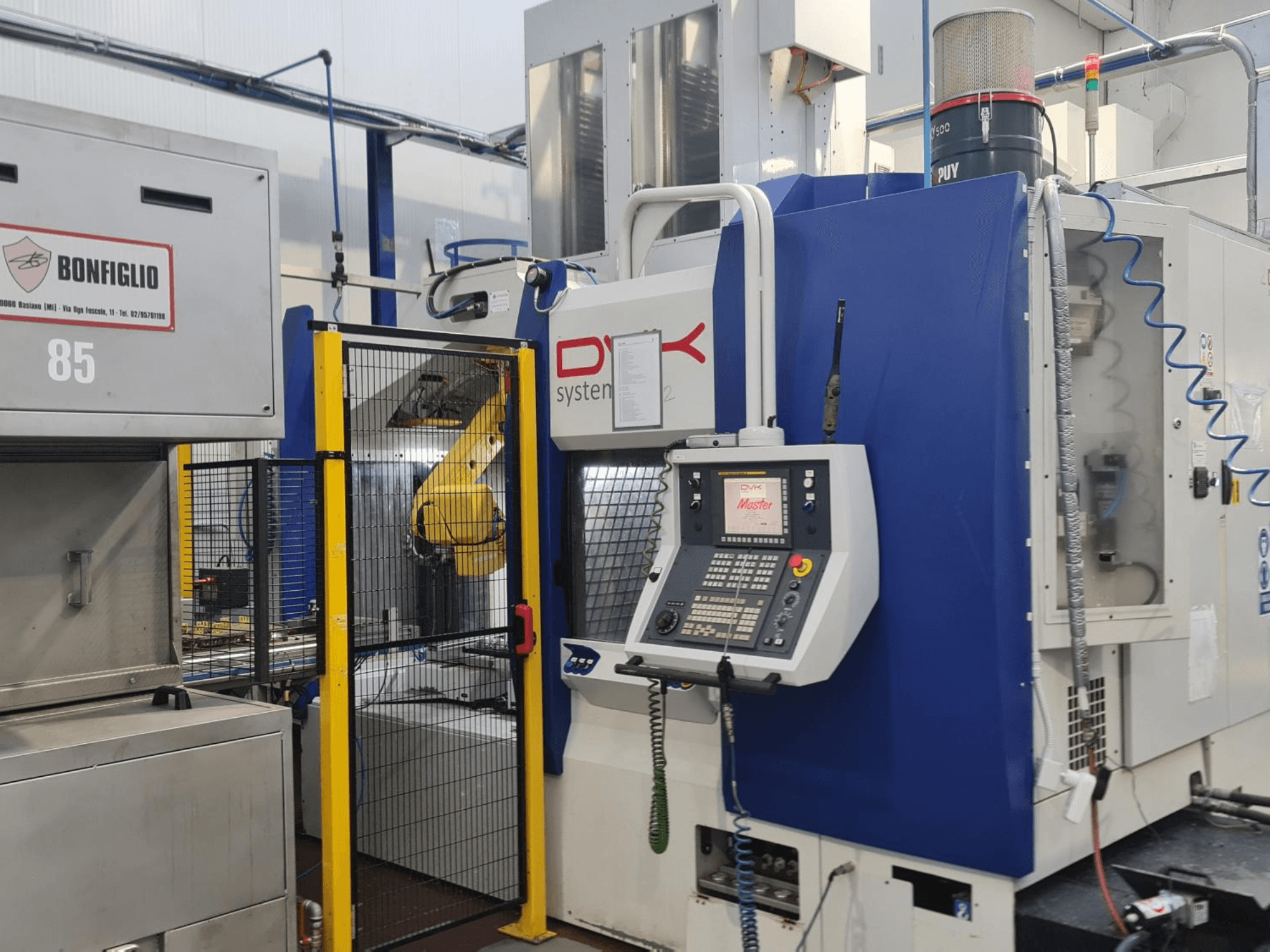

DVK - System Master IT-MIL-OTH-2020-00001

• CNC control: FANUC CNC with 10.4" colour operator panel, PLC, Ethernet connectivity, dedicated machine software

• CE certified

• Working area:

  • Birotational clamping vise axes: A-axis 360° continuous, B-axis 360° continuous

• Spindle:

  • Type: OMLAT electrospindle

  • Torque: 80 Nm

  • Tool interface: HSK-A63

• Tool magazine/ATC:

  • Automatic tool changer

  • Max tool diameter: 70 mm (150 mm with adjacent pockets free)

  • Random tool selection

• Clamping system:

  • Self-centering birotational hydraulic vise

  • Jaw stroke: 50 mm

  • Clamping force: 5,000–30,000 N

• Cooling & lubrication and services:

  • Liquid-cooled spindle

  • Centralized automatic grease lubrication

  • Pneumatic system

  • Hydraulic system

  • Air-water heat exchanger

  • Machine pressurization system

• Machine data:

  • Installed power: 55 kW

  • Supply voltage: 400 V / 50 Hz

Additional equipment

• Robot automation:

  • FANUC M20iA/20M anthropomorphic robot, 6 axes, 20 kg payload

  • Schunk PGN125 two-jaw gripper

• Pallet system:

  • Two vertical pallet magazines

  • Pallet size: 480 × 300 mm

  • 54 pallet positions per magazine (standard)

• Chip/coolant and extraction:

  • Internal coolant through spindle

  • 60 µm cartridge filter

  • MAHLE self-cleaning 60 µm filter

  • Rain-type work area washing system

  • Chip conveyor with drag chain and rotofilter

  • Coolant chiller

  • Oil mist extraction system

• Measurement, monitoring and accuracy:

  • Marposs 3D radio probe

  • Laser tool presetter

  • Thermal compensation on X, Y and Z axes

  • Optical scales on X, Y and Z axes

  • Tool life monitoring

  • Extended work coordinate system (48 additional offsets)

  • Artificial vision system with 2 cameras

• Clamping enhancement:

  • Pressure-controlled hydraulic clamping

• Included auxiliary equipment:

  • Bonfiglio MROTOS 8555 4 E LRSA industrial parts washer, robot integrated

  • Automator ADP5090 dot peen marking system with AC500 controller, robot integrated:

    • Marking area: 50 × 90 mm

    • Pneumatic marking head

    • Connectivity: Ethernet / USB / RS232 / RS485

    • Touch-screen AC500 controller

    • Marking speed up to 10 characters/second

• Additional Machine Information:

  • The machine has recently been fully serviced/revised by the manufacturer.

  • The spindle was also included in the recent manufacturer service.

  • The machine has always been used for machining aluminium.

  • The machine is currently not in production due to a change in the type of parts being manufactured.
