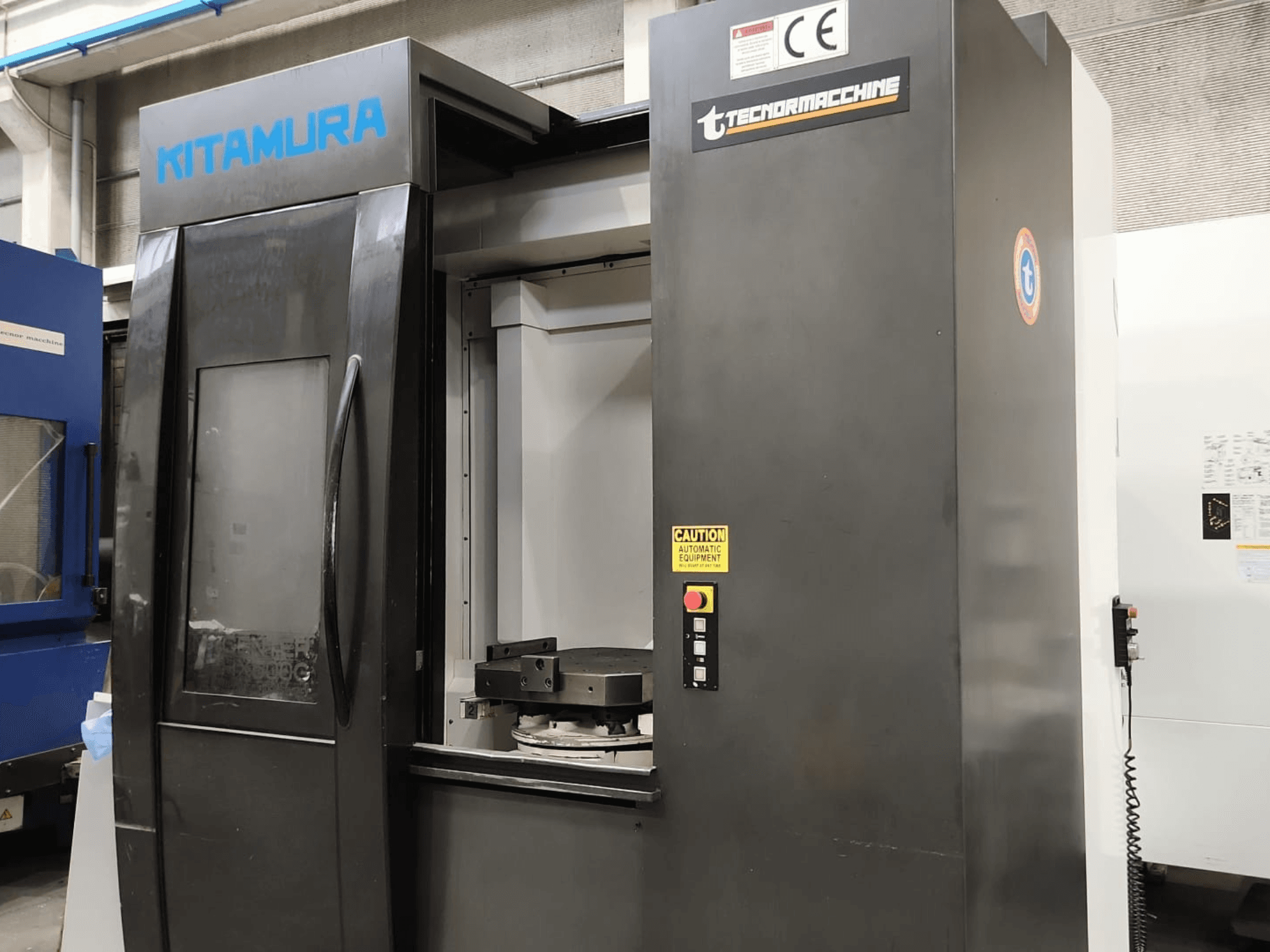

Kitamura - Mycenter HX500iGIT-MIL-KIT-2015-00001

• CNC controller: Arumatik-Mi

• Pallet size: 500 x 500 mm (19.7" x 19.7")

• Number of pallets: 2

• Pallet change time: 8.8 s

• Max. workpiece diameter: Ø 800 mm (Ø 31.5")

• Max. workpiece height: 1,100 mm (43.3")

• B-axis travel: 0–360° (full 4th axis, DD motor driven)

• B-axis rapid feed: 43,200 deg/min (120 rpm)

• Table surface to spindle center: 50–850 mm (2.0"–33.5")

• Table center to spindle nose: 140–1,070 mm (5.5"–42.1")

• Drive method: Gear drive, 4-step

• Max. spindle torque: 266.4 N·m (196.5 ft-lbs)

• Spindle motor: 22 kW (30 HP AC / 15 min) / 15 kW (20 HP AC / continuous)

• Rapid feedrate (X/Y/Z): 60 m/min (2,362 ipm)

• Cutting feedrate (X/Y/Z): 60 m/min (2,362 ipm)

• Tool storage capacity: 50 tools (fixed pot, random bidirectional)

• Tool holder style: CT(BT) 40 / HSK-A63 optional

• Max. tool diameter: Ø 95 mm (3.7") / Ø 170 mm (6.7") with adjacent pot empty

• Max. tool length: 600 mm (23.6")

• Tool-to-tool change time: 1.3 s

• Chip-to-chip change time: 3.8 s minimum

• Linear scales: Fine-resolution optical feedback on X/Y/Z

• Rotary scale: Direct high-resolution (0.02 sec) rotary encoder feedback on B-axis

• Thermal displacement control: Intelligent advanced control system

• Coolant tank volume: 700 liters

• Power requirement: 55 kVA, 200V AC, 3-phase

• Air requirement: 0.5 MPa, 410 L/min (90 psi, 14 cfm)

Additional equipment

• Through-spindle coolant: High-pressure internal coolant system at 20 bar (RCM 20 bar)

• Chip conveyor: Scraping / double-decker type

• Work area tool sensor: Renishaw tool presence transmitter/laser inside working area
