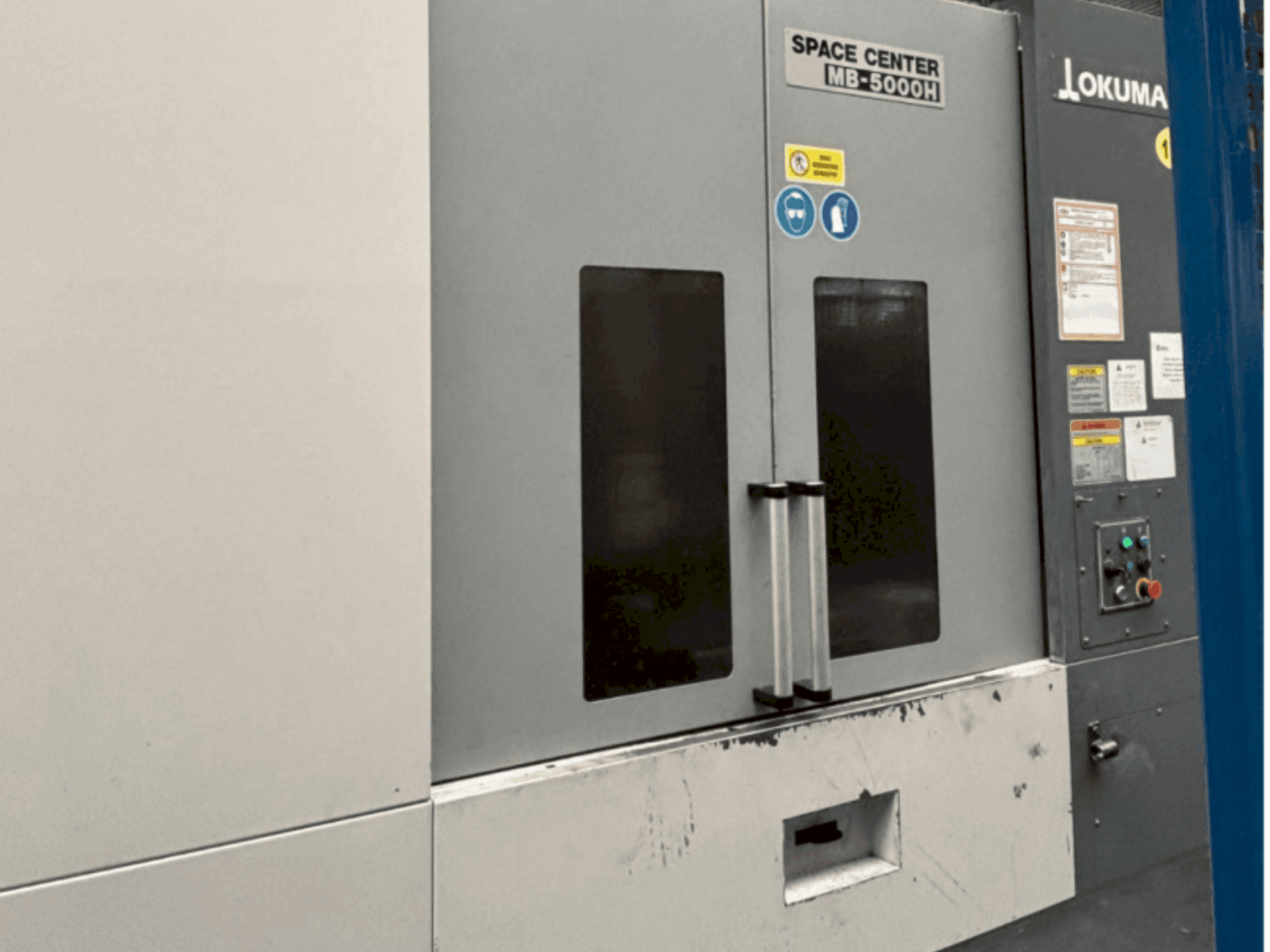

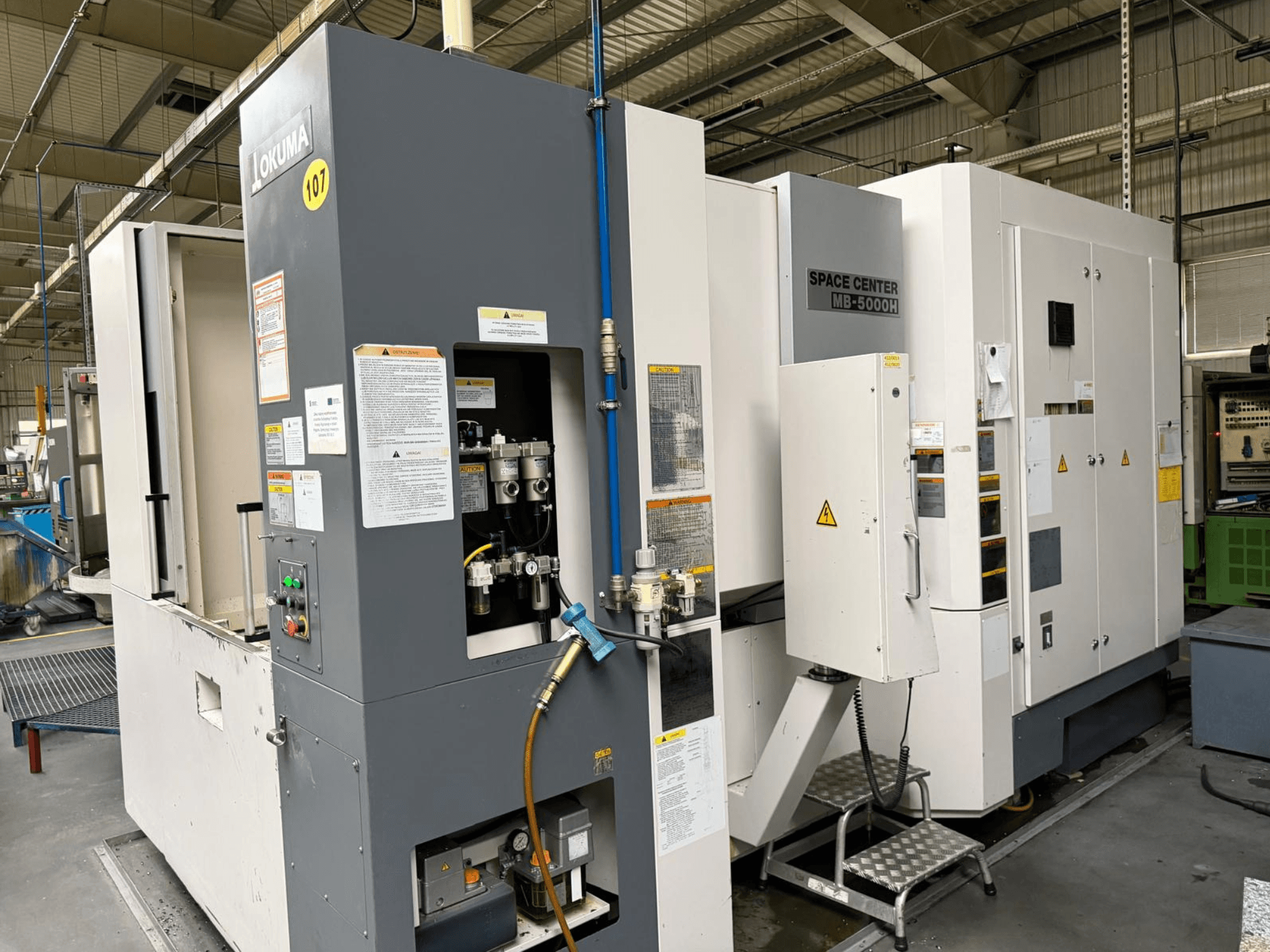

This 4-axis Okuma MB 5000H was manufactured in 2010. It features a robust 500 × 500 mm pallet, capable of handling a maximum load of 500 kg, and offers a comprehensive range of movements with 760 mm travel in X, Y, and Z axes. Equipped with a high-speed spindle up to 15,000 min⁻¹ and a 64-tool magazine, this horizontal machining centre is ideal for complex machining tasks. Contact us for more information about this machine.
Overview
- brand: Okuma
- year: 2010
- MODEL: MB 5000H
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Okuma MB 5000H
Dimensions
- Machine Height: 2864 mm
- Machine Weight: 11500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 760 mm
- Y-axis Travel: 760 mm
- Z-axis Travel: 760 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Speed: 15000 RPM
Additional Information
Spindle center to pallet top: 50–810 mm
Spindle nose to pallet center: 135–895 mm
Table/pallet: 500 × 500 mm; max load 500 kg; indexing 1°
Workpiece capacity: max Ø800 × 1,000 mm
cutting feed 1–60,000 mm/min; table indexing motor 3.0 kW
Tooling: tool shank MAS403/BT40; pull stud MAS 2; magazine 64 tools; random selection
floor space 2,700 × 4,710 mm
Additional equipment
Chip conveyor
Through-spindle coolant (CTS)
Tool presetting at table edge
Provision for Renishaw probe
Shower/washdown system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
