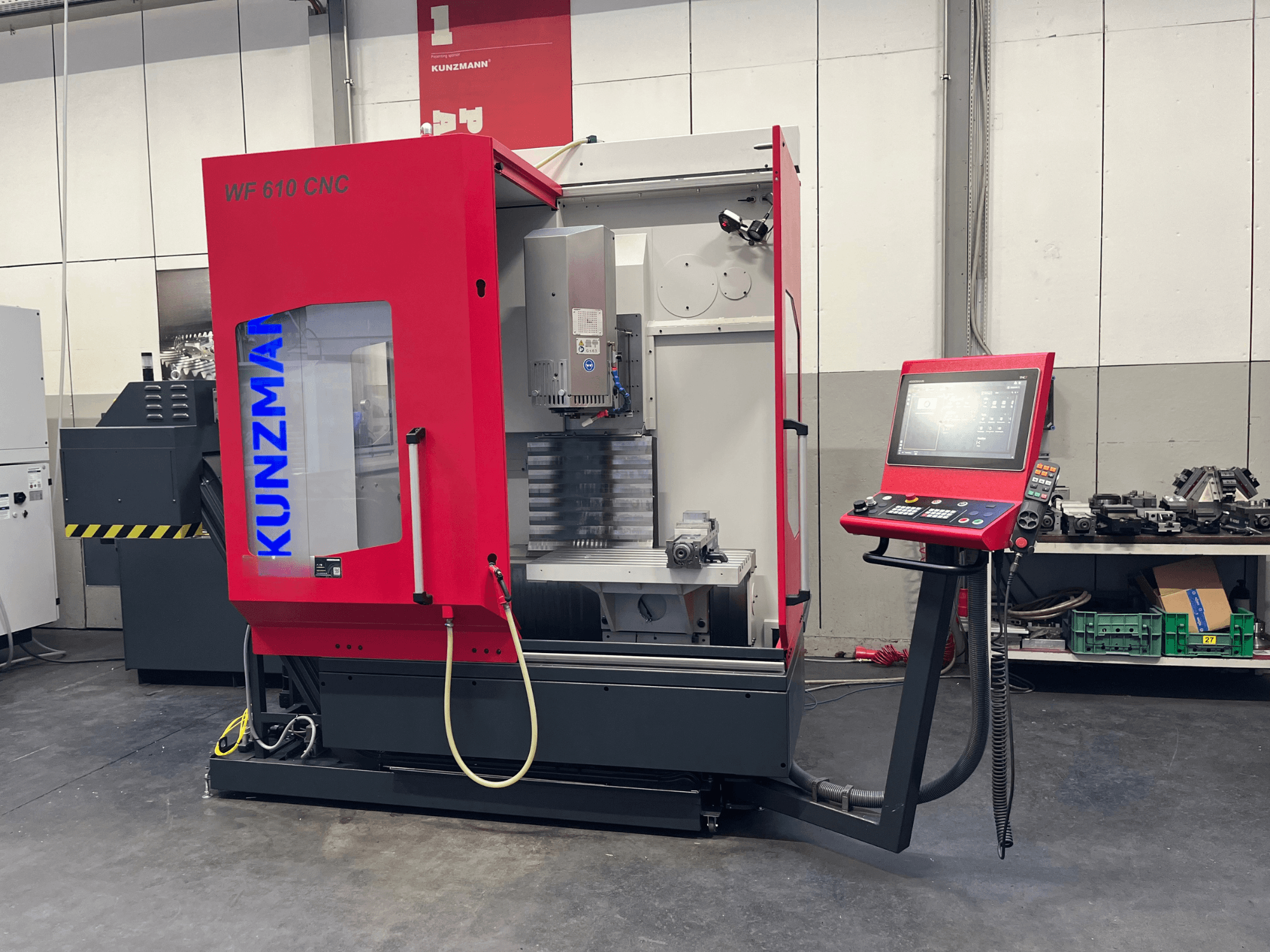

KUNZMANN - WF 610 CNCDE-MIL-KUN-2024-00001

- Demonstration machine

- Spindle Hours: 332 h

- Program Run Hours: 310 h

- Feed Rate (Rapid Traverse): X/Y/Z up to max. 30/30/15 m/min

- Main Drive (Option Installed): SK 40 Motor Spindle, 1 - 12,000 rpm (Swiss made)

- Spindle Power: 8.5 kW (S1-100% ED) / 11.5 kW (S6-40% ED)

- Spindle Torque: 43 Nm (S1-100% ED at 1,880 rpm) / 58 Nm (S6-40% ED at 1,880 rpm)

- Tool Interface: SK 40 DIN ISO 7388-1 Form AD (formerly DIN 69871 AD) with pull stud DIN ISO 7388-3 Form AD (formerly DIN 69872)

- Tool Clamping: Mechanical, clamping force 10,000 N, hydraulic release

- Vertical Milling Head: Direct-driven, manually tiltable -5/+90°, extendable quill with turnstile (stroke 70 mm, clampable)

- Rigid Angle Table Surface: 800 x 425 mm

- Table T-Slots: 6 x 14 H7 (pitch 63 mm)

- Max. Table Load: 300 kg

- Tool Changer: 20-station disc magazine, SK 40

- Max. Tool Diameter: 75 mm (full magazine) / 150 mm (with adjacent empty pots)

- Max. Tool Length: 250 mm

- Max. Tool Weight: 8 kg

- Tool Change Time: approx. 3 s (chip-to-chip approx. 15 s)

- Positioning Accuracy (ISO 230-2): 0.008 mm (direct linear measuring systems)

- Repeatability (ISO 230-2): 0.006 mm (direct linear measuring systems)

- Measuring System: HEIDENHAIN absolute direct linear measuring system (resolution 0.001 mm)

- Coolant Through Spindle (IKZ): 50 bar high-pressure pump (26 l/min), 4-stage pressure adjustment (15/25/40/50 bar), 25 µm double switch filter

- Internal Air Cooling: Through-spindle air cooling, M-function programmable

- External Air Cooling: Flexible articulated hose, M-function programmable

- Paper Band Filter Unit: Trommel-mulden filter with 600 l external tank, type VDF150/50/50 (150 g/m²) filter fleece (dimensions: 1800 x 860 x 1620 mm)

- Chip Conveyor: Hinge-belt conveyor integrated into 115 l coolant tank, 60° incline, lateral discharge left (height 870 / 1060 / 1200 mm)

- Workpiece Probe: HEIDENHAIN TS 460 3D probe (infrared) with SE 661 transceiver

- Additional Axes Preparation: 4th axis preparation (axis controller in electrical cabinet, pre-wired interface)

- Automation Interface: Preparation kit for EDUCATION4.0 Cobot cell (Harting connector I/O interface, pneumatic connection, plus 2x pneumatic table connections max. 6 bar)

- Enclosure Door: Automatic sliding front door driven by belt drive (manual push button & programmable)

- Software Option: OCM (Optimized Contour Milling) for advanced trochoidal milling

- Handwheel: HEIDENHAIN HR 510 FS electronic handwheel with axis selection and emergency stop

- Operating Voltage: 400 V, 50 Hz

- Power Consumption: approx. 21 kVA

- Control Voltage: 24 V - Compressed Air Supply: 6.5 - 10 bar (min. 6.5 bar required at machine)

- Machine Weight: approx. 2,900 kg (with tool changer)
