- ➤ Used Z-YANG V7L Machining Center For Sale | gindumac.com

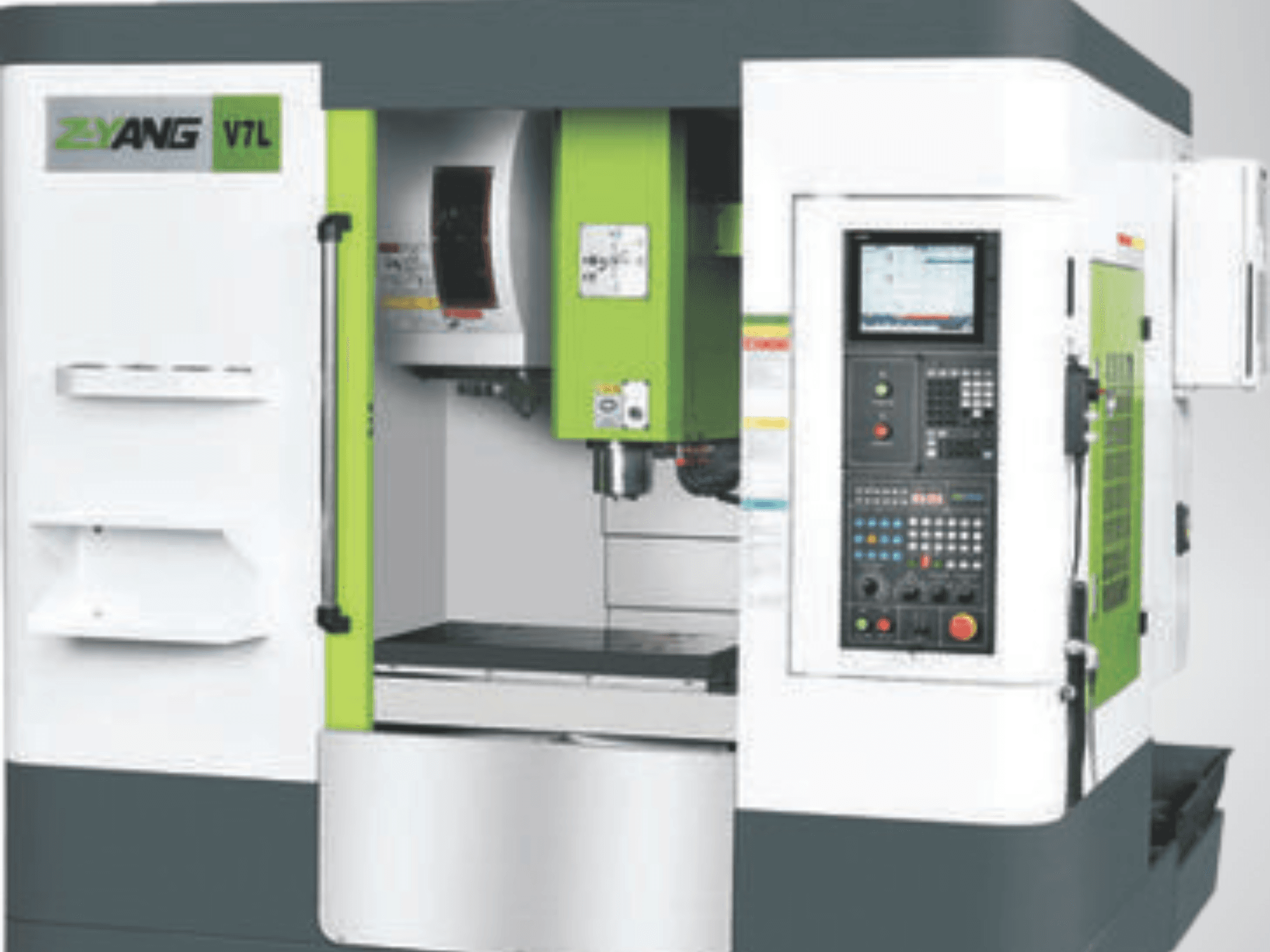

This 4-axis Z-YANG V7L was manufactured in 2021. It features an X-axis travel of 750 mm, Y-axis travel of 430 mm, and Z-axis travel of 530 mm. The machine is equipped with a FANUC Oi MF5 control system, a powerful 11 kW spindle motor, and an automatic tool changer with 24 tools. If you are looking to get high-quality metalworking capabilities, consider the Z-YANG V7L vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Z-YANG
- year: 2021
- MODEL: V7L
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Z-YANG V7L
Control Unit
- Control Brand: FANUC
- Control Model: Oi MF5
Dimensions
- Machine Height: 2850 mm
- Machine Length: 2400 mm
- Machine Weight: 5000 kg
- Machine Width: 2600 mm
- Table Length: 750 mm
- Table Load: 400 kg
- Table Width: 420 mm
Movement
- Number of Axes: 4
- X-axis Travel: 750 mm
- Y-axis Travel: 430 mm
- Z-axis Travel: 530 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 11000 RPM
- Taper Size: BT 40
Additional Information
Automatic Tool Changer: 24 tools
Rapid Traverse: 48 m/min
Feed Rate: up to 15 m/min
Additional equipment
Chip conveyor (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
