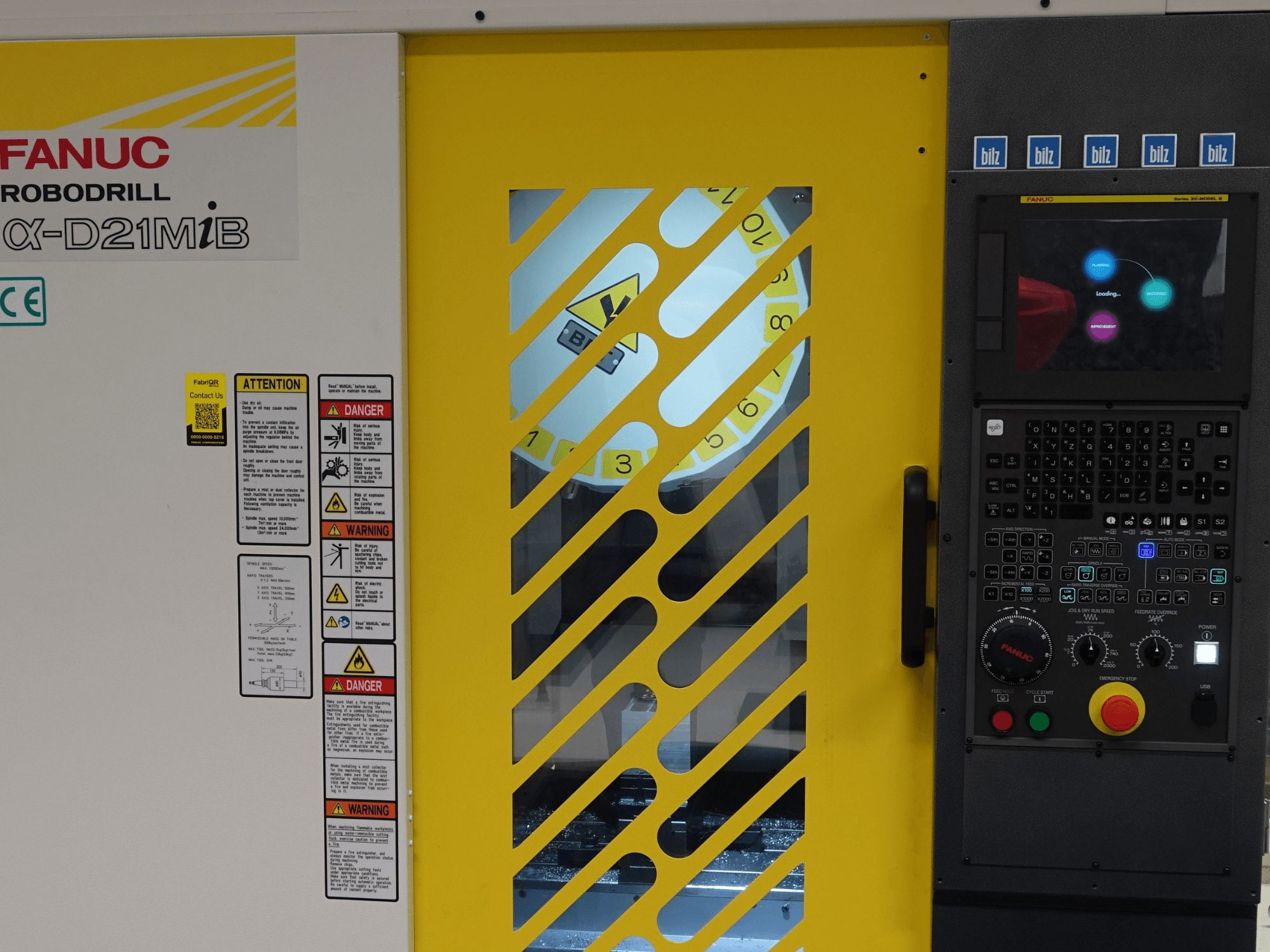

This 3-axis FANUC α-D21MiB was manufactured in 2022. It features a spindle speed of 10,000 rpm and a maximum tool storage capacity of 21 tools. The machine offers impressive X-axis travel of 500 mm, Y-axis travel of 400 mm, and Z-axis travel of 330 mm. If you are looking to get high-quality machining capabilities, consider the FANUC α-D21MiB vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2022
- MODEL: α-D21MiB
- production hours: 22272
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC α-D21MiB
Control Unit
- Control Brand: FANUC
- Control Model: Series 31i-MODEL B
Dimensions
- Machine Weight: 2000 kg
- Table Length: 650 mm
- Table Load: 300 kg
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Spindle Power: 4 kW
- Spindle Speed: 10000 RPM
Additional Information
- Spindle Taper: BBT30
- Spindle Load / Torque (High Torque 10,000 rpm): 80 Nm (1 min), 13.6 Nm (continuous)
- Spindle Load / Power: 14.2 kW (1 min), 4 kW (continuous)
- Z-Axis Travel: 330 mm (+100 mm High Column)
- Distance from Spindle Nose to Table: 250 - 580 mm (with HC100)
- Tool Storage Capacity (ATC): 21 tools
- Tool Change Time (Cut-to-Cut): 1.6 s
- Max. Tool Length: 250 mm
- Max. Tool Diameter: 80 mm
- Max. Tool Mass: 3 kg
- Rapid Traverse (X/Y/Z): 54 m/min
- Programmable Cutting Feedrate: 30,000 mm/min
- Acceleration X/Y/Z: 1.4G / 1.0G / 1.6G
- Positioning Accuracy (Bidirectional): < 0.006 mm
- Repeatability (Bidirectional): < 0.004 mm
- Air Pressure / Flow Consumption: 0.35 - 0.55 MPa / 150 L/min
- Machine Weight: 2,000 kg (2,200 kg with DDR-TiB)
- additional available accessories:
* Transformer 20 kVA/IP23
* High Column 100 mm
* Top Cover High Column Parts HC100
* Festo G3/8" Push-in Fitting 12mm for CTS Sealing
* Festo 12mm Blanking Plug for CTS Sealing
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
