KUNZMANN - WF 650 5AX DE-MIL-KUN-2025-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used KUNZMANN WF 650 5AX For Sale | gindumac.com

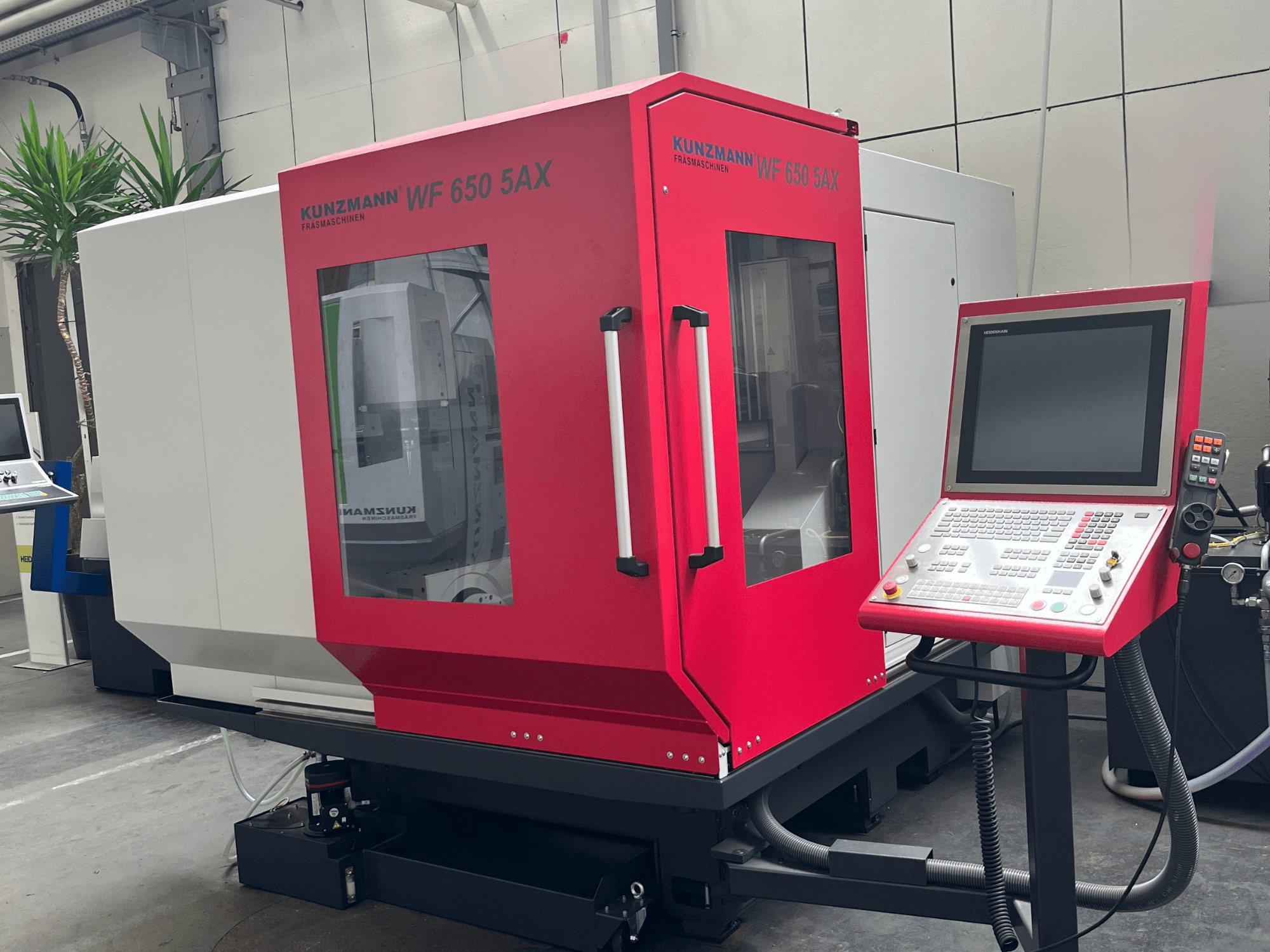

This 5-axis KUNZMANN WF 650 5AX was manufactured in 2025. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 40 tools. The machine has an impressive X-axis travel of 650 mm, Y-axis travel of 500 mm, and Z-axis travel of 450 mm. If you are looking to get high-quality machining capabilities, consider the KUNZMANN WF 650 5AX vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: KUNZMANN
- year: 2025
- MODEL: WF 650 5AX
- production hours: 58
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - KUNZMANN WF 650 5AX
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640 HSCI
Dimensions
- Machine Height: 2900 mm
- Machine Length: 2900 mm
- Machine Weight: 5500 kg
- Machine Width: 2650 mm
- Table Length: 398 mm
- Table Load: 300 kg
- Table Width: 398 mm
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 450 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Positioning Accuracy: 5 µm
- Spindle Power: 22 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
- Through-spindle Coolant: No
- Tool Stations: 40
Additional Information
Control Unit Brand: HEIDENHAIN
Control Unit Model: TNC 640 HSCI
A-Axis Travel: +105° / -120°
C-Axis Travel: ±360°
Table Diameter: 398 mm
Maximum Spindle Speed: 12000 rpm
Tool Magazine Capacity: 40 tools
Rapid Feed X/Y: 25 m/min
Rapid Feed Z: 20 m/min
A-Axis Max. Speed: 25 rpm
C-Axis Max. Speed: 25 rpm
A-Axis Positioning Accuracy: ±5 arcsec
C-Axis Positioning Accuracy: ±5 arcsec
A-Axis Torque: 700 Nm
C-Axis Torque: 450 Nm
Control: HEIDENHAIN Conversational / DIN-ISO Programming
Machine Configuration: CNC Swivel Rotary Table (A/C Axis)
Spindle Cooling: Liquid Cooled Motor Spindle
Operating Hours (Program Run): 58 h
Accessories:
19" Touchscreen
HEIDENHAIN HR 510 FS Electronic Handwheel
Automatic Tool Changer
External Coolant System
Internal Coolant Through Spindle (Optional)
HEIDENHAIN TS460 Probe Preparation
TT460 Tool Measurement Preparation
SE661 Probe Receiver
Extra Information
Showroom Machine
12-Month Warranty
Retrofitting and Commissioning Available on Request (Additional Cost)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
