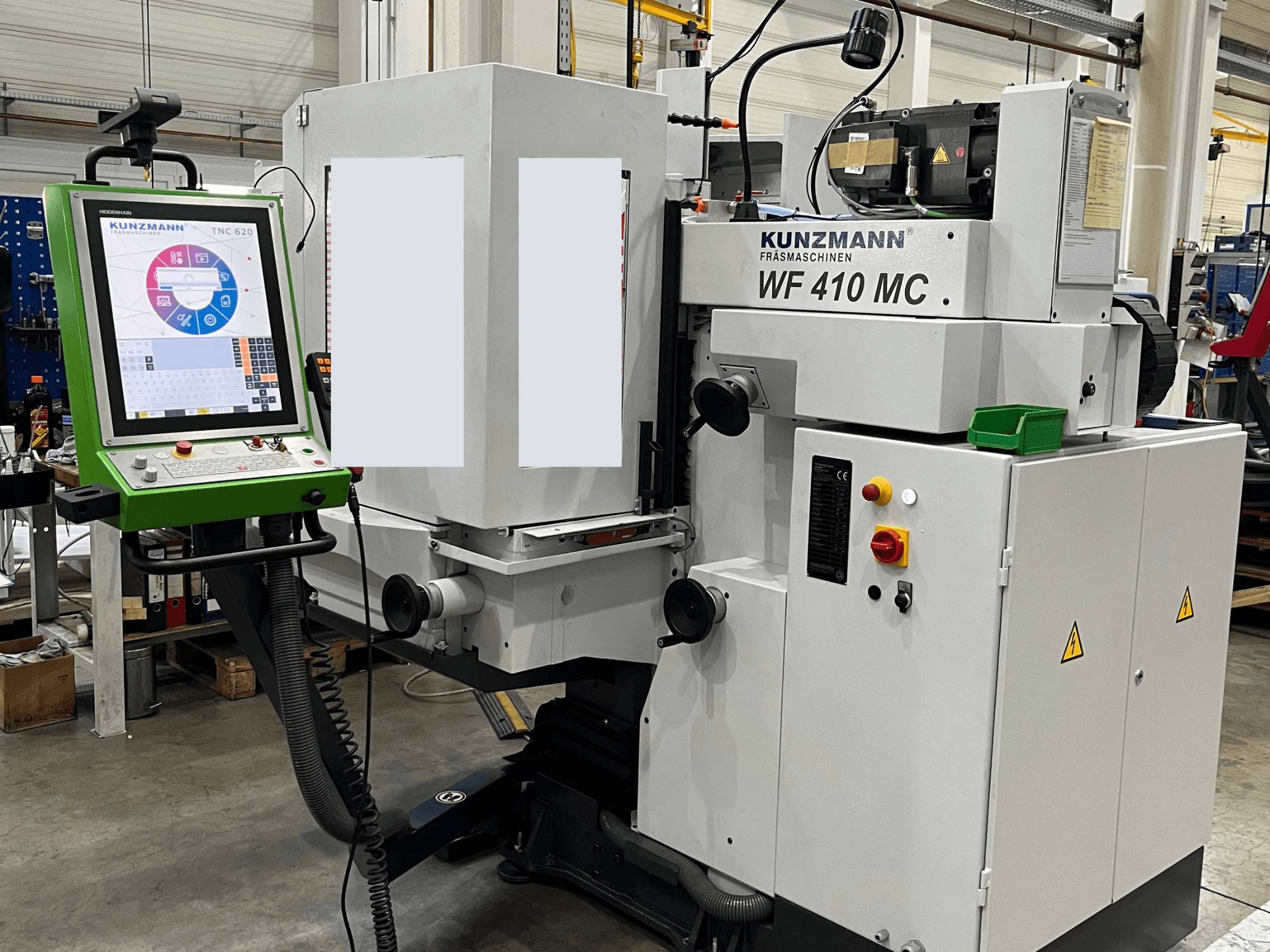

This 3-axis KUNZMANN WF 410 MC was manufactured in 2019. It features an X-axis travel of 410 mm, Y-axis travel of 350 mm, and Z-axis travel of 450 mm. The machine includes a table size of 650 × 375 mm and a maximum table load of 250 kg. If you are looking to get high-quality machining capabilities, consider the KUNZMANN WF 410 MC vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: KUNZMANN
- year: 2019
- MODEL: WF 410 MC
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - KUNZMANN WF 410 MC
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 620 FS
Dimensions
- Machine Weight: 1800 kg
- Table Length: 650 mm
- Table Load: 250 kg
- Table Width: 375 mm
Movement
- Number of Axes: 3
- X-axis Travel: 410 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 450 mm
Technical Specification
- Spindle Power: 6.8 kW
- Spindle Speed: 5000 RPM
- Taper Size: SK 40
Additional Information
Control Unit Brand: HEIDENHAIN
Control Unit Model: TNC 620 FS
Table Size: 650 × 375 mm
Maximum Table Load: 250 kg
Spindle Taper: SK40 DIN ISO 7388-1 Form AD
Maximum Spindle Speed: 5,000 rpm
Spindle Power: 6.8 kW
Rapid Feed X/Y/Z: 5 / 5 / 5 m/min
Quill Stroke: 70 mm
Operating Voltage: 400 V
Mains Frequency: 50 Hz
Number of Phases: 3
Connection Power: 13 kVA
Power Consumption: Approx. 17 kVA
Rated Current: 18 A
Main Fuse: 25 A
Short-Circuit Breaking Capacity: 10 kA
Control Voltage: 24 V
Machine Weight: Approx. 1,800 kg
Maximum Transport Weight: 2,025 kg
Accessories:
Machine Enclosure with Safety Doors
Machine Light (LED Flexible Arm)
Central Lubrication System
Coolant System (66 L Tank)
Automatic Mechanical Tool Clamping
Electronic Feed and Spindle Override Potentiometers
Electronic Handwheel HEIDENHAIN HR 510 FS
Probe Preparation Kit for TS 220 / TS 260
4th Axis Preparation Kit
Extra Information:
Machine only used in training workshop
Fully refurbished in 2026
6-month warranty
Retrofitting and commissioning available on request at an additional cost
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
