JESSEY JAGUAR 2280

Show in original language

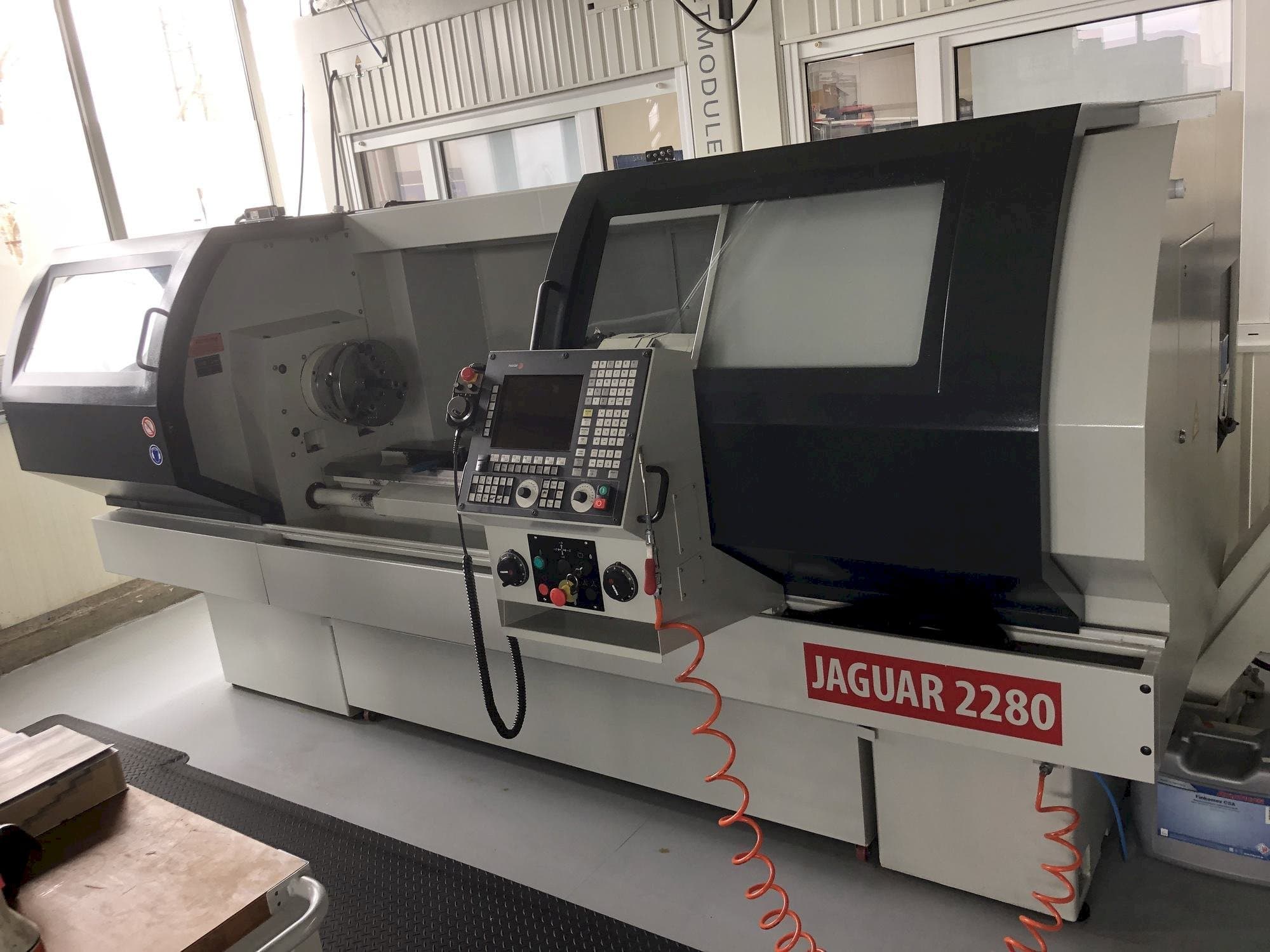

This JESSEY JAGUAR 2280 Lathe was manufactured in the year 2016 in Taiwan. It is equipped with a FAGOR 8055 i/A TC control unit. This 2 axis machine can work with a spindle speed range 26-2400 rpm and a spindle bore 80 mm. It includes several additional parts as a fixed bezel 25-145 mm and a hinged chip conveyor with lateral ejection and chip carriage. This machine includes its electronic documentation in german.

Overview

brand: JESSEY
year: 2016
MODEL: JAGUAR 2280
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - JESSEY JAGUAR 2280

Control Unit

Control Brand: FAGOR
Control Model: 8055 I/A TC

Dimensions

Machine Depth: 5772 mm
Machine Height: 1802 mm
Machine Weight: 4000 kg

Movement

Number of Axes: 2

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 2400 RPM

Additional Information

Additional equipment

8 fold tool turret vdi 40, btp 80 - electromechanical; boring bar 40 mm and turning steel height 25 mm
hinged chip conveyor with lateral ejection and chip carriage
fixed bezel 25-145 mm
fixed steady rest 165 - 385 mm
schunk rota-s plus 315-92/3
3 jaw wedge bar chuck 315 mm
92 mm passage with direct spindle mounting with camlock fastening c8 din 55029/c8 with base jaws and hard reversing top jaws
1 SET OF ALIGNMENT ELEMENTS

Machine Benefits

Qualitative Machine Benefits

Chip tray can be pulled out to the front for easy removal of the chips
Ergonomic control panel with 11'' monitor that can be moved along the entire working lenght, keyboard and 2 electronic handwheels for x and z axis
Powerful machine tailstock with 75 mm quill, 200 mm quill stroke and quick clamping (mk5)
Full safety machine enclosure with 2 large sliding doors
2 viewing windows with safety glass according to din en 12415
Powerful coolant system with 1. 5 bar
Led workspace lighting
Machine according to ce

Technical Machine Benefits

Main machine data tip height 280 mm circulation over 560 mm
Spindle torque 1490 nm
Machine accuracy according to din 8605
Control including din-iso programming
3- speed manual transmission with electronic gear shifting
Multifix quick change toolholder system - size mc with 4 inserts
Prismatic machine guide and precision recirculating ball spindle
Finely ground guideways hardened to 5o rockwell (hrc) with a large bed widht fro 345 mm
Removable bed bridge
Automatic central lubrication system for guideways and ball screws
