➤ Used IMA Combima Systems / I/R751220/R3 | Edgebander

Show in original language

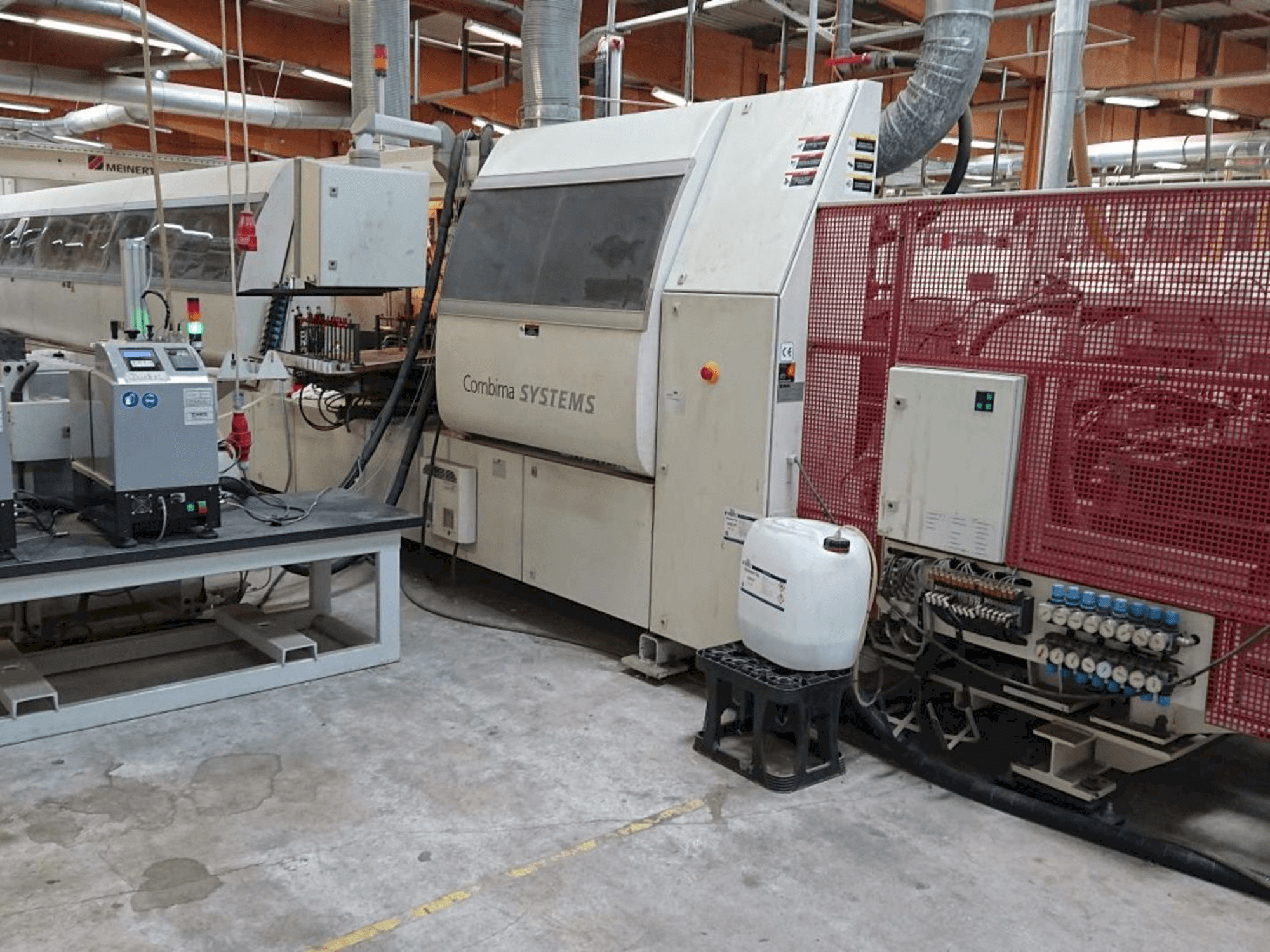

This edgebander was manufactured in 2005. It is a single-sided combination machine ideal for formatting, edge gluing, and finishing panel-shaped workpieces made of wood or wood-based materials. Features include an automatic insertion table, NC insertion system, and a 12-compartment edge magazine for roll material up to 3 mm thick. It also boasts a variable feed speed of 5-25 m/min and a PC control ICOS open system. For more information about this edgebander, please reach out to us.

Overview

brand: IMA
year: 2005
MODEL: Combima Systems / I/R751220/R3
application type: Edge Banding
Location: Germany
machine type: Edgebander

Additional Information

Additional equipment

Automatic insertion table
Agregado KFA Return
NC insertion system
Inclined roller table as inlet section
Additional stop ruler, adjustable via NC axis
Agregado double 08.376
Radiator 300 lg, 2x1.5 kW
Multiple profile/bevel unit
Contour milling unit KFA 30
Multiple profile scraper unit

Machine Benefits

Qualitative Machine Benefits

Cutting unit: 08. 42, for 2 motors
Milling/profile milling/grooving units: two units, each with 1 motor, 100 hz, 6000 rpm and 600 rpm respectively
Motor shaft for hydro-format tool system
Return system: meinert brand
Flat scraper blade 08. 517
Copy buffing unit 08. 604
Buffing unit 08. 617-2
Double base 75,184 1050 mm high level
Precision in edge processing with multiple units for cutting, milling, and buffing
High-quality glue application system for straight edges

Technical Machine Benefits

Workpiece amplification: min. 238 mm, max. 2350 mm
Workpiece width: min. 142 mm, max. 800 mm
Workpiece thickness: min. 8 mm, max. 40 mm
Edge height: min. 14 mm, max. 45 mm
Edge thickness: 0. 3 - 3. 0 mm
Feed speed: 5-25 m/min
Glue specification for workpiece thickness: max. 50mm
Pre-melting containers for pu glue: 2
Edge magazine: 12-compartment for roll material 0. 3-3 mm thick
Roll holder vertical: max. Roll diameter 850 mm, max. Edge height 45 mm

Extra Information

Machine still under power. The machine is designed for single-sided combination processing including formatting, edge gluing, and edge finishing of wood or wood-based panel-shaped workpieces. It is specifically tailored for the production of strand goods in the second run.
