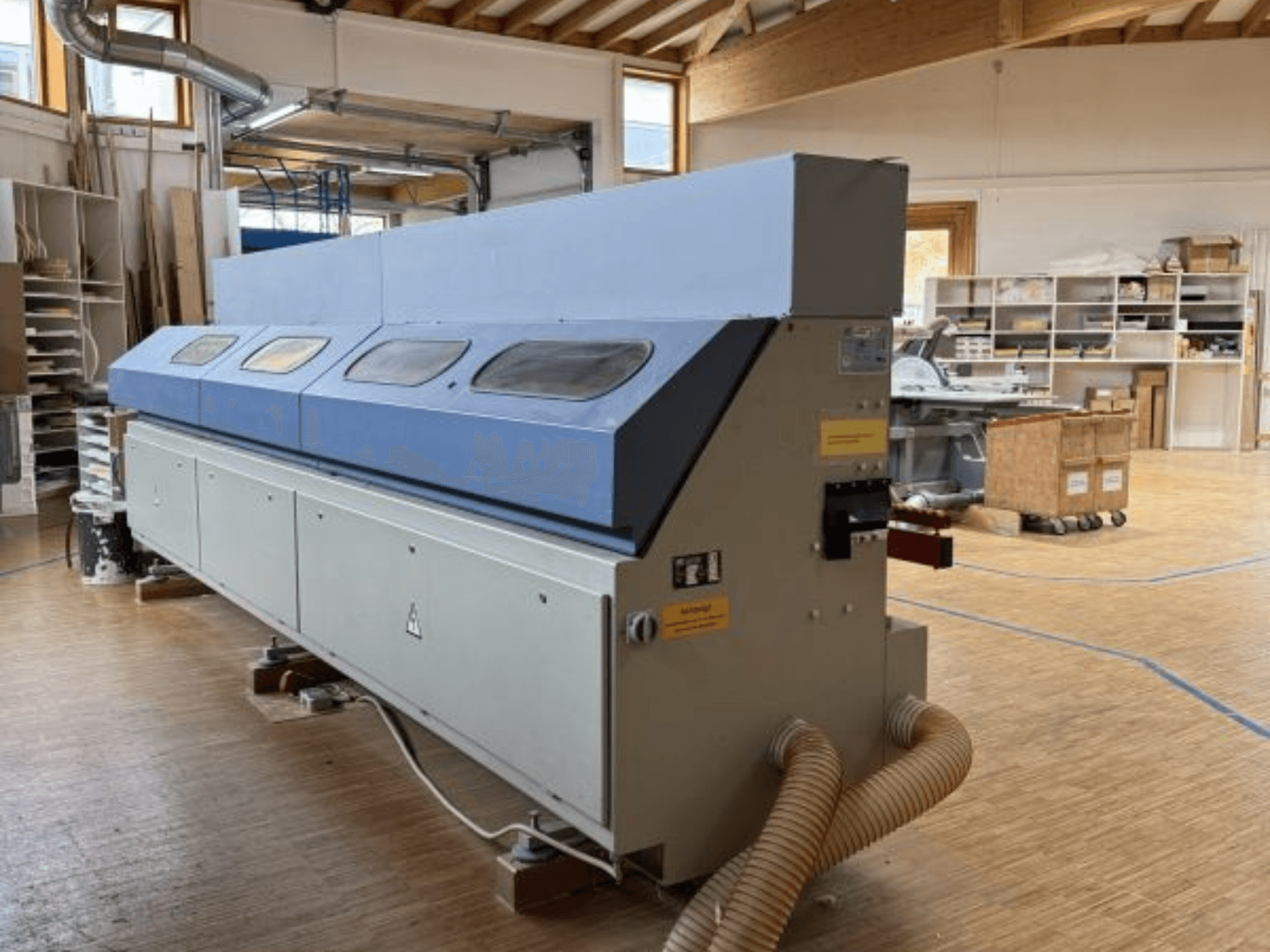

OTT Pacific V6-F edgebander shown from a side view; features a long blue top and control panel with hose attachment.
OTT Pacific V6-F edgebander shown from a side view; features a long blue top and control panel with hose attachment.

OTT - Pacific V6-FDE-EDG-OTT-2000-00001

£ 13,917
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Edgebander manufactured in 2000. This OTT Pacific V6-F features an edge thickness capability of 0.2 - 6 mm and can handle workpiece thicknesses from 8 to 42 mm. It operates at a feed speed of 12 m/min and includes various processing units such as joining mills, a gluing unit, and a polishing unit. If you are looking to get high-quality edge banding capabilities, consider the OTT Pacific V6-F machine we have for sale. Contact us for further details.

Overview

  • brand: OTT
  • year: 2000
  • MODEL: Pacific V6-F
  • application type: Edge Banding
  • Location: Germany
  • machine type: Edgebander

Technical Information - OTT Pacific V6-F

Dimensions

  • Machine Weight: 2000 kg

Additional Information

  • Condition: Not rebuilt – sold without warranty

  • Edge thickness: 0.2–6 mm

  • Workpiece thickness: 8–42 mm

  • Workpiece width: min. 70 mm

  • Workpiece length: min. 150 mm

  • Feed speed: 12 m/min

  • Electrical connection: 3 x 400 V, 50 Hz

  • Exhaust connection: 2 x Ø 120 mm at 20 m/sec

  • Exhaust capacity: 30 m³/h

Processing units and features (part of the machine)

  • Joining mills: 2 x 1.5 kW, 12,000 rpm, 200 Hz; two application-controlled work spindles

  • Gluing unit: Rapid-heating tank with Melt-matic; automatic edge magazine with optical monitoring (for strip edges in fixed lengths)

  • Release agent spray system

  • Crosscut unit: 2 x 0.2 kW, 12,000 rpm, 200 Hz; automatic swivel 0°/3°

  • Flush milling unit: 0°/15°/30°/45°; 2 x 0.43 kW, 12,000 rpm, 200 Hz

  • Radius milling unit: R2–R5; 2 x 0.3 kW, 12,000 rpm, 200 Hz

  • Corner rounding milling unit: 2 x 0.3 kW, 12,000 rpm, 200 Hz

  • Quick-change stations: 2 for milling units

  • Scrapers: 2 x carbide scrapers

  • Polishing unit: 2 x 0.2 kW, 2,800 rpm, 50 Hz

Additional equipment

  • None included or specified beyond the machine’s built-in units and features.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
