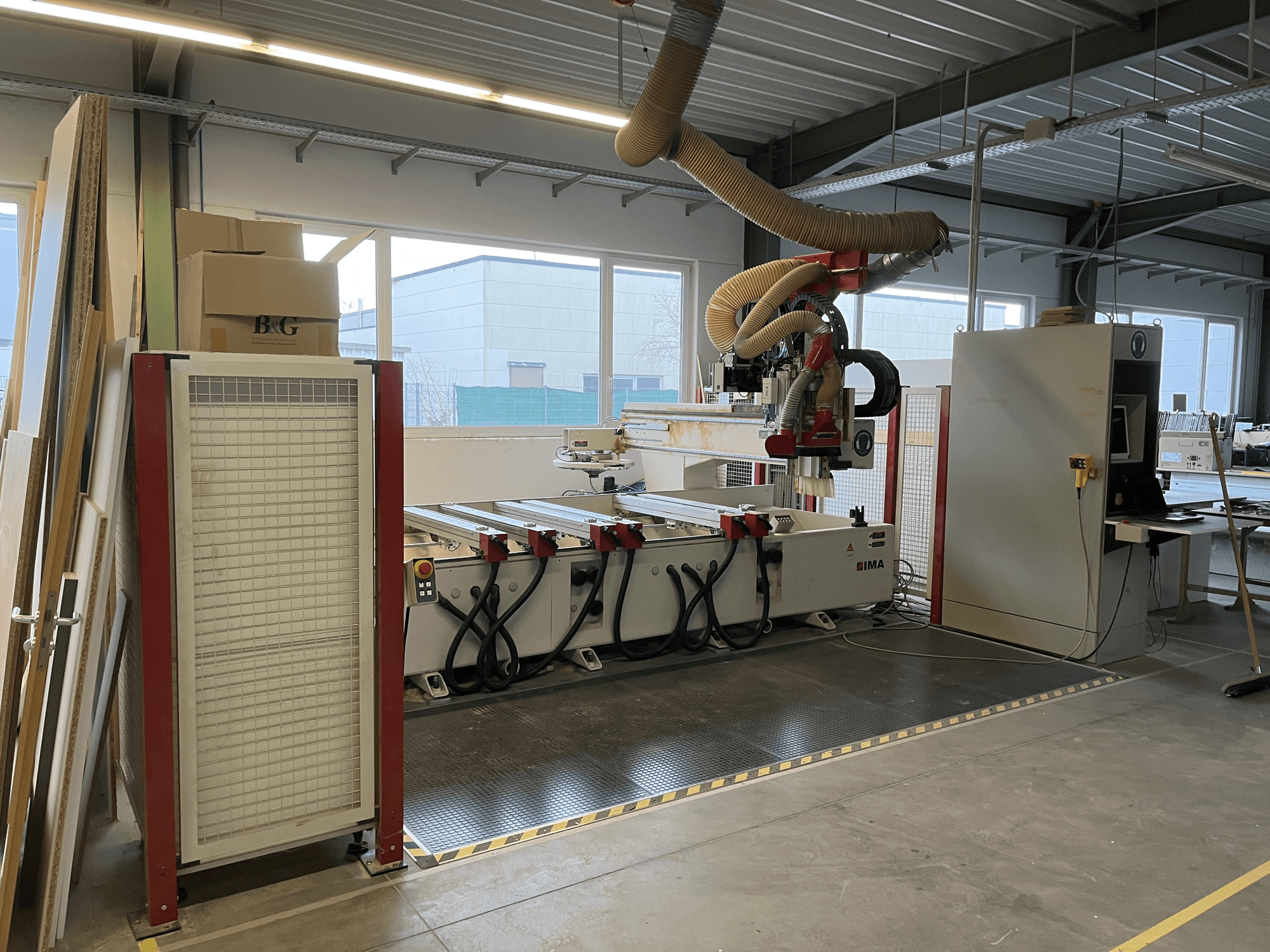

IMA - BIMA 410DE-CNC-IMA-2000-00001

• Working area X: 3000 mm

• Working area Y: 1200 mm

• Max. clamping height Z1: 100 mm

• Max. workpiece thickness Z2: depending on equipment/application

• Table height: approx. 1000 mm

• Pendulum operation X: 2 × 1400 mm

• Free space center X: 200 mm

• Pendulum operation alternative X: 2 × 900 mm

• Free space center alternative X: 1200 mm

• Machine weight: approx. 6000 kg

• Guide system: precision linear guides hardened approx. 62 HRC

• Central lubrication: automatic for all main axes and ball screw

• Drive system: AC servo motors with encoder

• X/Y drive: rack and pinion

• Z drive: ball screw

• Feed rate: 40 m/min

• Rapid traverse X/Y: 80 m/min

• Rapid traverse Z: 25 m/min

• Acceleration: 3 m/s²

• Extraction connection main spindle: 300 mm

• Extraction connection drilling spindles: 120 mm

• Air speed: approx. 28 m/s

• Air volume: approx. 7080 m³/h

• Vacuum pump capacity: 100 m³/h

• Compressed air connection: 1/2"

• Air pressure: 6 bar

• Control voltage: 24 V DC

• Connected load: approx. 24 kVA

• Power supply: 3/N/PE 400/230 V 50 Hz

• Frequency converter: 0–480 Hz

• Ambient temperature: +15 to +35 °C

• Control system: IMATRONIC NT 231

• Interpolation: linear all axes, circular 2.5D

• Resolution: 0.001 mm

• Spindle: HSK F63

• Tool clamping force: 11000 N

• Max tool weight: 6 kg

• Speed range: 1500–18000 rpm

• Spindle power: 7.5 kW

• Cooling: water cooled

• CNC axis: 360° rotating

• Tool magazine type: plate changer

• Tool positions: 18

• Max tool length: 150 mm

• Max tool diameter: 100 mm (150 mm with free сосед positions)

• Max load: 60 kg

• Saw unit motor: 1.5 kW

• Saw speed: 5600 rpm

• Saw blade diameter: max. 150 mm

• Drilling unit: 14 spindles

• Spindle stroke: 70 mm

• Drive: 2.2 kW

• Speed: 3150 rpm

• Drill diameter max: 20 mm

• Adapter head spindles: 4

• Speed max: 6000 rpm

• Drill diameter max: 12 mm

Table equipment:

• 6 adjustable support arms

• 12 suction cups 114 × 159 × 100 mm

• 6 suction cups 125 × 75 × 100 mm

• Vacuum system: 2-circuit clamping system

• Electrical cabinet size: 2000 × 1800 × 600 mm

DEFECT:

• The main spindle no longer releases the interchangeable drill head
