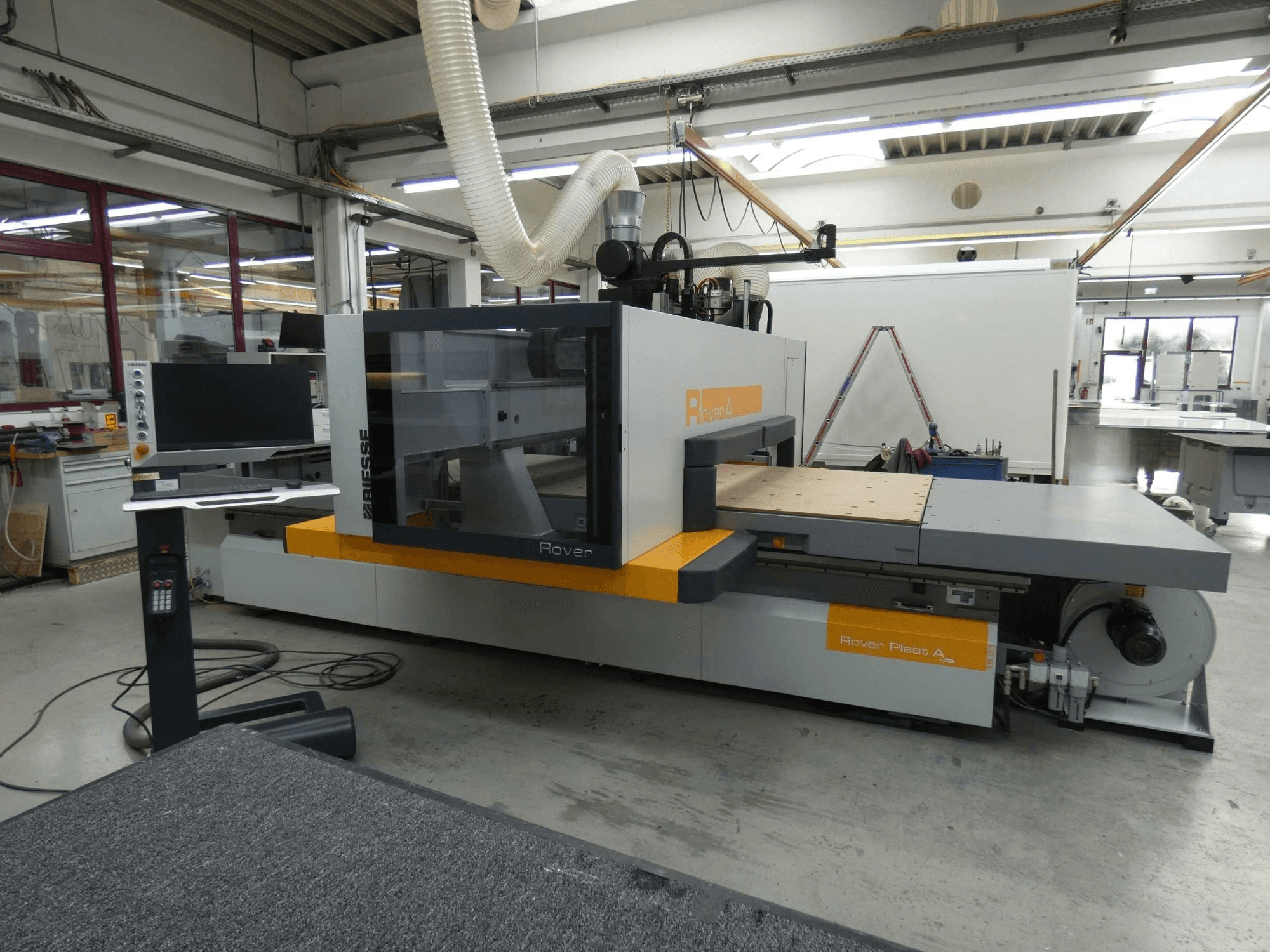

BIESSE - ROVER PLAST A FT 1224DE-CNC-BIE-2023-00001

• Working Area / Table Dimensions: X = 2465 mm, Y = 1260 mm

• Z-Axis Stroke: 378 mm

• Maximum Axis Speed: X = 85 m/min, Y = 60 m/min, Z = 20 m/min

• Maximum Piece Passage in Z: 200 mm (170 mm with Sweeper Arm)

• Worktable Type: FT PLUS phenolic layer table with 30 mm grid layout, 12 mm MDF matrix plate

• Vacuum System: Multi-zone vacuum system (4 independent zones)

• Vacuum Pump: 1x 250 m³/h cam vacuum pump (dry running, maintenance free)

• Machining Unit: 5-interpolating axes machining unit, 13 kW (17.4 HP) S6 / 11 kW S1, HSK F63 adapter, liquid-cooled, up to 20,000 RPM

• Axis Angles: C-axis 360° continuous rotation, B-axis +/- 150°

• Coolant Unit: Liquid cooling system (absorbs 1600 W) for electrospindle

• Tool Tool Changer / Magazines:

• 13/16-position linear side tool changer mounted on machine bed

• 8-position revolving tool changer mounted on X-carriage

• Measuring Systems: Digital tool length presetter (for diameters up to 130 mm)

• Software: BH660 PC-based control with WRT (Windows Real Time), bSolid (3D CAD/CAM), bSolid 3-Axis & 5-Axis machining modules, bNest (Nesting module), bSolid File Import Module

• Additional Features:

• LED light strip for work area illumination & L-shaped LED projector for vacuum pod positioning

• Ionizer for static charge reduction on plastics

• Tool lubrication system (air-oil mist) for non-ferrous material processing

• Wired remote control pad

• Uniclamp adapters (4x) and Uniclamp clamping devices (4x, H=74mm)

• Vacuum modules: 6x (132x146 H74mm), 4x (132x75 H74mm), 4x (132x54 H74mm)

• Air cushion blower for easy loading/unloading

• Barcode scanner (1D wireless)

• UPS backup for machine PC (7-10 min power backup)

• Power Supply: 400 V / 50 Hz, 3-phase (without neutral conductor), voltage tolerance +/-10%

Safety Standard: CE / UKCA with Full Bumper safety system and protective enclosure
