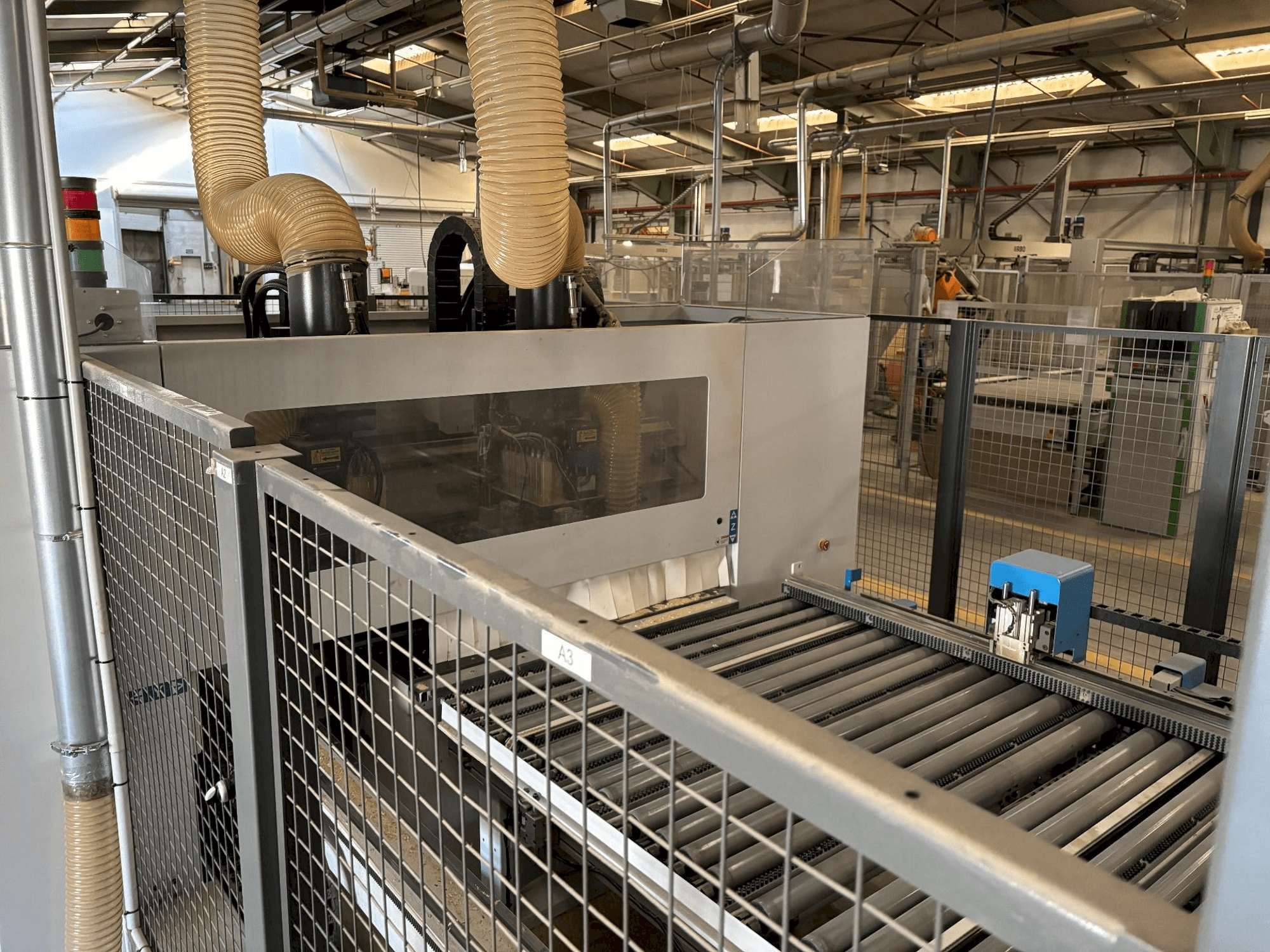

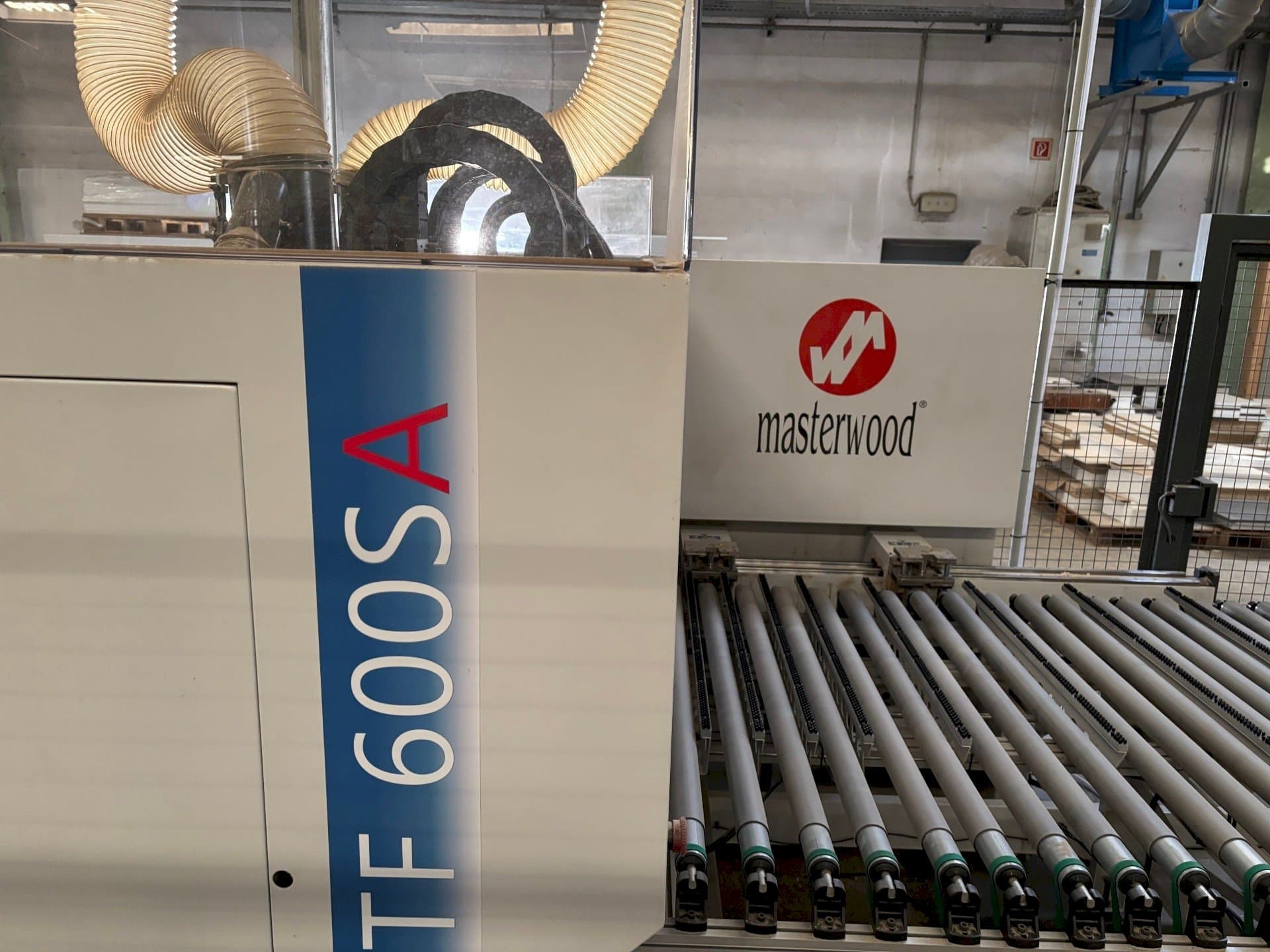

Front view of MASTERWOOD MASTERDRILL TF 600 SA  machine

MASTERWOOD - MASTERDRILL TF 600 SADE-MIL-MAS-2020-00001

£ 54,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This CNC Wood Machining Centre was manufactured in 2020. The Masterwood MASTERDRILL TF 600 SA features dual 3.5 kW milling spindles with a maximum speed of 18,000 rpm and air cooling. It handles workpieces from 400 to 2500 mm in length and 400 to 950 mm in width, with thicknesses from 8 to 60 mm. If you are looking to get high-quality milling capabilities, consider the Masterwood MASTERDRILL TF 600 SA machine we have for sale. Contact us for more information.

Overview

  • brand: MASTERWOOD
  • year: 2020
  • MODEL: MASTERDRILL TF 600 SA
  • application type: Milling (Wood)
  • Location: Germany
  • machine type: CNC Wood Machining Centre
  • availability: Immediately

Technical Information - MASTERWOOD MASTERDRILL TF 600 SA

Main drive

  • Spindle speed range: 18000 rpm 1/MIN
  • Spindle motor power: 3.5 kW

Workpiece

  • Workpiece x: 8~ 60 mm
  • Workpiece y: 400 ~ 950 mm
  • Workpiece z: 400 ~ 2500 mm

Tools

  • Type of tool holder: ER 25

    Additional Equipment

    • - Machine work table fully managed by NC.
    • - NC-controlled side aligner for perfect alignment.
    • - Masterwork for easy programming.
    • - Master Drill: Human-machine interface.
    • - Trepan: For manual and equipment operations.
    • - Automatic barcode scanner at the infeed
    • - Palette CAM start software
    • - Motorized roller conveyor for loading workpieces at the infeed

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Motorized conveyor belt with sensor control.
        • - Upper drilling heads: vertical drills in x direction: 7+7 vertical drills in y direction: 5+5
        • - Upper drilling heads: horizontal drills in x direction: 2x2 + 2+2 horizontal drills in y direction: 2+2
        • - Lower drilling head: vertical drills: 3x3
        • - Grooving saw: maximum diameter of the saw blade: 125 mm
        • - Grooving saw: grooves can be sawn from a minimum of 55 mm to a maximum of 850 mm
        • - Right-left rotation
        • - Operation by inverter
        • - Air cooling

      Extra information

      • - The technical data and descriptions are a copy of the order confirmation at the time. Data are for information purposes and are not binding.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
