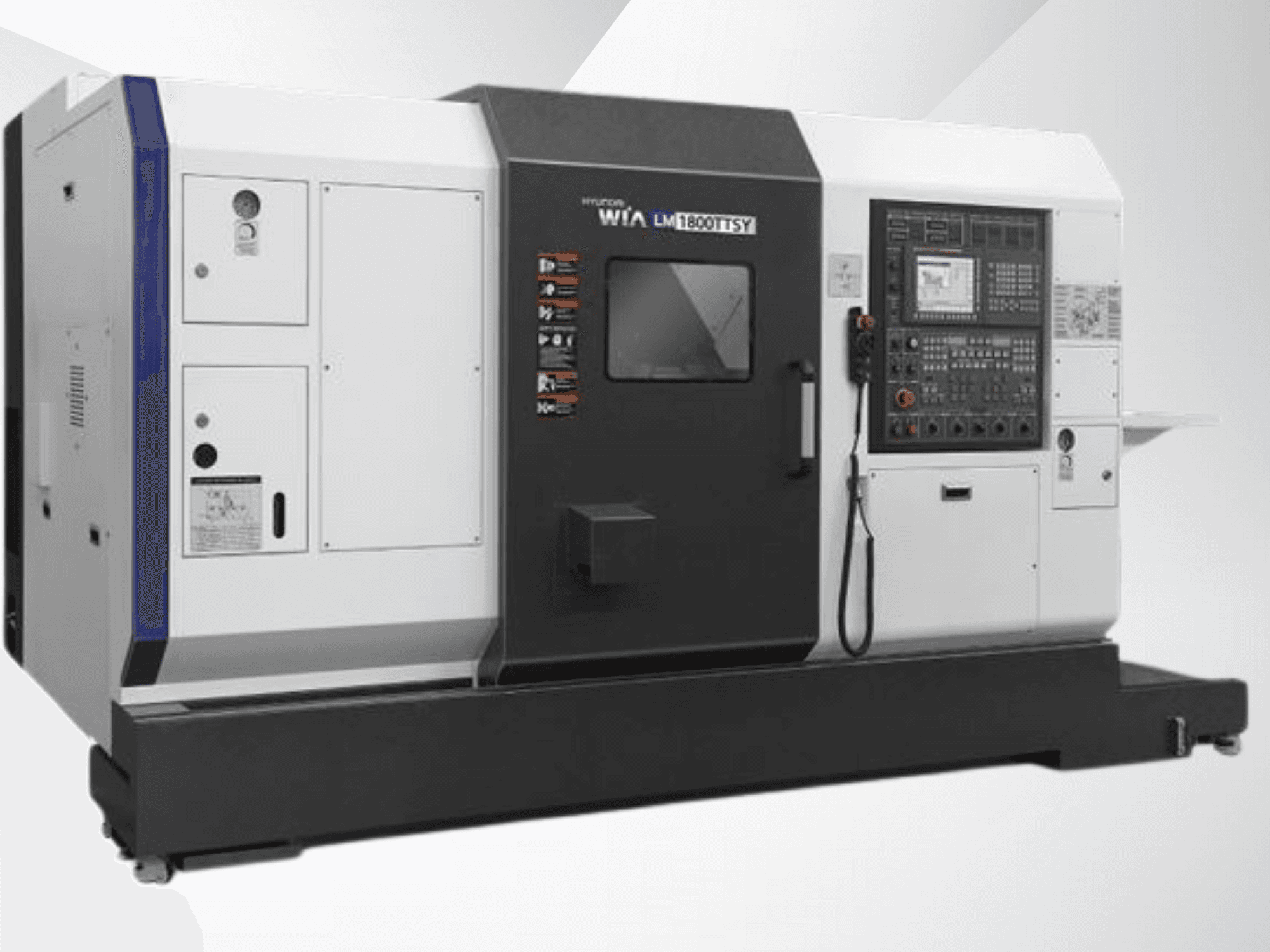

Hyundai - WIA LM 1800 TTSYDE-TUR-HYU-2025-00002

Packaging: Original packaging

Capacity:

• Swing over carriage: Ø290 mm

• Max. turning diameter: Ø230 mm

• Max. turning length: 673 mm

• Bar capacity (1st/2nd): Ø65 mm

• Chuck size (1st/2nd): Ø210 mm

Spindle:

• Spindle bore (1st/2nd): Ø76 mm

• Motor (Max/Cont.) (1st/2nd): 22/11 kW (30/15 HP)

• Torque (Max/Cont.) (1st/2nd): 358/214 Nm (264/158 lbf ft)

• Spindle type: Built-in motor

• Spindle nose: A2-6

• C-axis indexing (1st/2nd): 0.001°

Feed / Axes:

• Travels (X1/X2): 165/195 mm

• Travels (Z1/Z2): 700/720 mm

• Travel (ZB): 668 mm

• Rapid (X1/X2): 20/20 m/min (787/787 ipm)

• Rapid (Z1/Z2): 40/40 m/min (1,575/1,575 ipm)

• Rapid (Y): 7.5 m/min (295 ipm)

• Rapid (ZB): 40 m/min (1,575 ipm)

• Slide type (X/Y): Box guide

• Slide type (Z): LM guide

Turret:

• No. of tools: 2 × 12 (24)

• Tool size (OD): Ø20 mm

• Tool size (ID): Ø32 mm

• Indexing time: 0.15 sec

• Y-axis type: Wedge type

Live tool:

• Milling tool speed: 5,000 rpm

• Motor (Max/Cont.): 5.5/1.1 kW (7.4/1.5 HP)

• Torque (Max/Cont.): 47/14 Nm (34/10 lbf ft)

• Collet size: ER25

• Type: BMT55

Tank capacity:

• Coolant tank: 300 L (79.3 gal)

• Lubricating tank: 4 L (1.06 gal)

Power supply:

• Electric power: 60 kVA

• Power cable thickness: Over 50 mm²

• Voltage: 220/60 (200/50)

NC / Controller: FANUC 31i-B Plus / SIEMENS 840D
