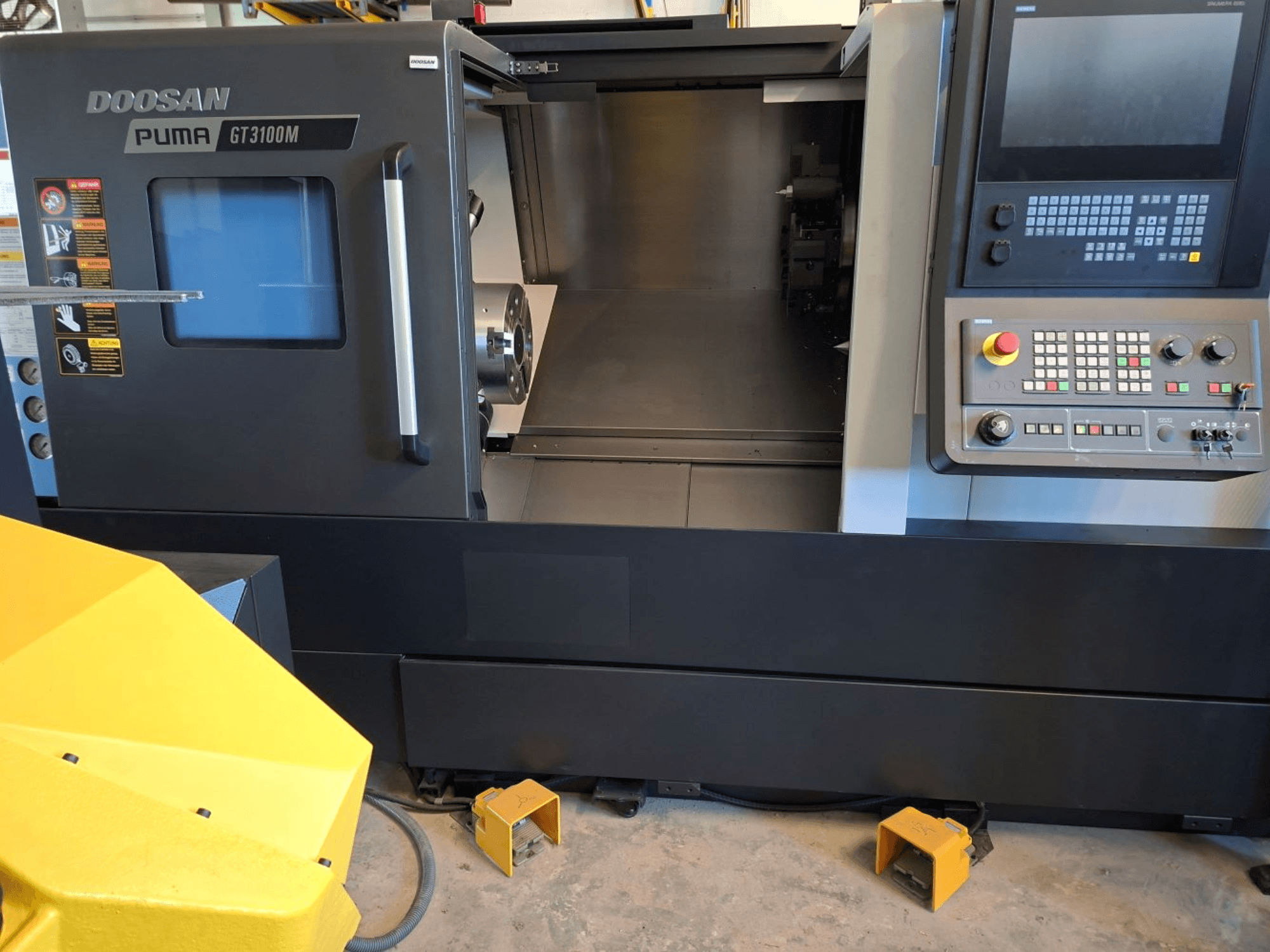

DOOSAN - Puma GT 3100 M DE-TUR-DOO-2022-00003

Siemens S828D control touchscreen with ShopTurn 15-inch display

3-axis CNC horizontal turning machine with driven tools and tailstock

C-axis main spindle: 360° resolution 0.001°

C-axis speed: 200 rpm

C-axis torque: approx. 1162 Nm

Swing diameter over bed: 720 mm

Swing diameter over cross slide: 590 mm

Max turning diameter: 376 mm

Max turning length: 725 mm

Main spindle bore: 115 mm

Bar capacity: 103 mm

Spindle nose: ASA A2-11

Max torque: approx. 1112 Nm

Rapid traverse X-axis: 24 m/min

Rapid traverse Z-axis: 30 m/min

Feed force X-axis: 9465 N

Feed force Z-axis: 17379 N

Three-jaw power chuck diameter: 305 mm with soft jaws

12-station tool turret with BMT65P tool holders

Max driven tool speed: 5000 rpm

Driven tool power: approx. 7.7 kW

Driven tool torque: approx. 75 Nm

Tailstock with quill diameter: 100 mm

Quill stroke: 100 mm

Hydraulic clamping system with hollow cylinder

Monoblock cast iron machine bed, Meehanite construction

30° slant bed design

Hardened and ground guideways with low-friction coating

Automatic central lubrication

Coolant system: 7 bar pressure

Coolant tank capacity: approx. 235 liters

Hydraulic tank: approx. 20 liters

Full enclosure with working area lighting

Bar feeder interface

Oil skimmer

Electronic safety clutch for X and Z axes

Electrical connection: 400 V, 3-phase, 50 Hz

Total power: approx. 47 kVA

Unused (like new)
