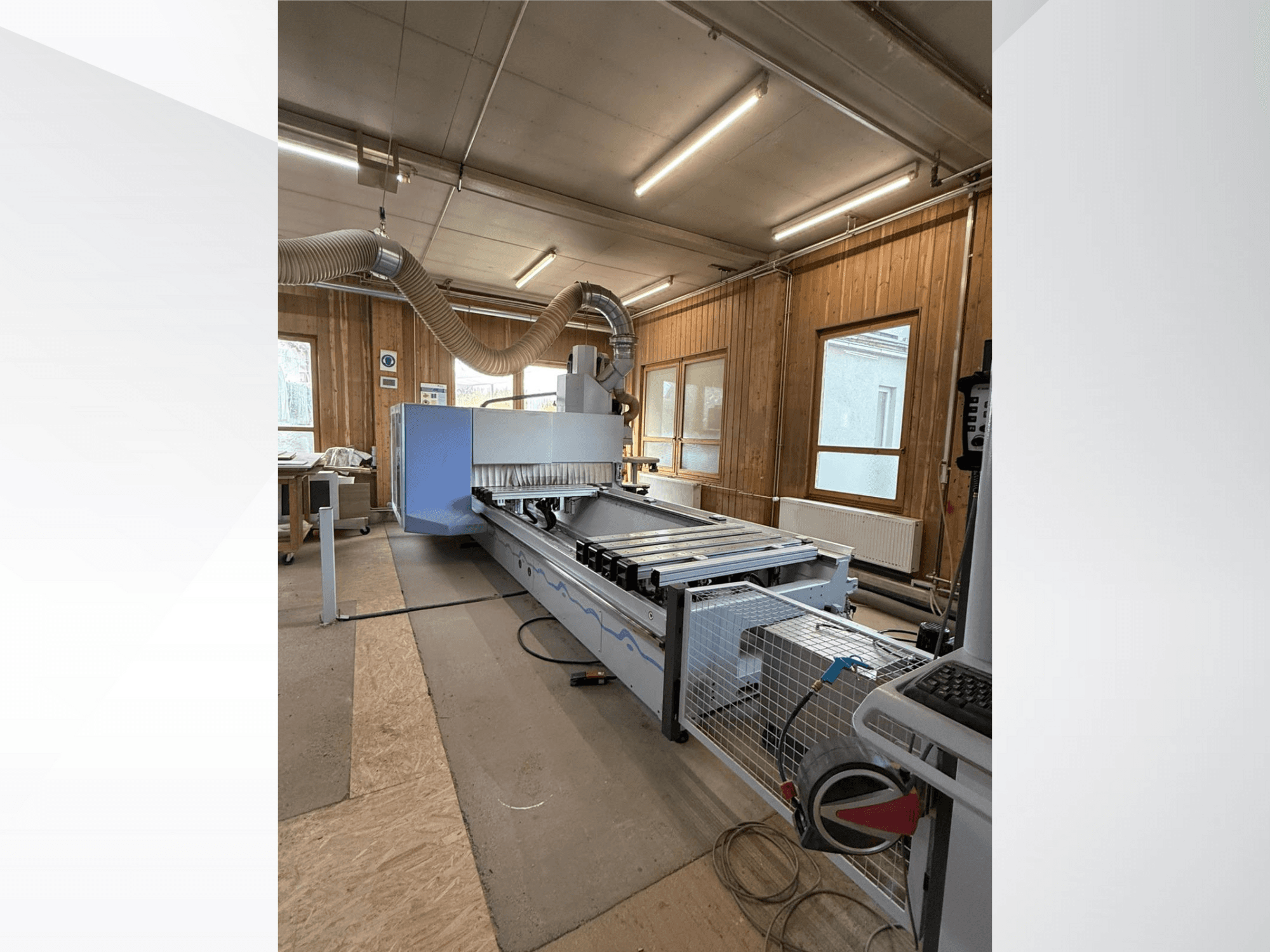

HOMAG - BMG311 VENTURE316LDE-CNC-HOM-2014-00002

Max Workpiece Length:

Single: 4200 mm

Pendulum: 500 - 2440 mm

Workpiece Diameter 25 mm:

Single: 4375 mm

Pendulum: 500 - 2616 mm

Max Workpiece Width:

Front stop: 950 mm

Rear stop: 1400 mm

Milling Workpiece Diameter 25 mm:

Front stop: 1050 mm

Rear stop: 1550 mm

Max Workpiece Thickness: 270 mm including clamping device

Clamping Table:

Console table K

Consoles incl. front stop: 8 pcs.

Rear stop (fixed): 5 pcs.

Lift rails: 6 pcs.

Console length: 1340 mm

Stop bolts lift from console surface: 140 mm

Side Stops:

Left: 2 pcs.

Right (mirror position): 2 pcs.

Vacuum Clamps:

16 pcs. 160x115x100 mm

8 pcs. 125x75x100 mm

Easyedge gluing package

Easyedge manual end cap gluing device
