➤ Used QUICK CNC UA 481 - 2025 - For Sale | gindumac.com

Show in original language

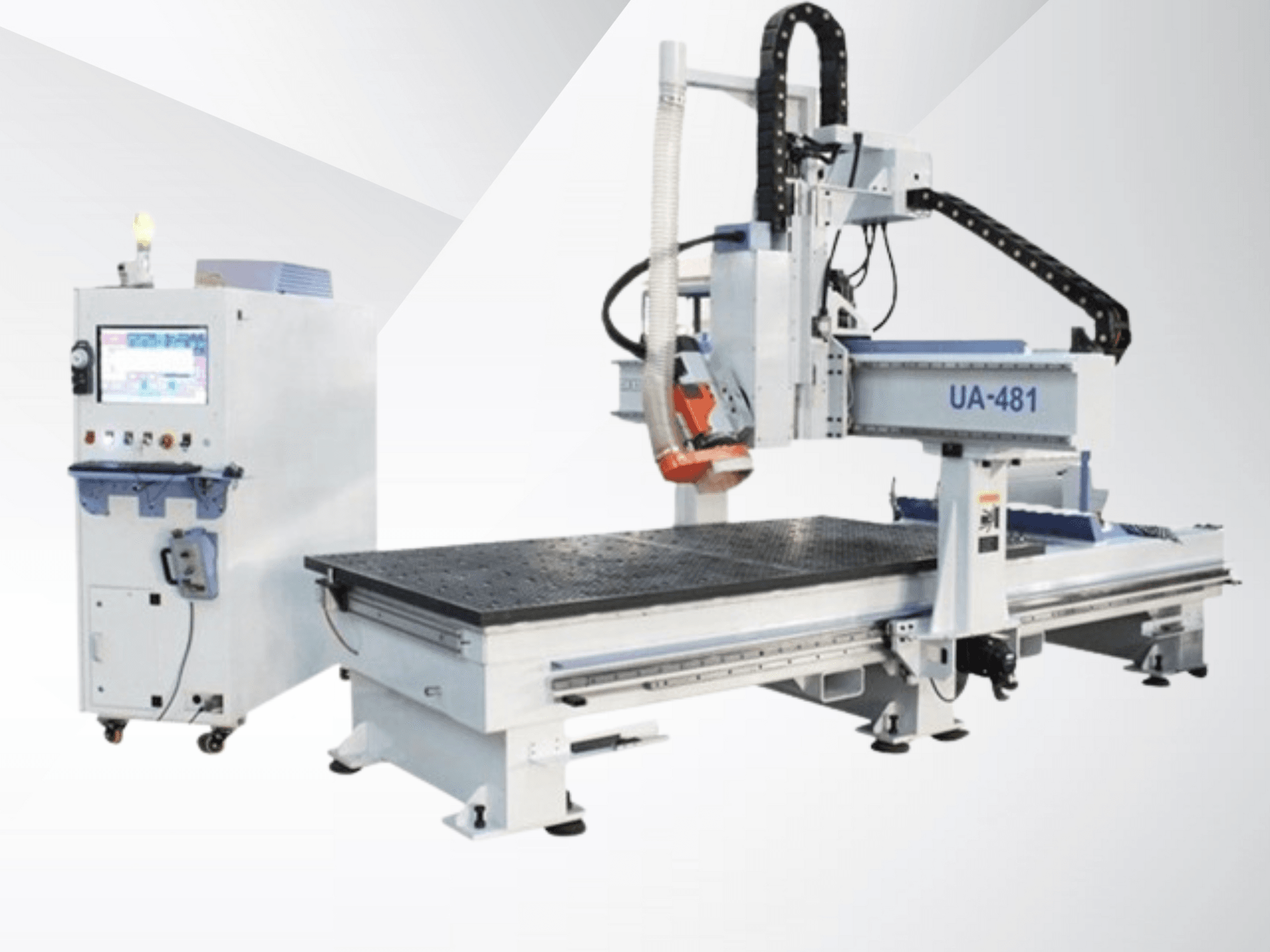

This 4-axis QUICK CNC UA 481 was manufactured in 2025. It features a 2100 x 3050 x 400 mm working area, a 9 KW HSD/HSK F 63 spindle, and a double layer vacuum table with 6 zones. Equipped with a Yaskawa servo motor and two Becker pumps at 250 m3/h each, it's ideal for advanced woodworking. Consider the opportunity to buy this QUICK CNC UA 481 CNC Wood Machining Centre. Contact us for more information about this machine.

Overview

brand: QUICK CNC
year: 2025
MODEL: UA 481
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - QUICK CNC UA 481

Movement

Number of Axes: 4
X-axis Travel: 2100 mm
Y-axis Travel: 3050 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 9 kW

Additional Information

4-Axis CNC Routing Machine
Manufacturer: Quick
Type: UA-481
New Machine

Technical Specifications:

PC with Windows 11
NC Studio control software
Heavy-duty machine base
Working area: 2,100 x 3,050 x 200 mm
Double-layer phenolic resin vacuum table – grid table
9 kW HSD routing spindle with 24,000 rpm
- 90° tilting capability (swivel axis)
12-position linear tool changer
Automatic tool length measurement
Wireless control panel
3 stops in X-axis, 2 stops in Y-axis

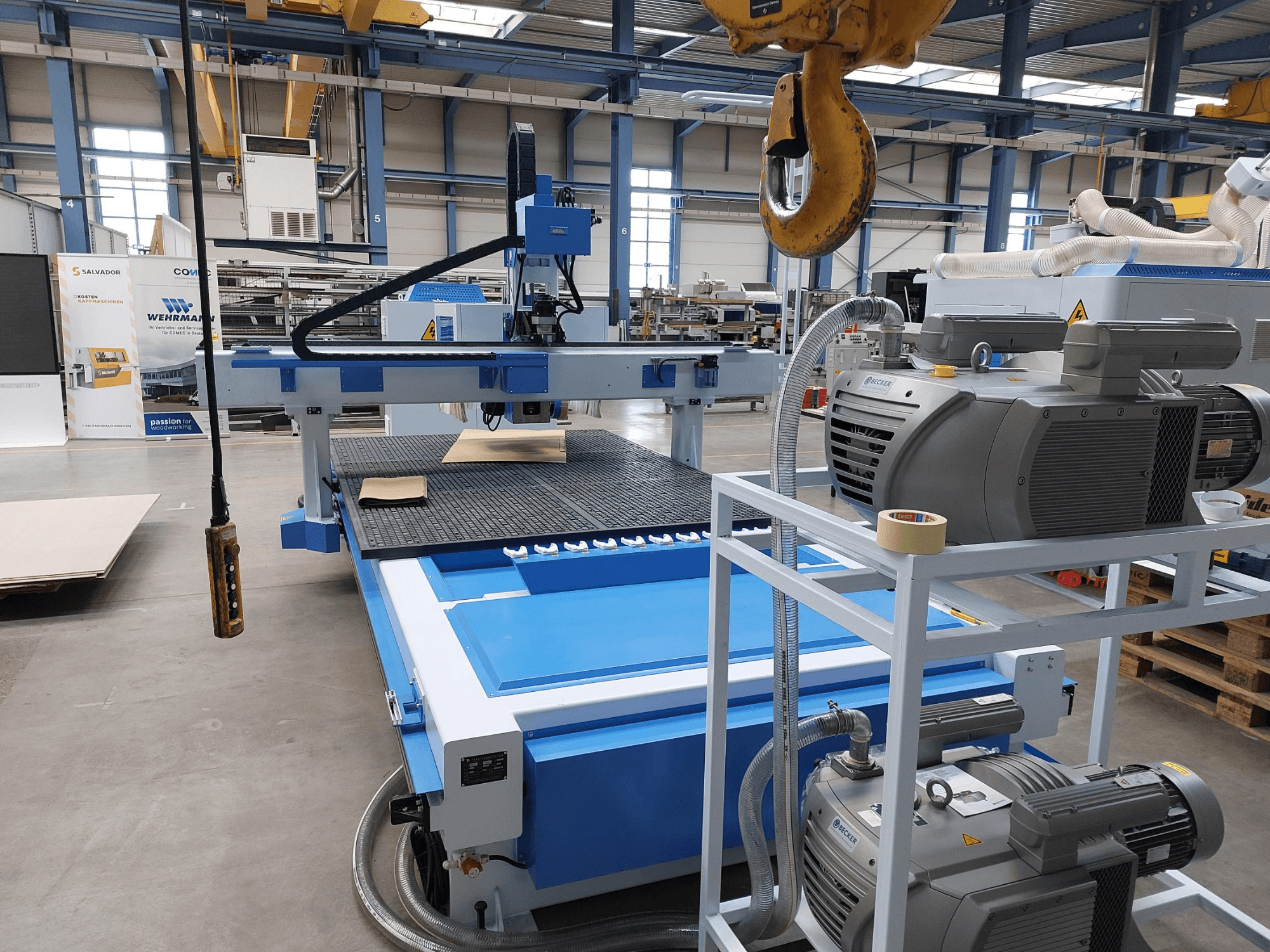

2 x Becker vacuum pumps, 250 m³/h each
Automatic central lubrication
Safety protection by safety fence and light barrier

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
