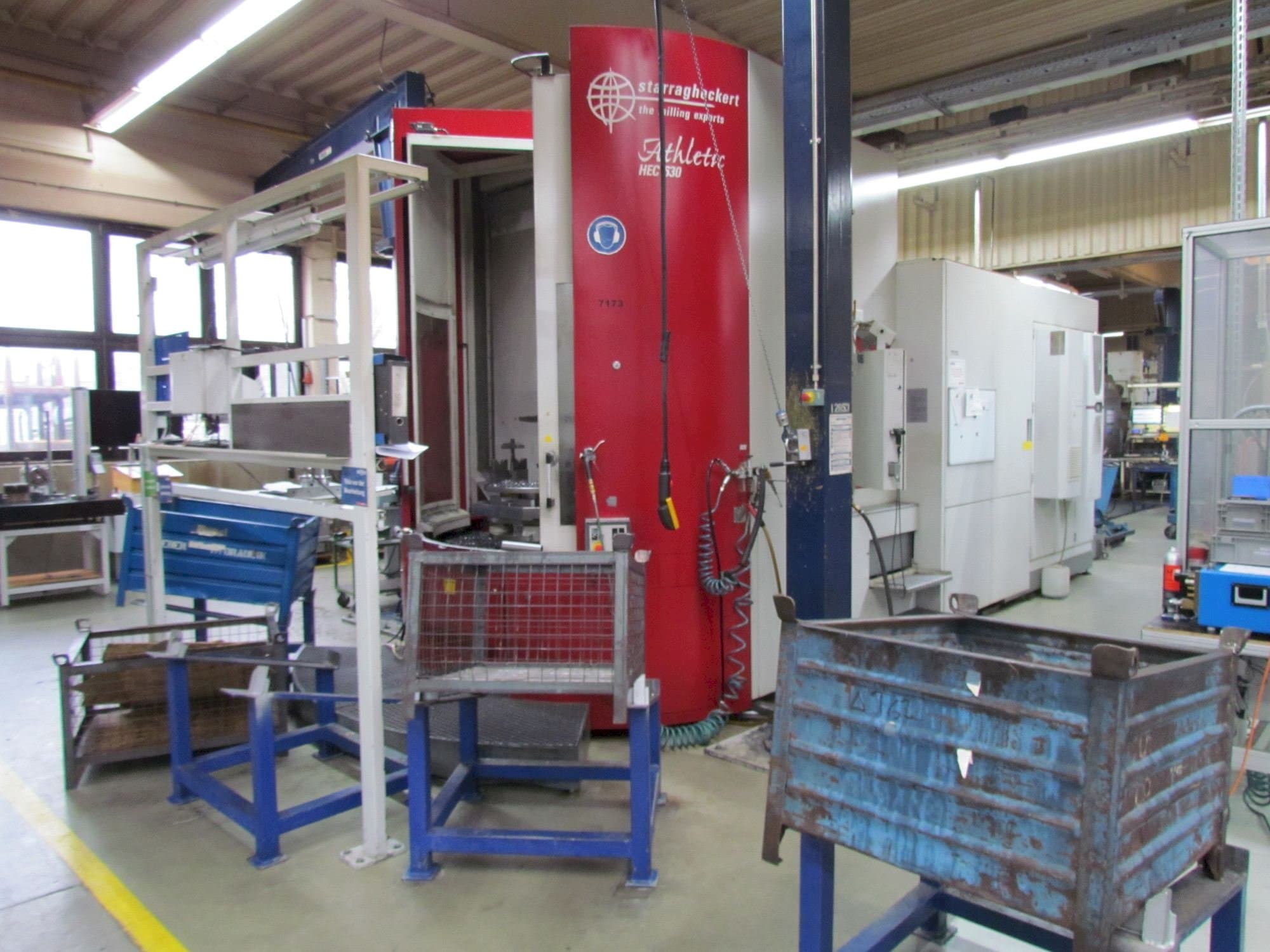

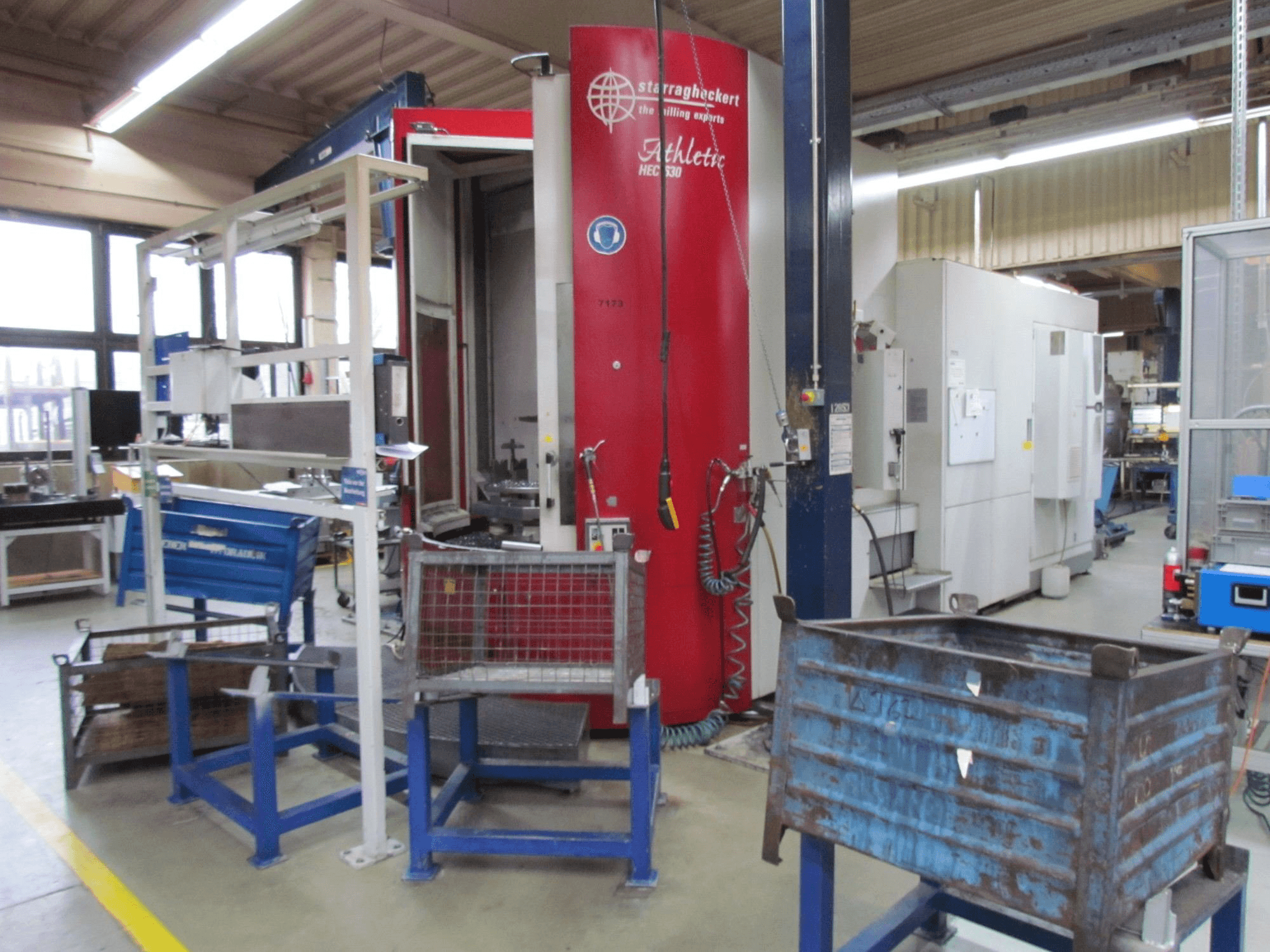

➤ Used This Heckert HEC 630 Horizontal Machining center

Show in original language

This Heckert HEC 630 Horizontal Machining center designed for complex drilling and milling of housing-shaped workpieces for 4-side machining in one clamping was made in 2007 in Germany. It is equipped with a SIEMENS Sinumerik 840 D control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Heckert
year: 2007
MODEL: HEC 630
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Heckert HEC 630

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840 D

Dimensions

Machine Weight: 27200 kg
Table Length: 630 mm
Table Load: 1500 kg
Table Width: 630 mm

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Additional equipment

no tools/ tool holders included

Machine Benefits

Technical Machine Benefits

Machining torque: 1700 kn
Max. Stall torque without table clamping: 1150 nm
Infinitely adjustable work feed range: 60000 mm/min
There are 4x machine tables available
The machine has 4x axes: x+y+z+b

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
