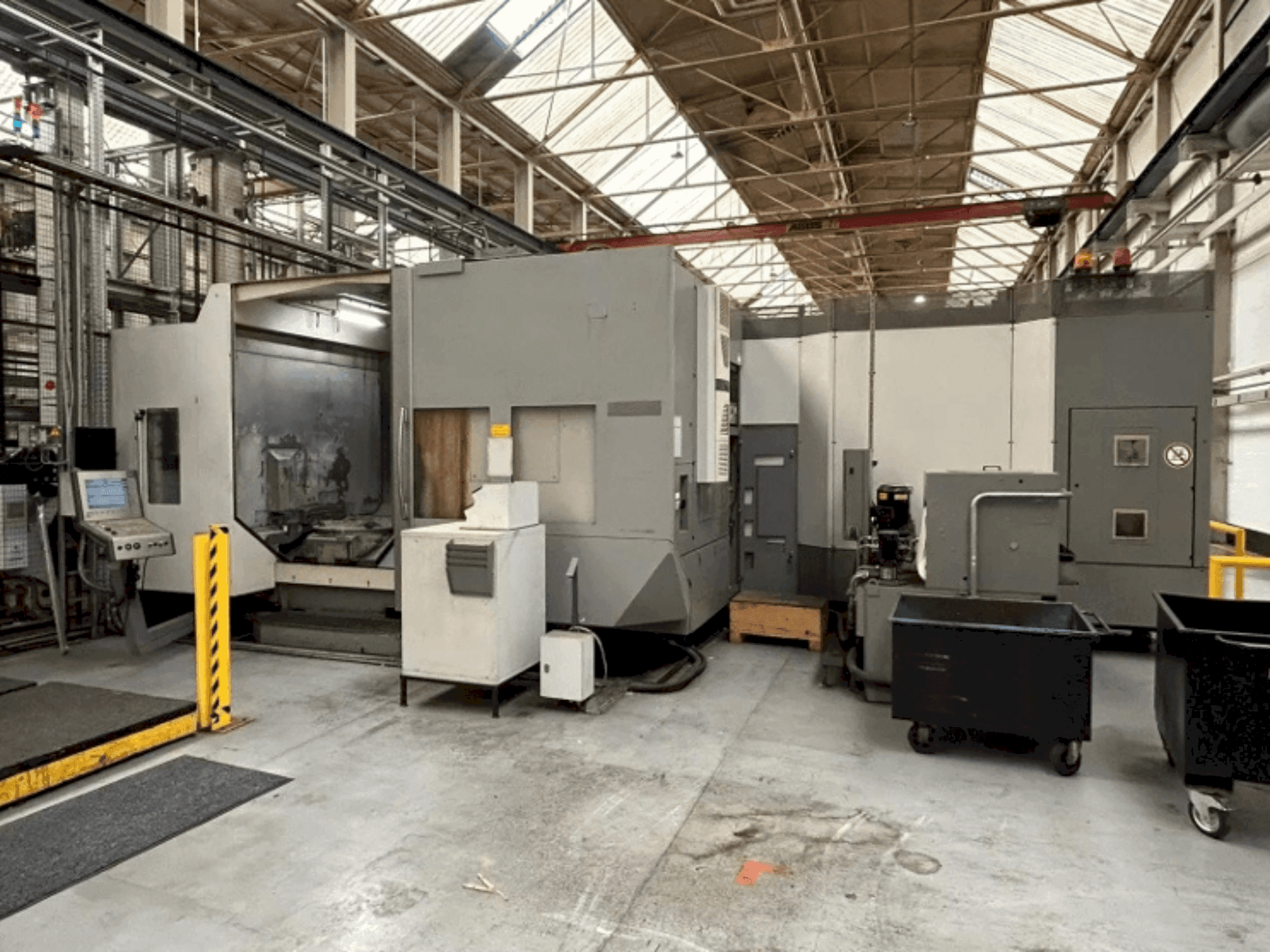

This 5-axis DMG DMC 100 H was manufactured in 2005. It features a Siemens 840D powerline control with Shopmill, a 1,000 mm travel in X, Y, and Z axes, and a speed range up to 8,000 rpm. The machine includes a HSK 100 tool holder, 270/360 tool positions, and two 800 x 800 mm pallets. Consider the opportunity to buy this DMG DMC 100 H horizontal machining centre. Contact us for more information.
Overview
- brand: DMG
- year: 2005
- MODEL: DMC 100 H
- production hours: 37064
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG DMC 100 H
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D powerline + Shopmill
Movement
- Number of Axes: 5
- X-axis Travel: 1000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 44 kW
- Spindle Speed: 8000 RPM
Additional Information
Additional equipment
Electronic handwheel
Operating mode 4
Oil mist extraction
Internal cooling (IKZ): 40 bar
Paper band filter
Chip flushing gun
Machine Benefits
Technical Machine Benefits
Number of pallets: 2
Pallet size: 800 x 800 mm
Tool positions: 270 / 360
Measuring probe: renishaw omp 60
Spindle power: 44 kW (40% duty cycle) or 32 kW (100% duty cycle)
Maximum torque: 1241 Nm (40% duty cycle) or 827 Nm (100% duty cycle)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
