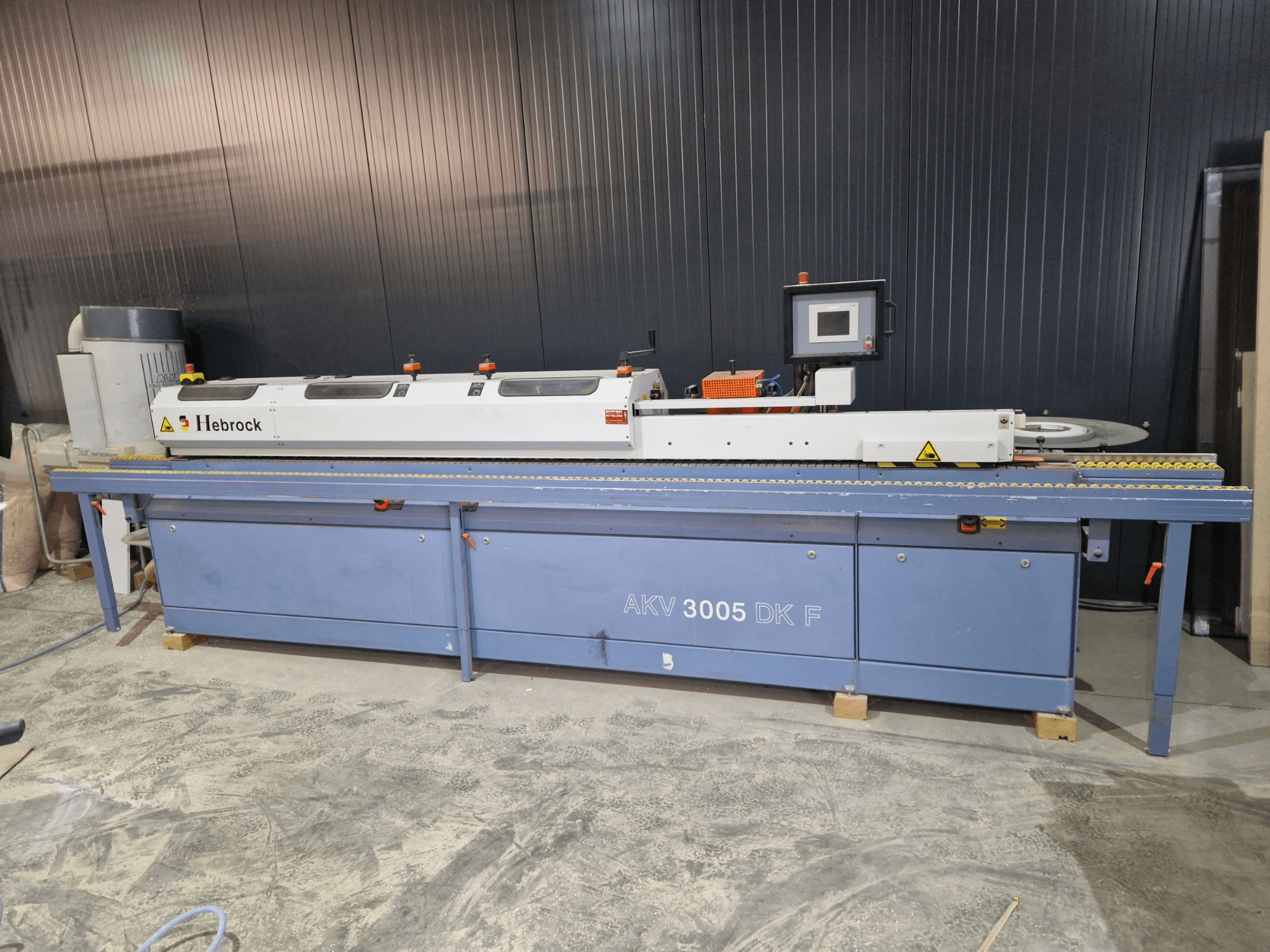

Edgebander manufactured in 2004. This HEBROCK AKV 3005 DK-F features a maximum edge thickness of 3 mm and accommodates workpiece thicknesses from 8 to 60 mm. It includes a jointing milling unit with 2 milling heads, a gluing tank with a contact roller, and a combination milling unit that is pneumatically adjustable. If you are looking to get high-quality edgebanding capabilities, consider the HEBROCK AKV 3005 DK-F machine we have for sale. Contact us for further details.
Overview
- brand: HEBROCK
- year: 2004
- MODEL: AKV 3005 DK-F
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Technical Information - HEBROCK AKV 3005 DK-F
Dimensions
- Machine Height: 1530 mm
- Machine Length: 4700 mm
- Machine Weight: 1150 kg
- Machine Width: 1200 mm
Additional Information
Max. edge thickness: 3 mm
Workpiece thickness range: 8–60 mm
Feed speed: approx. 10 m/min
Readiness time: approx. 5 min
Minimum workpiece length: 190 mm
Minimum workpiece width: 80 mm
Control: PLC
Preparation for interchangeable trays
Units/Stations:
Jointing milling unit with 2 milling heads
Gluing tank with contact roller
Pressure zone
Trim shear
Trim saw
Combination milling unit (flush/chamfer/radius), pneumatically adjustable
2 milling stations
Corner copying unit
Short surface scraper
Radius scraper
Spraying unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
