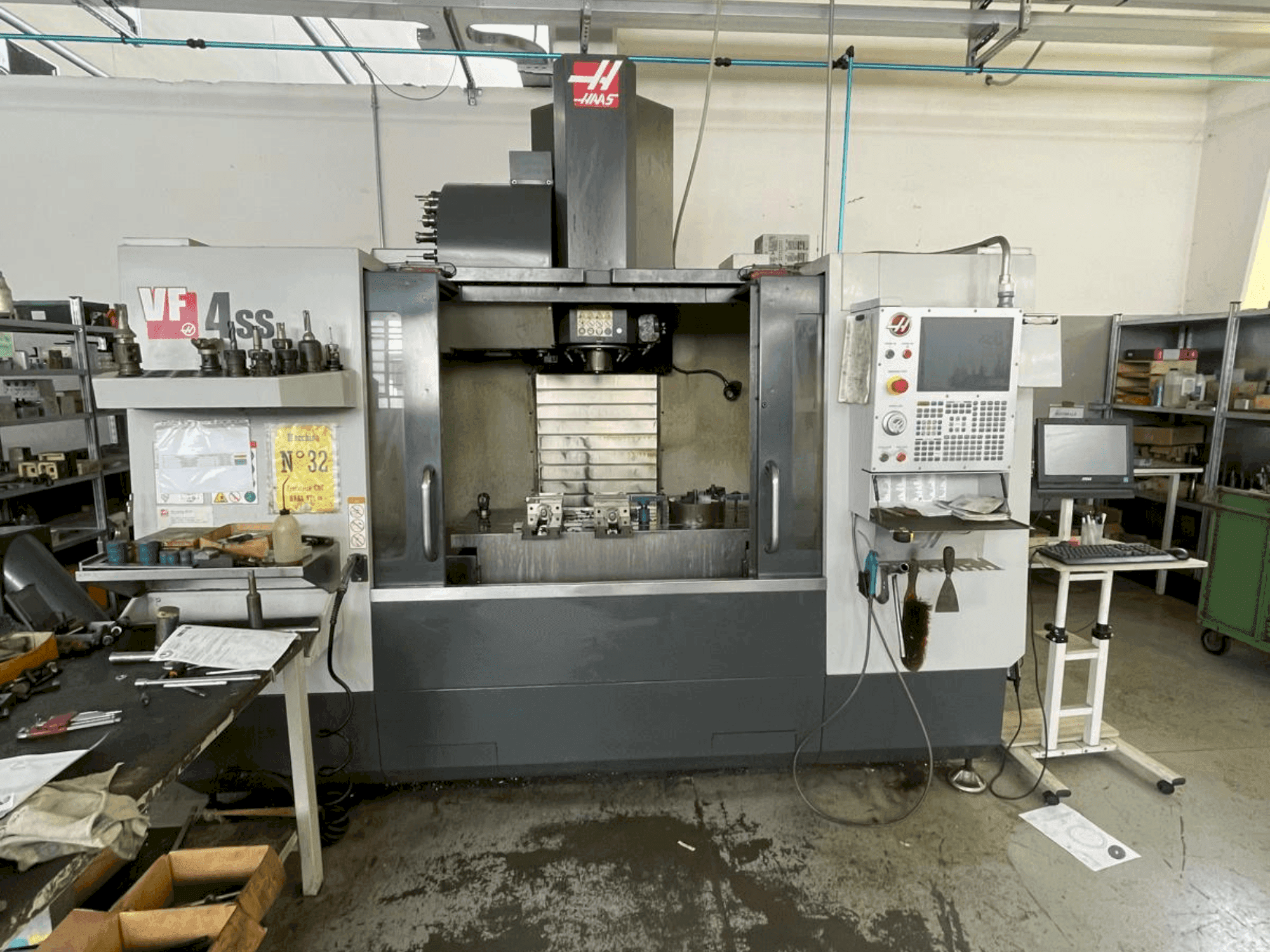

This 3-axis HAAS VF4SS vertical machining center was manufactured in 2019. It features a spindle with a maximum speed of 12,000 rpm and a power of 22.4 kW. The machine offers a travel range of X=1270 mm, Y=508 mm, Z=635 mm, and a rapid feedrate of 35.6 m/min on all axes. The table can support up to 794 kg. Consider the opportunity to buy this HAAS VF4SS vertical machining center. Contact us for more information.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF4SS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF4SS
General Data
- Measurements width: 2600 mm
- Measurements depth: 3870 mm
- Measurements height: 2770 mm
- Machine weight: 6260 kg
Control Unit
- Brand: HAAS
- Model: na
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 224 kW
- Tool taper: CT40 / BT40 / HSK-A63
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 635 mm
Table
- TSlots size: 80 mm
- Number of tslots: 5
- Table load: 794 kg
Tools
- Max weight: 5.4 kg
- Max tool length: 330 mm
General Data
- Measurements width: 2600 mm
- Measurements depth: 3870 mm
- Measurements height: 2770 mm
- Machine weight: 6260 kg
Control Unit
- Brand: HAAS
- Model: na
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Spindle motor power: 224 kW
- Tool taper: CT40 / BT40 / HSK-A63
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 635 mm
Table
- TSlots size: 80 mm
- Number of tslots: 5
- Table load: 794 kg
Tools
- Max weight: 5.4 kg
- Max tool length: 330 mm
Additional Information
Additional equipment
- Technical manuals and documentation
- Chip conveyor
- Optional tools included
- Loading at our facility available
Machine Benefits
Technical Machine Benefits
- Max torque: 122 nm @ 2000 rpm
- Liquid cooled – air/oil lubrication
- Size: 1321 x 495 mm
- Type: smtc – 30+1 tool positions
- Tool change time: 1. 8 s
- Rapid: 35. 6 m/min on all axes
- Max thrust z-axis: 17459 n
- Voltage: 220/440 v – 3
- Phase max current draw: 70 a (at 220 v)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
