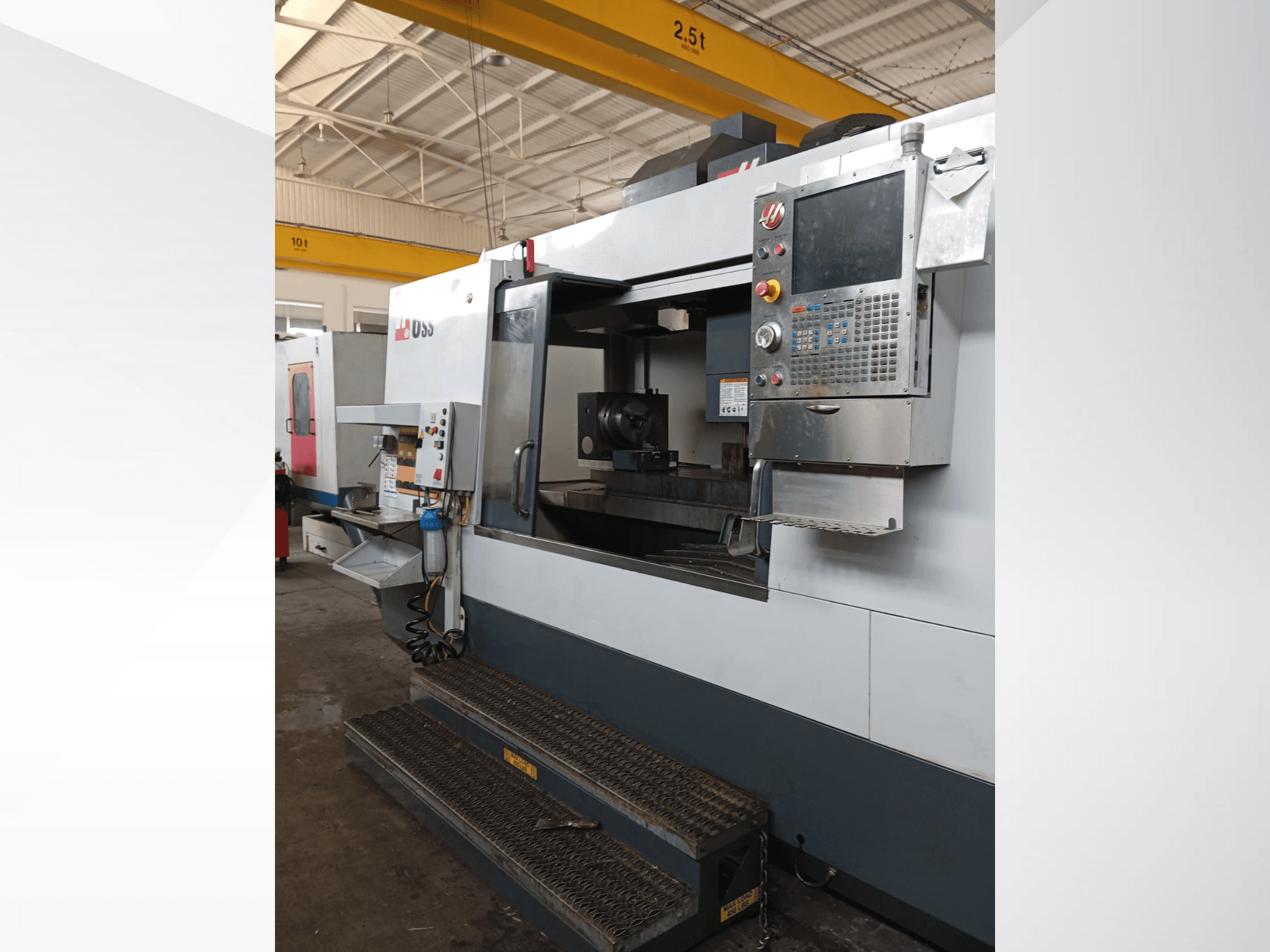

This 3-axis HAAS VF-6SS was manufactured in 2014, featuring a robust direct-drive spindle with a 22.4 kW motor and a maximum speed of 12,000 rpm. It supports a table load of 907 kg and includes a side-mount tool changer with a 30 + 1 tool capacity. Ideal for high-precision machining with rapid feed rates up to 30.5 m/min. If you are looking to get high-quality milling capabilities consider the HAAS VF-6SS machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2014
- MODEL: VF-6SS
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-6SS
Movement
- Number of Axes: 3
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Additional Information
Spindle: Direct-drive, 22.4 kW (30 hp) motor
Max Spindle Speed: 12000 rpm
Spindle Taper / Tool Holder: CT40 / BT40 / Optional HSK-A63
Table Size: 1626 mm × 711 mm
Table Load Capacity: 907 kg
Tool Changer (ATC): Side‑mount, Capacity 30 + 1 tools
Coolant Capacity: 360 L
Air Requirements: 113 L/min @ 6.9 bar
Electrical Supply: 220 V (Standard) / 440 V Optional, 3‑phase – Full Load Current 70 A (220 V) / 35 A (440 V)
Spindle to Table Distance (Max / Min): 864 mm / 102 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
