Used Vertical Machining Centre HAAS VF-3 - 2014 - for sale | gindumac.com

Show in original language

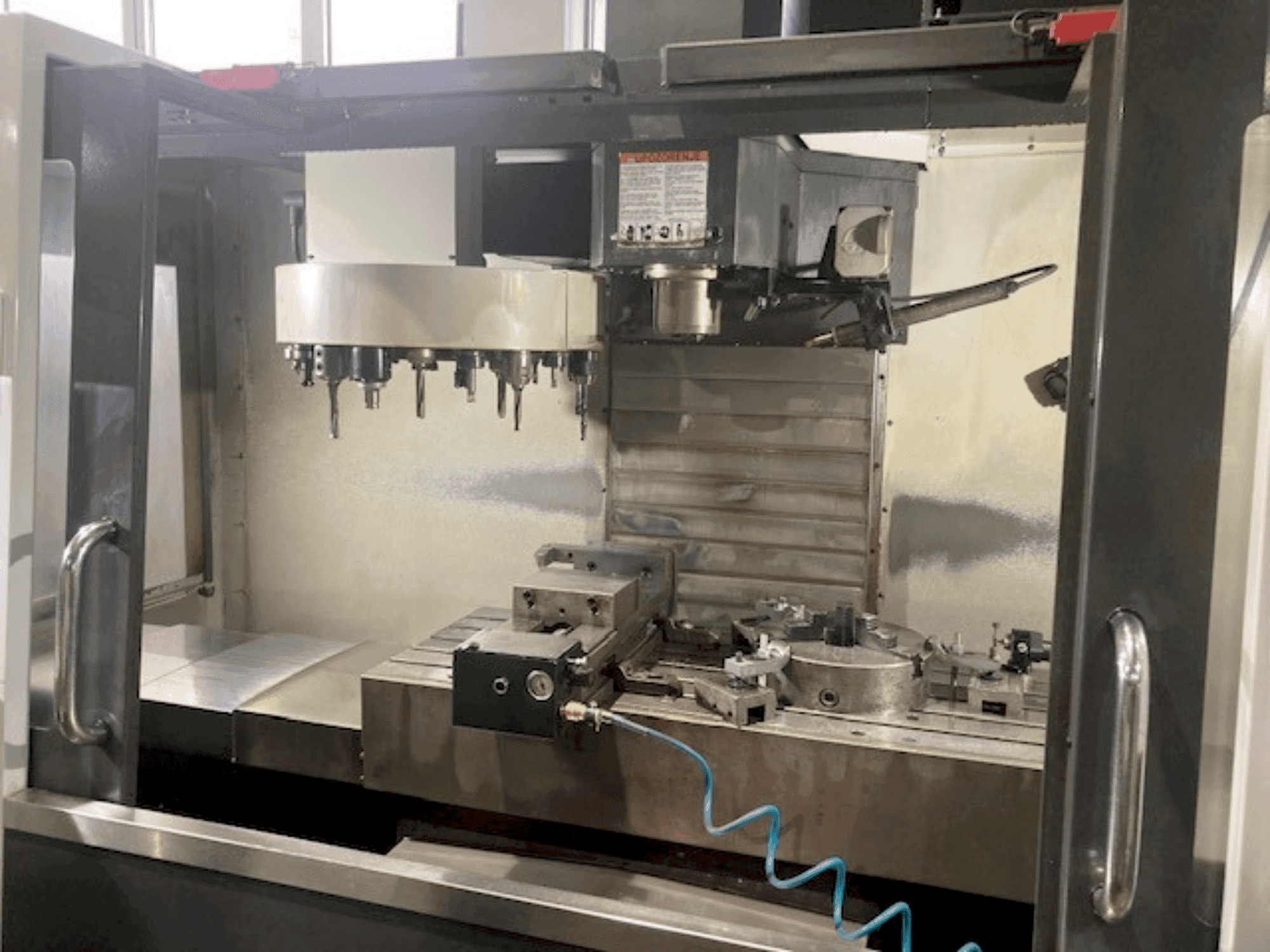

This 3-axis milling machine was manufactured in 2014. Equipped with a powerful 22.4 kW spindle and precise positioning accuracy of 0.005 mm, this HAAS VF-3 offers exceptional performance for machining tasks. Its 20-tool horizontal carousel magazine ensures efficient tool changes, while the 15" LCD color monitor enhances user interface. With a maximum table load of 1588 kg and rapid traverse rates of 25.4 m/min, buy this HAAS VF-3 milling machine for versatile and reliable production capabilities. Contact us for further information.

Overview

brand: HAAS
year: 2014
MODEL: VF 3
application type: Milling
Location: Serbia
machine type: Vertical Machining Centre

Technical Information - HAAS VF 3

Dimensions

Machine Weight: 5670 kg
Table Length: 1219 mm
Table Load: 1588 kg
Table Width: 457 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 22.4 kW
Spindle Speed: 8100 RPM
Tool Stations: 15

Additional Information

Machine Benefits

Qualitative Machine Benefits

Protective cabin around the machine according to ce standards
15" lcd color monitor
Rs-232 port (pc-cnc communication via serial port)
Usb port (for transferring and directly running programs from a usb data carrier)
1 mb of user memory
Coolant system with a 208 l reservoir
Automatic centralized lubrication system
Rigid tapping - synchronous threading with a tapping attachment without compensation

Technical Machine Benefits

Maximum torque: 122 nm at 2000 rpm
Power transmission from motor: in line direct drive (direct motor-spindle, no gearbox)
Taper and tooling: iso40, din 69871
Maximum cutting feedrate: 16. 5 m/min
Traverses: x- 1016 mm, y- 508 mm, z- 635 mm
Maximum motor load: x and y axes - 11343 n, z axis - 18683 n
Tool magazine type: horizontal carousel without tool changer arm
Tool change time: 4. 2
Positioning: +/- 0,005mm
Repeatability: 0. 003 mm

Extra Information

- Pneumatic installation (requirement): Emulsion tank capacity: 113 L/min, 6.9 bar - Electrical power supply: 3x400 V, 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
