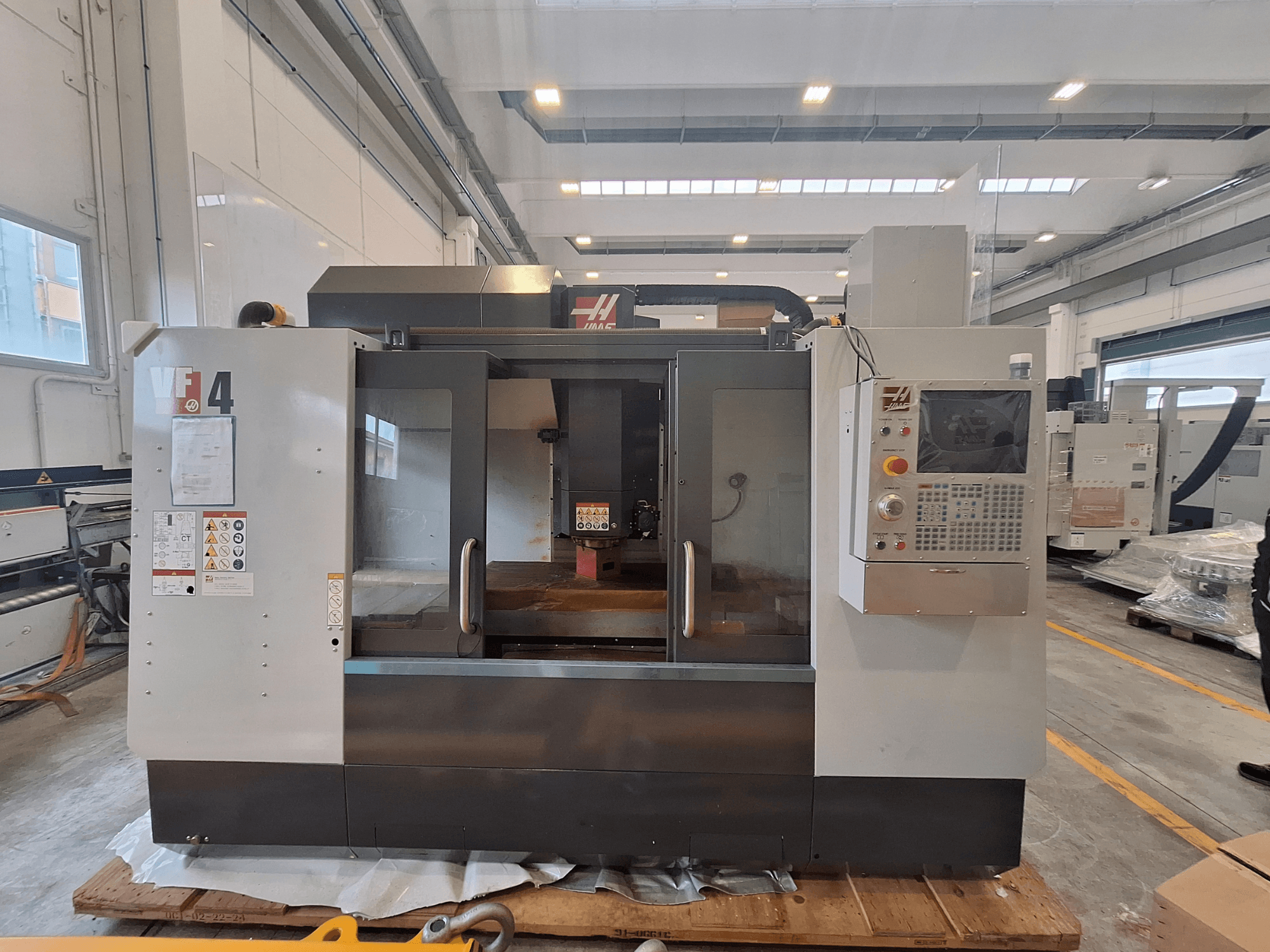

HAAS - VF-4IT-MIL-HAA-2024-00002

Feed Force: X: 11343 N; Y: 11343 N; Z: 18683 N

Rapid Traverse: 25.4 m/min

Outer length: 1321 mm

Outer width: 457 mm

Tslots size: 15.90 mm to 16.00 mm

Number of tslots: 5

Max distance between vertical spindle and table: 742 mm

Table load: 1588 kg

Number of tool slots: 30+1

Max tool length: 330 mm

Main electronic connection: 220 VAC / 440 VAC, 3 Phase

Air pressure: 5.5 bar

Air supply: 113.0 L/min @ 6.9 bar

Showroom Machine

Spindle nose to table (~ min): 107 mm

Max torque: 122.0 Nm @ 2000 rpm

Max torque with optional gearbox: 339 Nm @ 450 rpm

Bearing lubrication: Air / Oil Injection

Cooling: Liquid Cooled

T-Slot center distance: 80 mm

Max cutting feedrate: 16.5 m/min

Tool changer type: Side-Mount Tool Changer (SMTC)

Max tool diameter (full): 64 mm

Max tool weight: 5.4 kg

Tool-to-tool (avg): 2.80 s

Chip-to-chip (avg): 3.60 s

Coolant capacity: 208 L

Inline air hose: 3/8 in

Coupler (Air): 3/8 in

Input AC voltage (3 Phase) low: 220 VAC (Full Load Amps: 70 A)

Input AC voltage (3 Phase) high: 440 VAC (Full Load Amps: 35 A)
