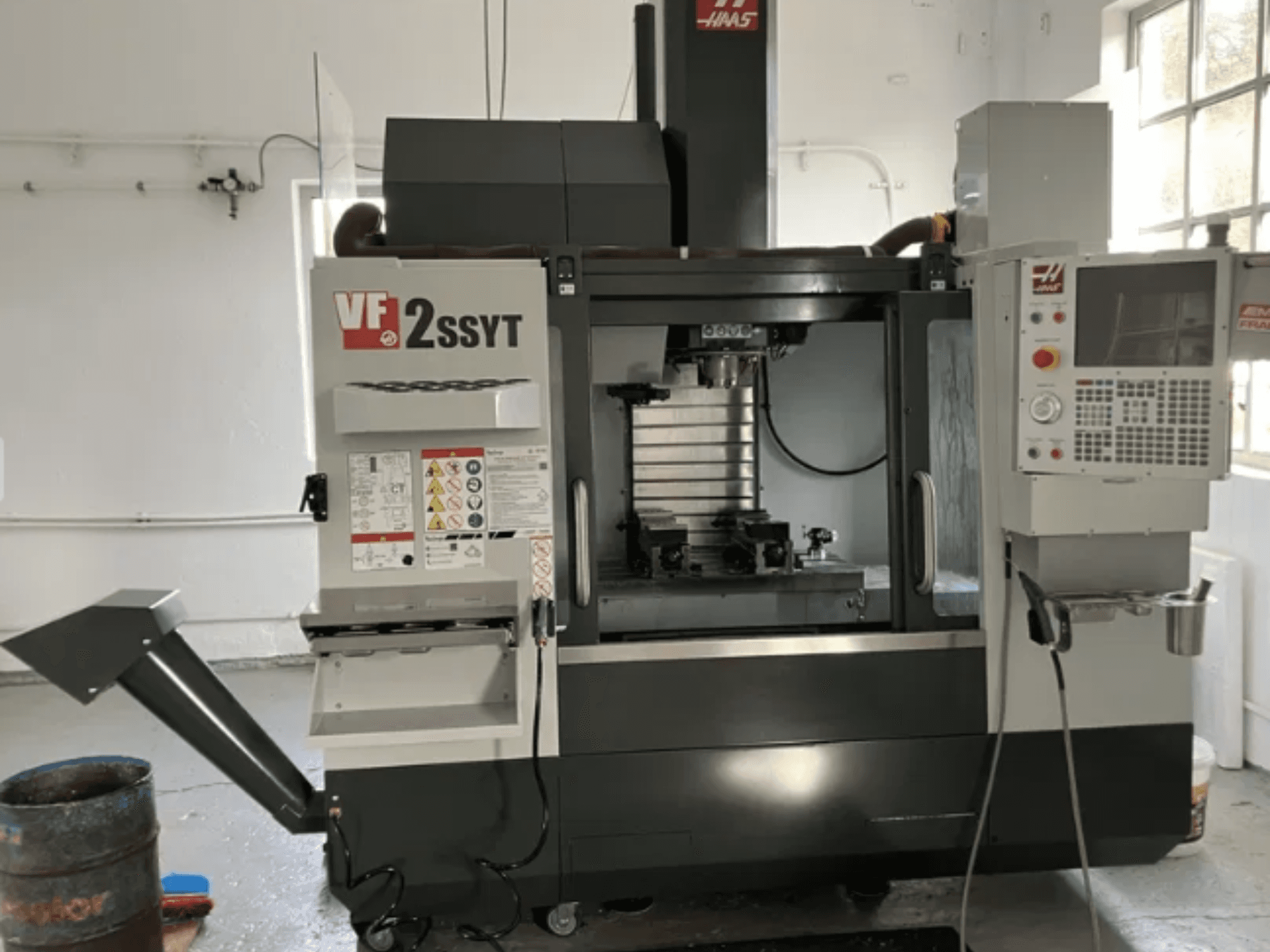

HAAS - VF-2SSYT RO-MIL-HAA-2024-00001

• Spindle nose to table (max/min): 610 / 102 mm

• Table:

  • Size: 914 x 457 mm

  • T-slots: 3

  • T-slot width: 15.9–16 mm

  • T-slot center distance: 125 mm

• Spindle:

  • Max torque: 122 Nm @ 2000 rpm

  • Drive: Inline Direct-Drive

  • Taper: CT40 / BT40 / HSK-A63 (depending on configuration)

  • Bearing lubrication: Air/Oil injection

• Tool changer:

  • Type: SMTC

  • Capacity: 30+1 tools

  • Max tool diameter: 64 mm (127 mm with adjacent pocket empty)

  • Max tool length: 279 mm

  • Tool-to-tool: 1.8 s

  • Chip-to-chip: 2.4 s

• Feedrates:

  • Max cutting feed: 21.2 m/min

  • Rapids (X/Y/Z): 35.6 / 35.6 / 35.6 m/min

• Axis motors (thrust):

  • X: 8,874 N

  • Y: 8,874 N

  • Z: 13,723 N

• Electrical:

  • Input voltage (low): 220 VAC, 70 A full load

  • Input voltage (high): 440 VAC, 35 A full load

• Coolant: Capacity 208 L

• Air requirements:

  • Air required: 113 L/min @ 6.9 bar

  • Minimum pressure: 5.5 bar

• 4th-axis ready

Additional equipment

• Mist/vapor extraction system

• Automatic water and oil dosing system for coolant

• Integrated coolant oil separator

• Renishaw probe system

• 2 vises

• Complete set of high-quality toolholders, end mills, and drills
