➤ Used Goodway SW 42 For Sale | gindumac.com

Show in original language

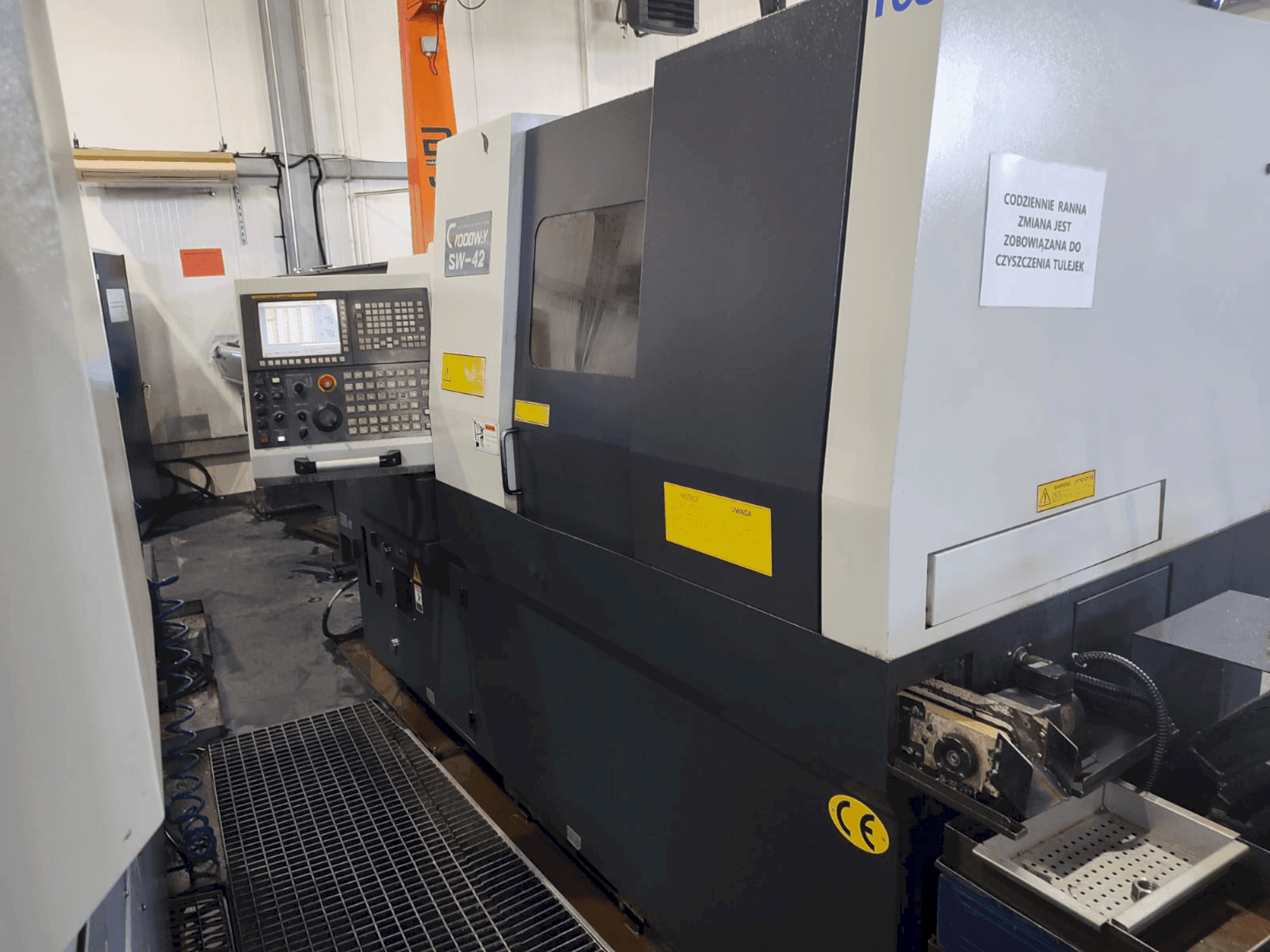

This 7-axis Goodway SW 42 swiss type turning machine was manufactured in 2014. Ideal for precision and complex machining tasks, it offers advanced functionality in a compact design. Consider the opportunity to buy this Goodway SW 42 swiss type turning machine. Contact us for more information.

Overview

brand: Goodway
year: 2014
MODEL: SW 42
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Goodway SW 42

General Data

Measurements width: 1550 mm
Measurements depth: 2950 mm
Measurements height: 2150 mm
Machine weight: 3300 kg

Control Unit

Brand: FANUC
Model: Series 31i model B

Main drive

Spindle speed range: 25 - 6000 rpm 1/MIN
Spindle motor power: 5.5 / 7.5 kW
Spindle bore: 42 mm
Number of axis: 7

Media

Chip conveyor: Yes

Additional Equipment

- High-pressure cooling system
- Parts conveyor belt

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 42 mm / turning diameter over cross slide: 42 mm / turning length: 110 mm
- - Total power consumption: 25 kva
- - 7 axes: x, z, y, c, z2, x2, c2
- - 5-position tool holder: 20 x 20 mm / 5-position drilling holder
- - 4 driven cross drills: max. 6000 rpm / 4 driven backworking tools: max. 5000 rpm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
