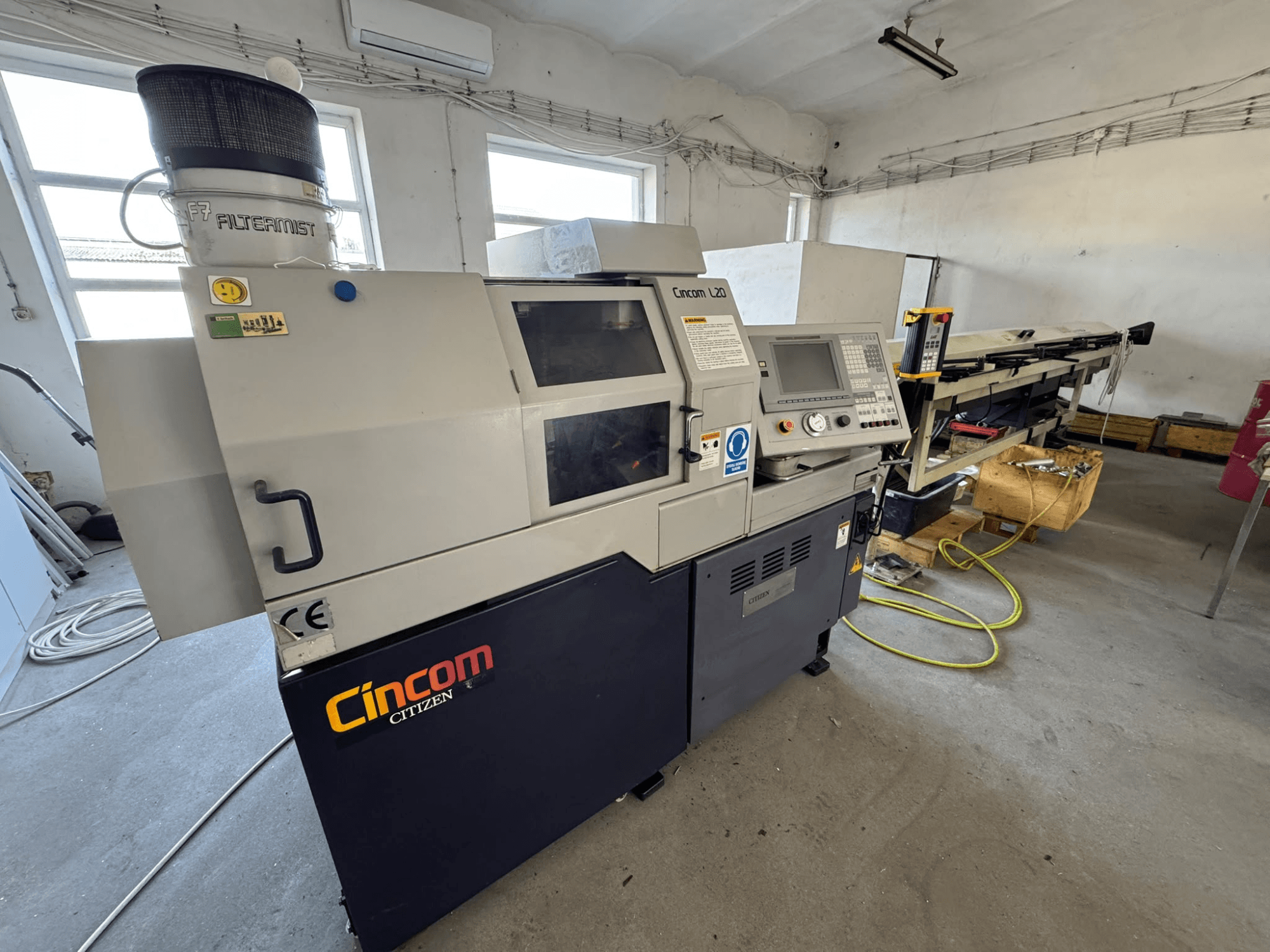

Citizen - Cincom L20 VIIPL-TUR-CIT-2000-00001

• Maximum machining diameter: 20 mm

• Recommended machining diameter: 6–20 mm

• Maximum machining length: 200 mm per chucking

• Main spindle speed control: Stepless, S5-digit

• Main spindle indexing: 1 degree

• Maximum front drilling diameter: 10 mm

• Maximum front tapping capacity: M8 with tap / M6 with die

• Back spindle: Included

• Back spindle maximum chucking diameter: 20 mm

• Back spindle speed: 200–8000 rpm

• Back spindle speed control: Stepless, S4-digit

• Back spindle indexing: 1 degree

• Maximum back drilling diameter: 8 mm

• Maximum back tapping capacity: M6

• Maximum back machining length: 80 mm

• Maximum workpiece projection from back spindle: 30 mm

• Cross live tool drilling capacity: 7 mm

• Cross live tool tapping capacity: M6

• Cross live tool speed: 200–5000 rpm

• Front live tool drilling capacity: 5 mm

• Front live tool tapping capacity: M5

• Front live tool speed: 200–5000 rpm

• Back live tool drilling capacity: 4 mm

• Back live tool speed: 200–5000 rpm

• Maximum number of tools: 16

• Turning tool stations: 7

• Cross drilling tool stations: 3

• Front drilling tool stations: 3

• Back drilling/machining tool stations: 3

• Turning tool shank size: 12 x 12 x 130 mm

• Rotary tool shank diameter: 7 mm with ER11 / AR11, 10 mm with ER16 / AR16

• Tool holder sleeve diameter: 19.05 mm

• Guide bushing: L20, 20.01 mm

• X1-axis stroke: 45.5 mm

• Y1-axis stroke: 294 mm

• Z1-axis stroke: 205 mm

• X2-axis stroke: 316 mm

• Z2-axis stroke: 180 mm

• Rapid traverse X1 / Y1 / Z1: 20 m/min

• Rapid traverse X2 / Z2: 20 m/min

• Minimum input increment X1 / Y1 / Z1: 0.001 mm

• Minimum input increment X2 / Z2: 0.001 mm

• Maximum bar length: 2500 mm

• Centre height: 1050 mm

Additional equipment

• Bar feeder: LNS Hydrobar Mini-Sprint S2
