+GF+ Mikron VCE 1000 Pro

Photo Gallery

+GF+ - Mikron VCE 1000 ProHU-MIL-GFX-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used +GF+ Mikron VCE 1000 Pro For Sale | gindumac.com

Show in original language

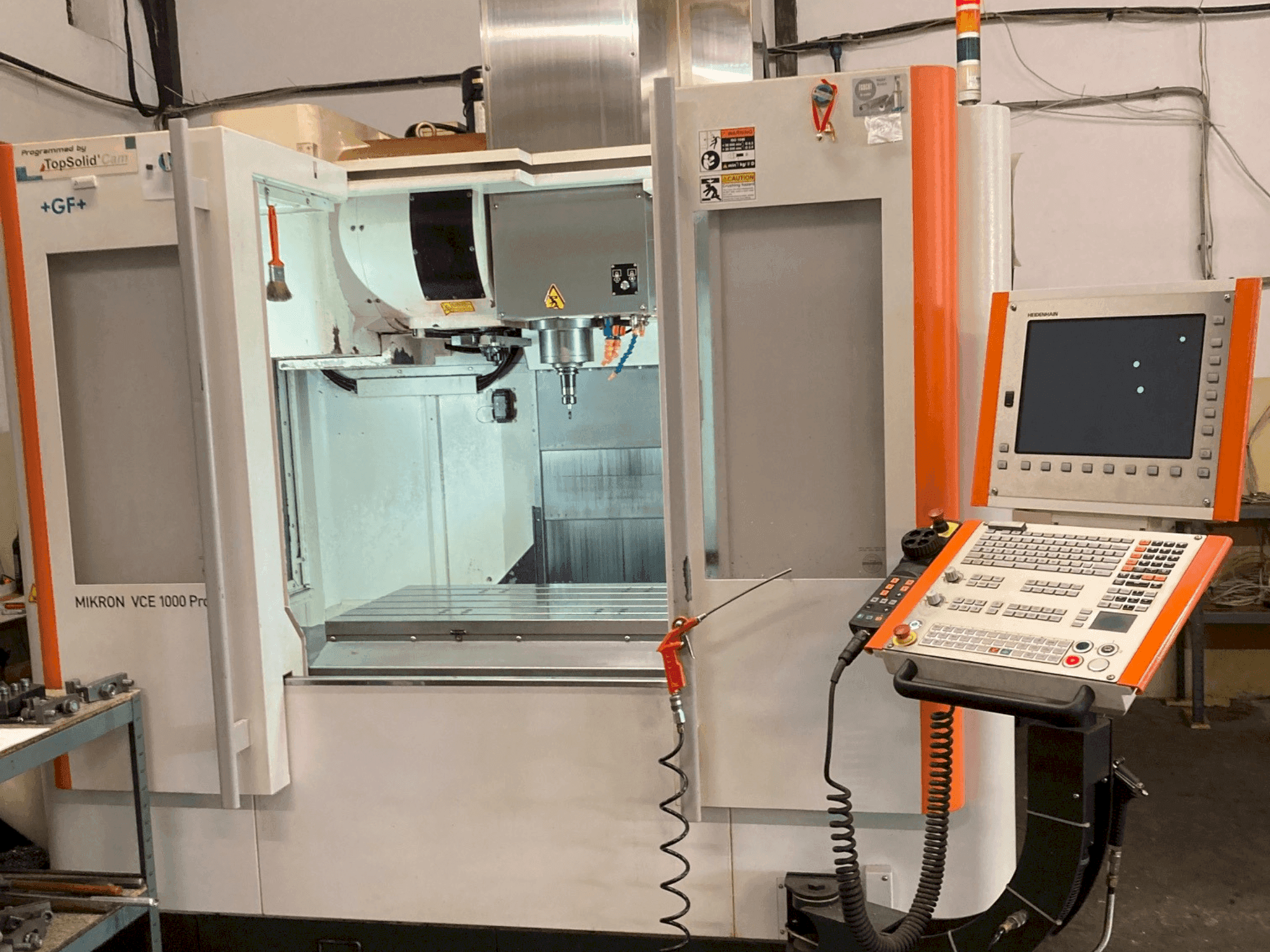

This 3-axis +GF+ Mikron VCE 1000 Pro was manufactured in 2015. It features a Heidenhain TNC 620 CNC control, a travel range of X: 1020 mm, Y: 560 mm, Z: 600 mm, and a side-mounted 24-position tool magazine. The machine supports a maximum spindle speed of 10,000 rpm, with an option for 16,000 rpm, and rapid travel speeds up to 40 m/min on X & Y axes. Contact us for more information about this machine.

Overview

brand: +GF+
year: 2015
MODEL: Mikron VCE 1000 Pro
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - +GF+ Mikron VCE 1000 Pro

Dimensions

Machine Depth: 3300 mm
Machine Height: 2270 mm
Machine Weight: 6500 kg

Movement

Number of Axes: 3
X-axis Travel: 1020 mm
Y-axis Travel: 560 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

Additional equipment

Cooling System: Integrated filter unit and chip conveyor
Tool Change Time: Short cycles thanks to fast tool changer system

Machine Benefits

Technical Machine Benefits

Type: 3-axis vertical cnc machining center
Table size: 1000 × 560 mm
Coolant capacity: 300 liters
Maximum spindle speed option: 16000 rpm
Spindle torque: 149 nm
Tool changer type: side-mounted, 24-position tool magazine

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
