Akira Seiki - RMV 700 APC HU-MIL-AKI-2013-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Akira Seiki RMV 700 APC For Sale | gindumac.com

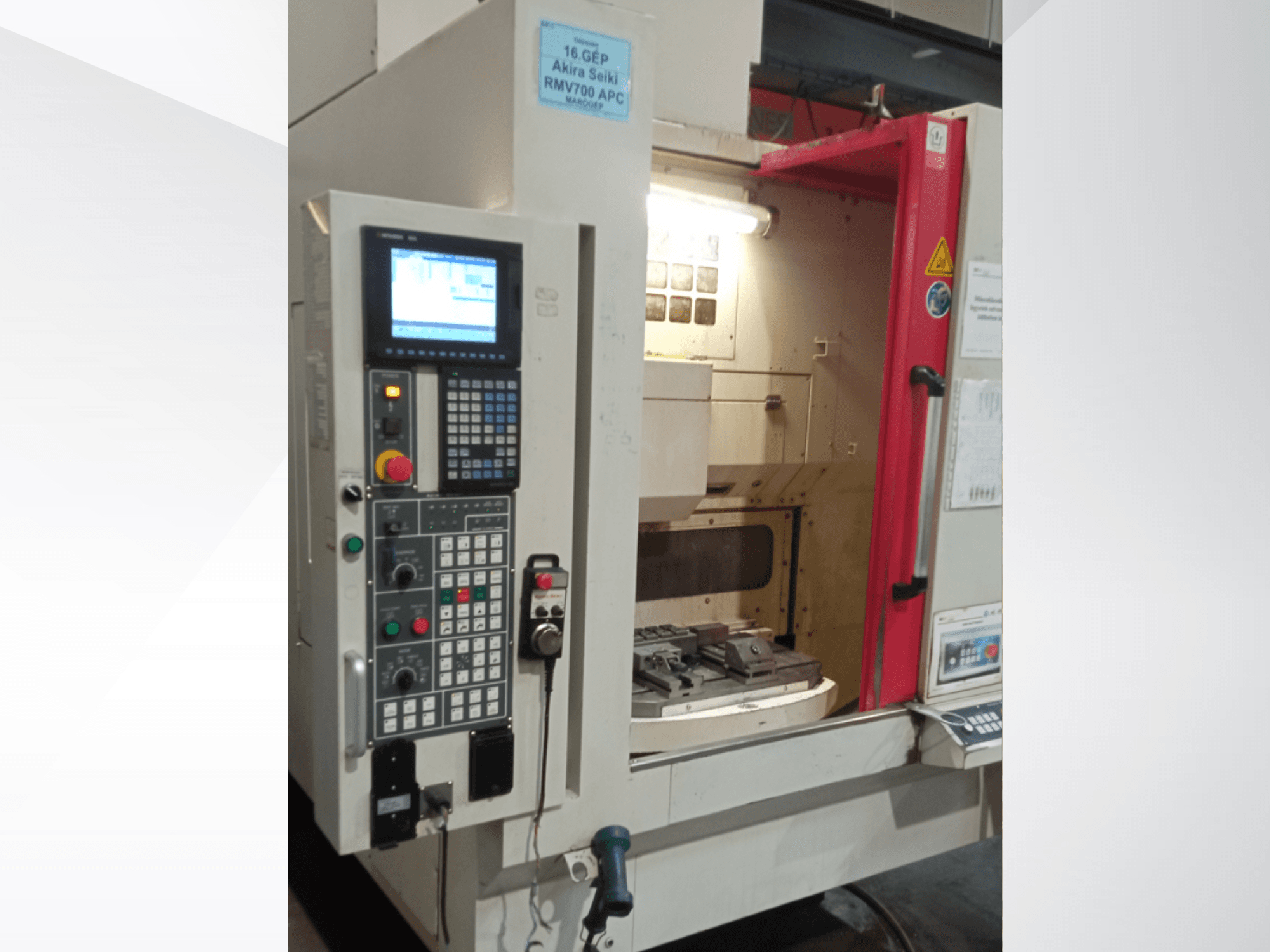

This 3-axis Akira Seiki RMV 700 APC was manufactured in 2013. It features an X-axis travel of 700 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The machine includes a robust table size of 700 mm x 400 mm with a maximum load capacity of 160 kg. If you are looking to get high-quality machining capabilities, consider the Akira Seiki RMV 700 APC vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Akira Seiki
- year: 2013
- MODEL: RMV 700 APC
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - Akira Seiki RMV 700 APC
Dimensions
- Machine Height: 2600 mm
- Machine Length: 2630 mm
- Machine Weight: 5600 kg
- Machine Width: 1800 mm
- Table Load: 160 kg
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
Additional Information
Table: 700 × 400 mm
Spindle: 12 HP (max 15 HP); cooling: air, through-spindle coolant (CTS), and external coolant
Rapid traverse (X/Y/Z): 48 / 60 / 72 m/min
Accuracy: positioning 0.012 mm; repeatability ±0.005 mm
Tool changer: 24 + 1 servo-controlled; max tool Ø 75 mm; max tool length 200 mm; max tool weight 4.5 kg
Change times: tool-to-tool 1.9 s; chip-to-chip 3.4 s
Control: AKIRA Mi:845 (compatible with FANUC G-code)
General data: coolant tank 150 L; power requirement 25 kVA; required air pressure 0.5 MPa
Application: suitable for light machining, especially non‑ferrous metals and composite materials
Additional equipment
Twin pallet system (APC)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
