➤ Used GEIBEL & HOTZ RS 1000 CU For Sale | gindumac.com

Show in original language

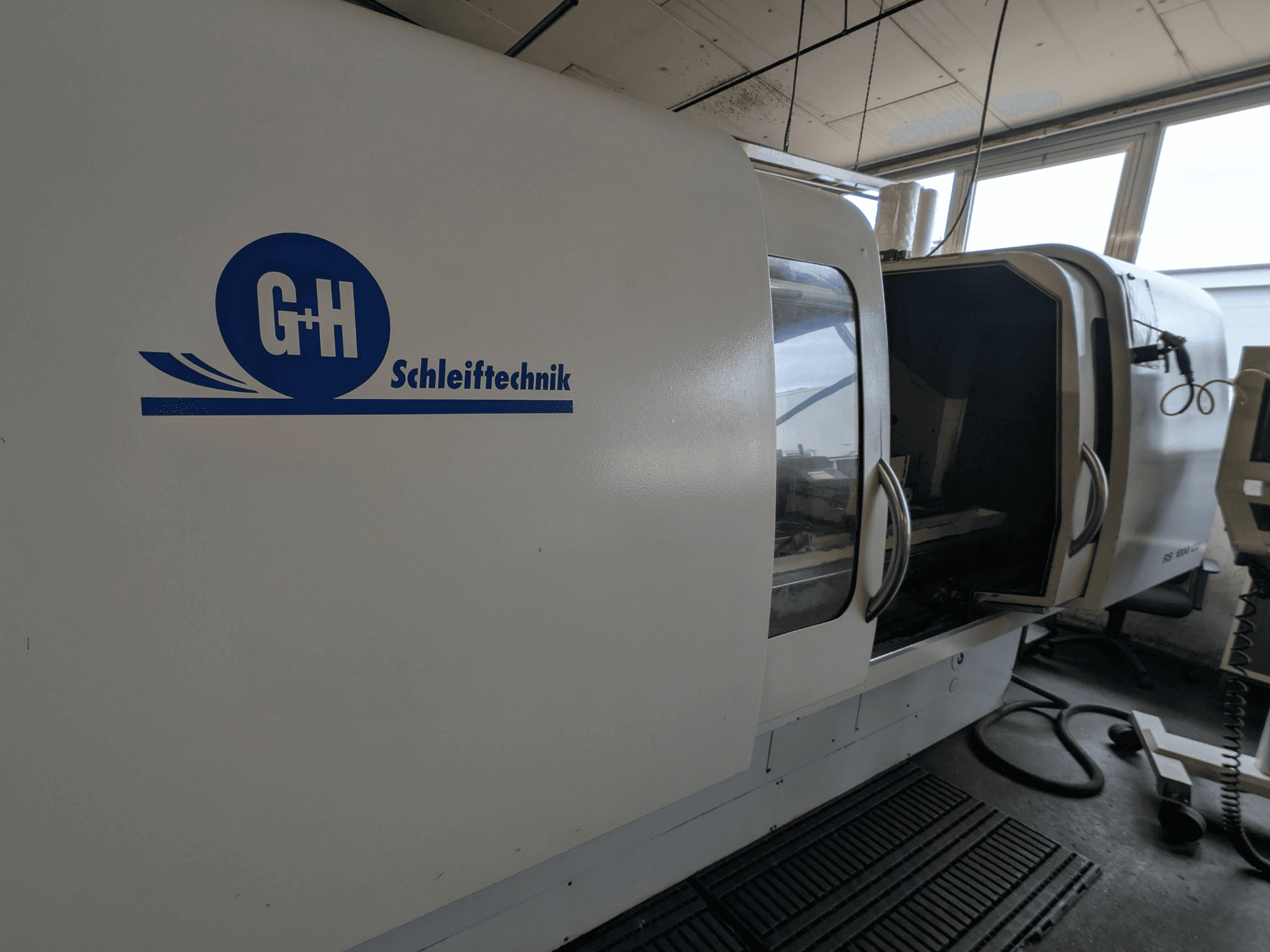

Cylindrical grinding machine manufactured in 2006. This GEIBEL & HOTZ RS 1000 CU features a center distance of 1000 mm and a maximum swing diameter of 355 mm. It is equipped with an electromechanical X-axis and Z-axis, offering feed rates of up to 12,000 mm/min. If you are looking to get high-quality grinding capabilities, consider the GEIBEL & HOTZ RS 1000 CU machine we have for sale. Contact us for further details.

Overview

brand: GEIBEL & HOTZ
year: 2006
MODEL: RS 1000 CU
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
control unit brand: SIEMENS

Technical Information - GEIBEL & HOTZ RS 1000 CU

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840D with SIMODRIVE 611D

Dimensions

Machine Weight: 6200 kg

Movement

Number of Axes: 2

Additional Information

Current defects in need of repair:
- Measuring probe is defective
- Switch in the coolant reservoir for controlling the pump is defective
Axis configuration: 2-axis (X, Z)
Center distance: 1000 mm
Center height: 180 mm
Max. swing diameter: 355 mm
Max. workpiece weight: 150 kg between centers; 60 kg in chuck (including clamping device)
X-axis:
- Drive: electromechanical with ball screw
- Feed rate: 0.01–8,000 mm/min
- Measuring system: glass scale, 0.0005 mm resolution
Z-axis:
- Drive: electromechanical with ball screw
- Feed rate: 0.01–12,000 mm/min
- Measuring system: rotary encoder, 0.001 mm resolution
Workpiece spindle:
- Motor power: 2.0 kW
- Speed: 0–1000 rpm
- Taper: MK5 and KK5 (DIN 55026)
Grinding spindle:
- Motor power: 9 kW
- Speed: 1400 rpm
- Grinding wheel size (standard): 500 × 80 × 203.2 mm
- Bearings: precision rolling bearings
- Lubrication: lifetime lubrication

Required space: approx. 3900 × 2450 × 1800 mm
Power supply: 400 V, 50 Hz, 3-phase
Control voltage: 230/24 V
Installed power: approx. 23 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
