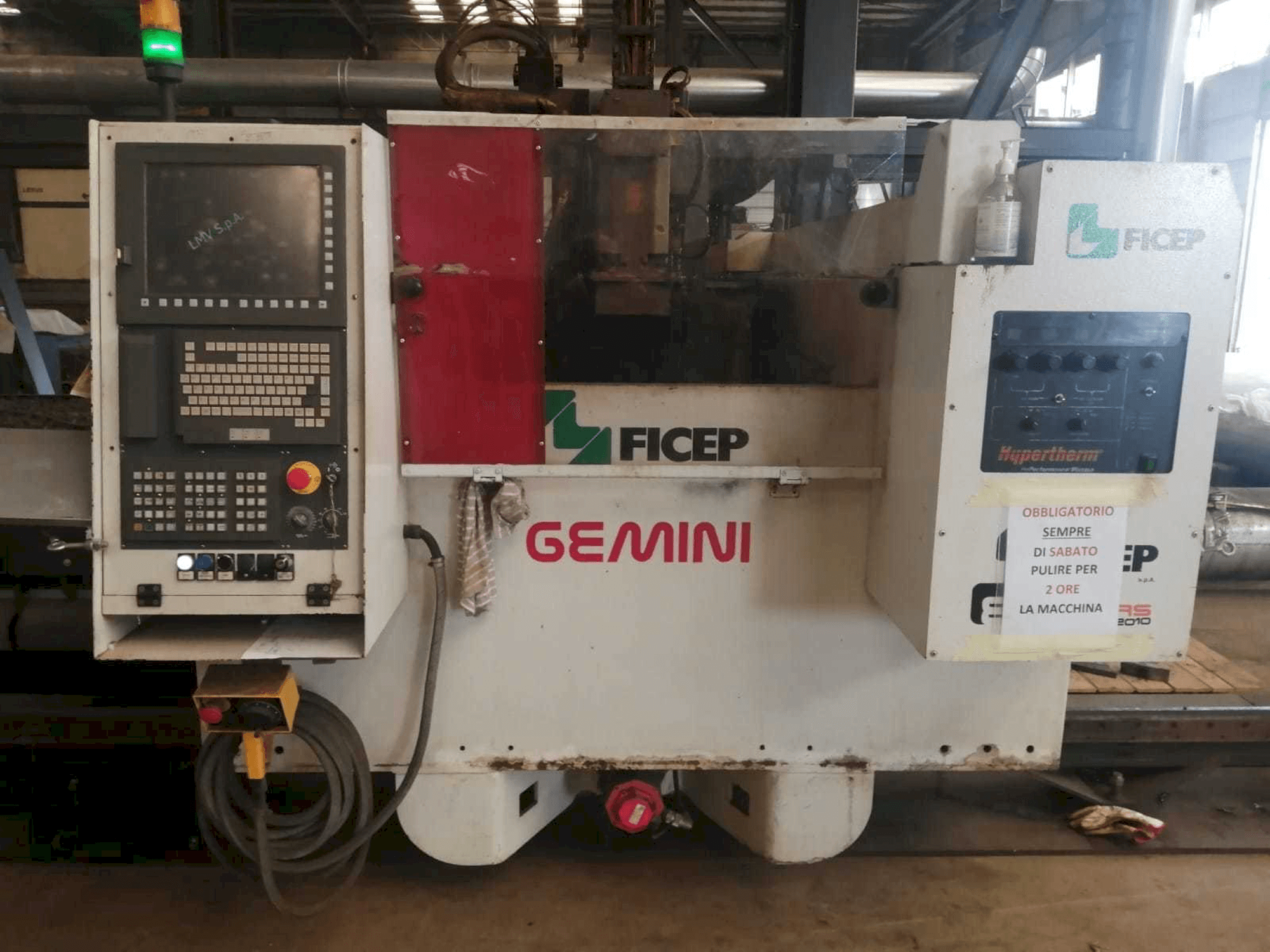

This FICEP GEMINI G32 plasma cutting machine was manufactured in 2010. It works with a spindle speed up to 7000 rpm. It counts with a plate size of 3100 x 6100 mm. This is a complete plate processor solution. It handles light to heavy plates for thermal cutting, marking, drilling, tapping, milling, and bevelling.
Overview
- brand: FICEP
- year: 2010
- MODEL: GEMINI G32
- application type: Laser Cutting
- Location: Italy
- machine type: Plasma Cutting Machine
- availability: Sold
- GINDUMAC ID: IT-LAS-FIC-2010-00001
Technical Information
General Data
- Machine weight: 4800 kg
Main drive
- Spindle speed range: 7000 1/MIN
- Spindle motor power: 15 kw
Additional Information
- Technical Machine Benefits:
- - Plate size: 3100 x 610 mm
- - Plate thickness with plasma: 80 mm
- - Plasma straight torches: 1
- - Plasm bevel torches: 1
- - Plate thickness with oxy: 100 mm
- - Oxy-fuel torches: 3
- - Drilling heads: 1
- - Drilling tools per head: 6
- - Drilling diameter: 40 mm
- - Drilling thickness: 80 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
