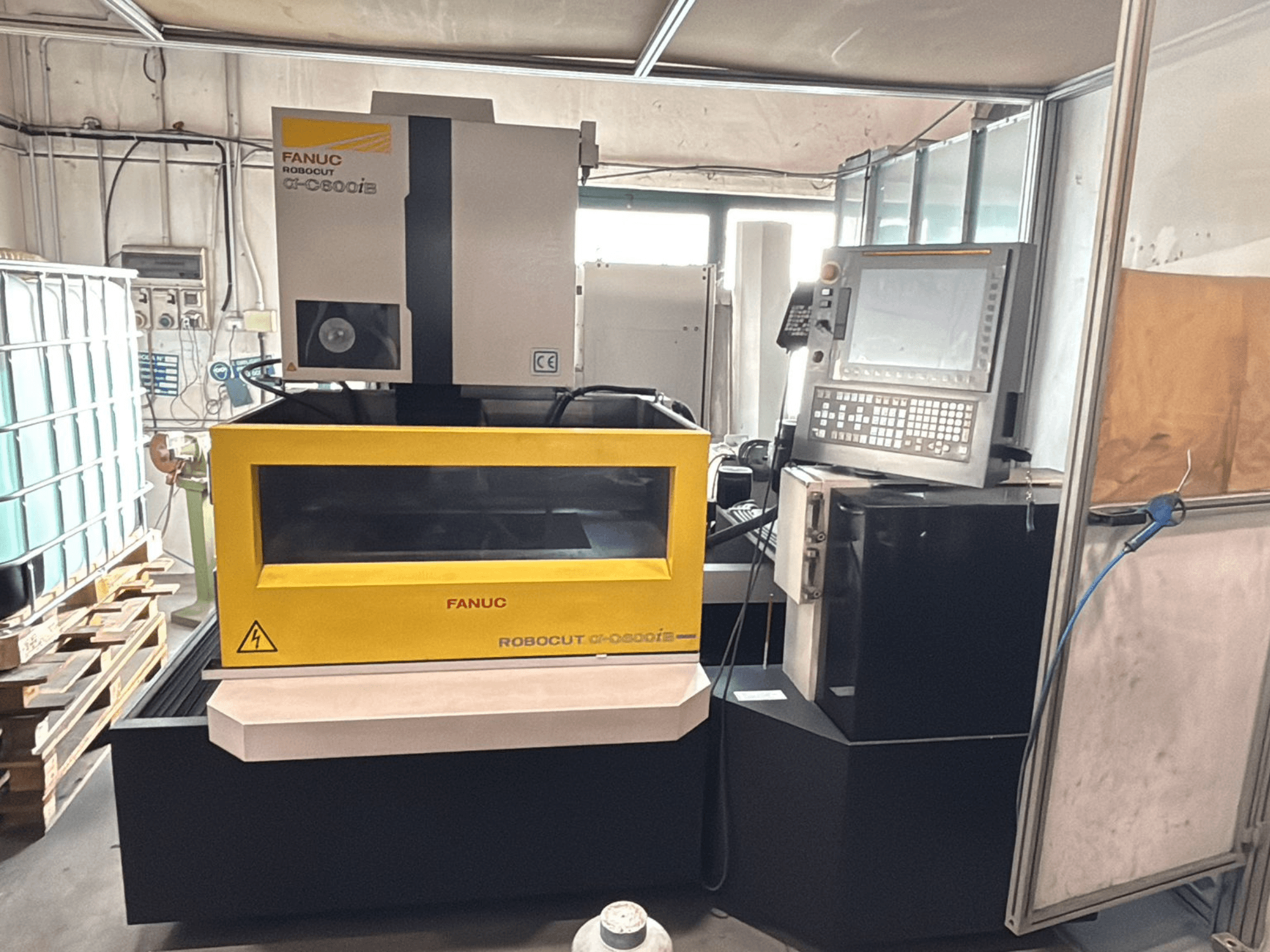

Front view of a FANUC Robocut α-0iE CNC machine with a yellow casing, showcasing control panel and display.
Front view of a FANUC Robocut α-0iE CNC machine with a yellow casing, showcasing control panel and display.

FANUC - ROBOCUT C600IBIT-EDM-FAN-2016-00001

£ 49,810
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis FANUC ROBOCUT C600IB was manufactured in 2016, featuring a maximum workpiece size of 1050 × 820 × 400 mm and a weight capacity of 1000 kg. It includes XY table travel of 600 × 400 mm and Z-axis travel up to 400 mm. The machine supports a wire diameter range of 0.10 to 0.30 mm and is controlled by the FANUC 31i-WB system. Consider the opportunity to buy this FANUC ROBOCUT C600IB wire edm machine. Contact us for more information.

Overview

  • brand: FANUC
  • year: 2016
  • MODEL: ROBOCUT C600IB
  • application type: EDM
  • Location: Italy
  • machine type: Wire EDM Machine

Additional Information

  • Maximum workpiece dimensions: 1050 × 820 × 300 mm

  • Maximum workpiece weight: 1000 kg

  • XY table travel: 600 × 400 mm

  • Z-axis travel: 310 mm

  • UV-axis travel: 200 × 200 mm

  • Table Dimensions (Z-axis 400 mm option)

  • Z travel: 400 mm

  • Max workpiece (standard door): 1050 × 820 × 400 mm

  • Max workpiece (automatic door): 1050 × 775 × 300 mm

  • Maximum taper angle: ±30° / 150 mm

  • Maximum taper angle with 45° guide: ±45° / 70 mm

  • Minimum programming increment: 0.0001 mm

  • Wire diameter: Ø 0.10 – Ø 0.30 mm

  • Maximum wire weight: 16 kg

  • Optional 30 kg wire feed unit

  • Machine footprint: 2440 × 2680 mm

  • Weight: approx. 3000 kg

  • Acoustic noise: LpA: 64 dB / LpCpeak: 81 dB

  • Power supply: AC 200V ±10% (3-phase, 50/60 Hz)

  • AC 220V ±10% (3-phase, 60 Hz)

  • Power consumption: 13 kVA

  • Air supply: Pressure: 0.5–0.7 MPa

  • Flow: 100–110 L/min

  • Connector: Rc1/4

  • Environment: Temperature: 15–30°C (20±1°C recommended for high precision)

  • Humidity: ≤75% RH

  • Clean, oil-mist-free & dust-free environment required

  • Grounding: Type C grounding (≤10 Ω), independent from other machines


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
