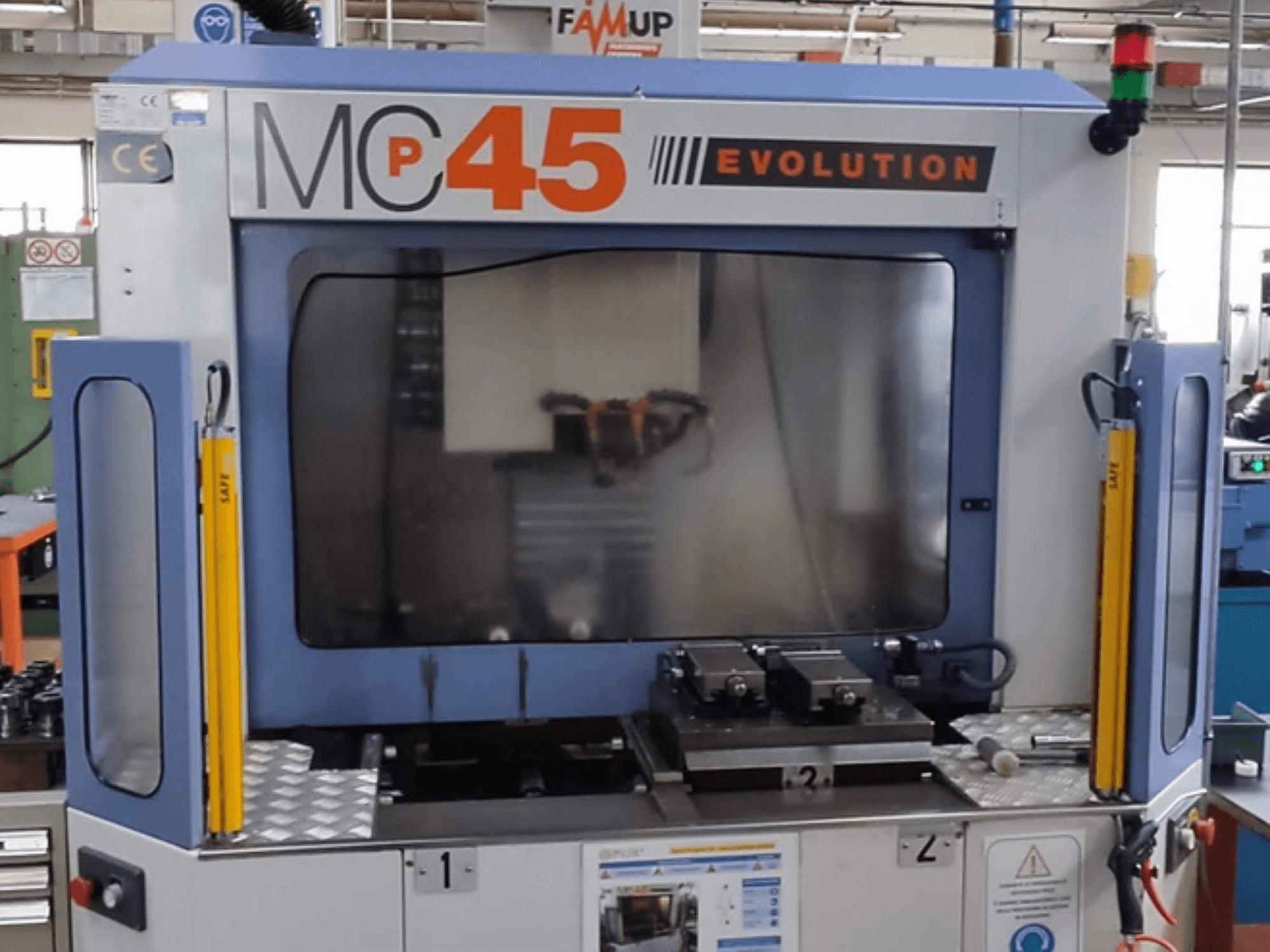

This 3-axis FAMUP MCP 45 E vertical machining centre was manufactured in 2004. It features an X-axis travel of 450 mm, Y-axis travel of 300 mm, and Z-axis travel of 400 mm. The machine is equipped with a spindle speed range of 50 – 10,000 rpm and a maximum table load of 100 kg. If you are looking to get high-quality machining capabilities, consider the FAMUP MCP 45 E machine we have for sale. Contact us for further details.
Overview
- brand: FAMUP
- year: 2004
- MODEL: MCP 45 E
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FAMUP MCP 45 E
Control Unit
- Control Brand: FANUC
- Control Model: 21i-MB
Dimensions
- Machine Height: 2515 mm
- Machine Length: 3130 mm
- Machine Weight: 3100 kg
- Machine Width: 2800 mm
- Table Load: 100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Tool Weight: 4 kg
- Number of Tools: 16
- Spindle Power: 5 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 30
Additional Information
Pallet / table
Table size: 400 x 300 mm
T-slots: 2 x 14 x 80 mm
Central bore: Ø50 H6
Pallet change time: 8 s
Spindle
Motor power S6 40%: 5 kW
Continuous power S1: 3.7 kW
Axis performance
Working feedrate X/Y/Z: 10,000 mm/min
Rapid feedrate X/Y/Z: 30,000 mm/min
Working thrust S1 X/Y: 2,000 N
Working thrust S1 Z: 3,300 N
Measurement system
Indirect measuring system
Accuracy
Positioning accuracy X/Y/Z: ±5 µm
Repeatability X/Y/Z: ±1.5 µm
Reversal accuracy: 3 µm
Tool changer
Tool selection: Random
Max. tool diameter: Ø63 mm
Max. tool length: 150 mm
Tool change time: 1.7 s
Chip-to-chip time: 2.5 s
General data
Total installed power: 10 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
