➤ Used Enshu ES450 For Sale | gindumac.com

Show in original language

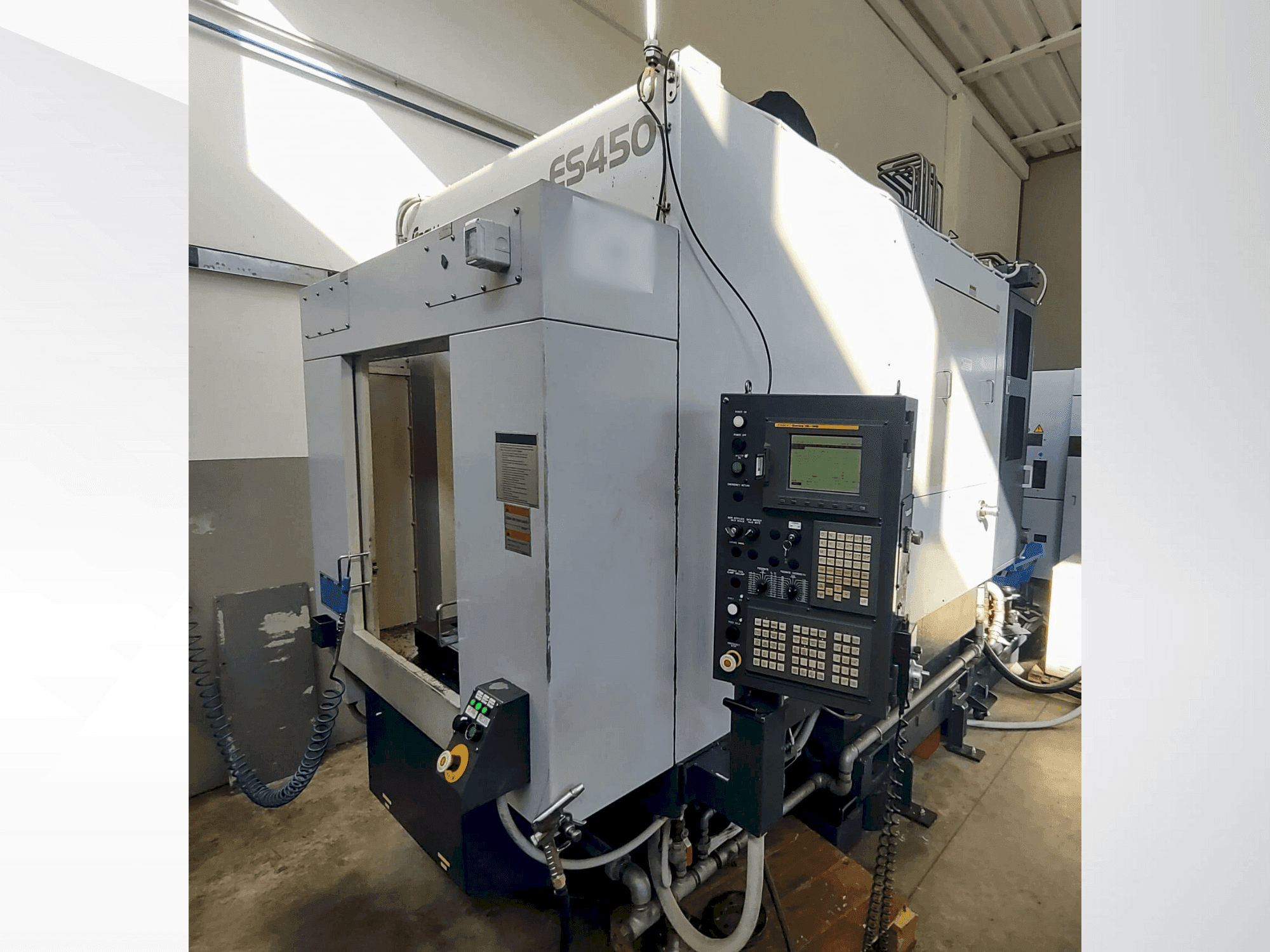

This Enshu ES450 was manufactured in 2004. It features a spindle speed of up to 12,000 min⁻¹, a tool storage capacity of 20, and a rapid traverse feed rate of 60,000 mm/min. The machine accommodates a maximum workpiece weight of 800 kg and offers a cutting feed rate of up to 15,000 mm/min. Consider the opportunity to buy this Enshu ES450 vertical machining centre. Contact us for more information.

Overview

brand: Enshu
year: 2004
MODEL: ES450
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Enshu ES450

Control Unit

Control Brand: FANUC
Control Model: 18i-MB

Dimensions

Machine Depth: 1580 mm
Machine Height: 3138 mm
Machine Weight: 7700 kg
Table Length: 900 mm
Table Load: 800 kg
Table Width: 450 mm

Movement

X-axis Travel: 650 mm
Y-axis Travel: 450 mm
Z-axis Travel: 460 mm

Technical Specification

Max. Tool Weight: 8 kg
Number of Tools: 20
Spindle Power: 15 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Pallet System (Pallet change method: Rotary type, Pallet change time: 5 sec)

Machine Benefits

Qualitative Machine Benefits

Tool change time (cutting to cutting): 3. 0 sec
Feed motors (x/y/z): 3. 8 kw (y: 2 motors)
Hydraulic pump motor: 1. 5 kw
Lubricant pump motor: 17 w
Magazine motor: 0. 9 kw
Required electric power: 35 kva
Compressed air consumption: 300 l/min (0. 4–0. 8 mpa)
Table height from floor: 850 mm

Technical Machine Benefits

Distance from table top to spindle center: 200–660 mm
Table configuration: 12 mm grooves with 16-m12 threads
Tapered bore: 7/24 taper no. 40
Spindle bearing inner diameter: 65 mm
Rapid traverse feed rate: 60000 mm/min
Cutting feed rate: 1 – 15000 mm/min
Tool shank: mas bt40
Pull stud: mas p40t-p
Tool selection method: nearest absolute address
Tool change time (tool to tool): 2. 11 sec

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
