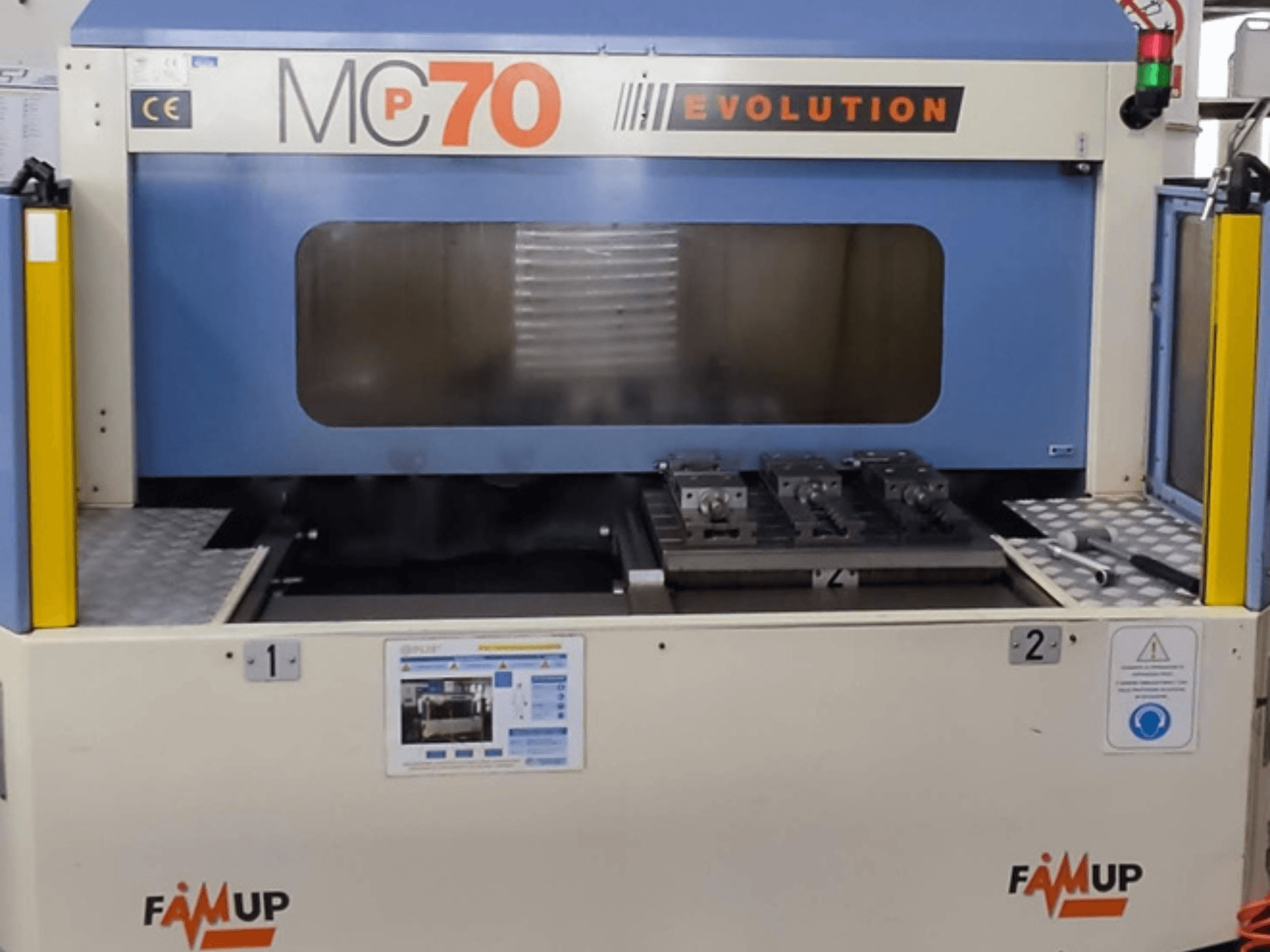

This 3-axis FAMUP MCP70 E was manufactured in 2001. It features an X-axis travel of 700 mm, Y-axis travel of 480 mm, and Z-axis travel of 640 mm. The machine includes a table size of 600 x 450 mm and a maximum table load of 300 kg. If you are looking to get high-quality machining capabilities, consider the FAMUP MCP70 E vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FAMUP
- year: 2001
- MODEL: MCP70 E
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - FAMUP MCP70 E
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Dimensions
- Machine Height: 3260 mm
- Machine Length: 3320 mm
- Machine Weight: 5500 kg
- Machine Width: 3360 mm
- Table Load: 600 kg
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 480 mm
- Z-axis Travel: 640 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 30
- Spindle Power: 18.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Table / Pallet
Table size: 600 x 450 mm
T-slots: 5 x 14 x 80 mm
Central bore: Ø50 H6
Pallet change time: 9 sec
Axis performance
Working feedrate X/Y/Z: 10,000 mm/min
Rapid feedrate X/Y/Z: 30,000 mm/min
Working thrust S1 X/Y: 4,800 N
Working thrust S1 Z: 7,200 N
Measurement system
Indirect measuring system
Accuracy
Positioning accuracy X/Y/Z: ±5 µm
Repeatability X/Y/Z: ±1.5 µm
Reversal accuracy: 3 µm
Tool changer
Positions: 30
Selection: Bidirectional
Max. tool diameter: Ø75 mm
Max. tool length: 280 mm
Tool change time: 1.7 sec
Chip-to-chip time: 3.5 sec
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
