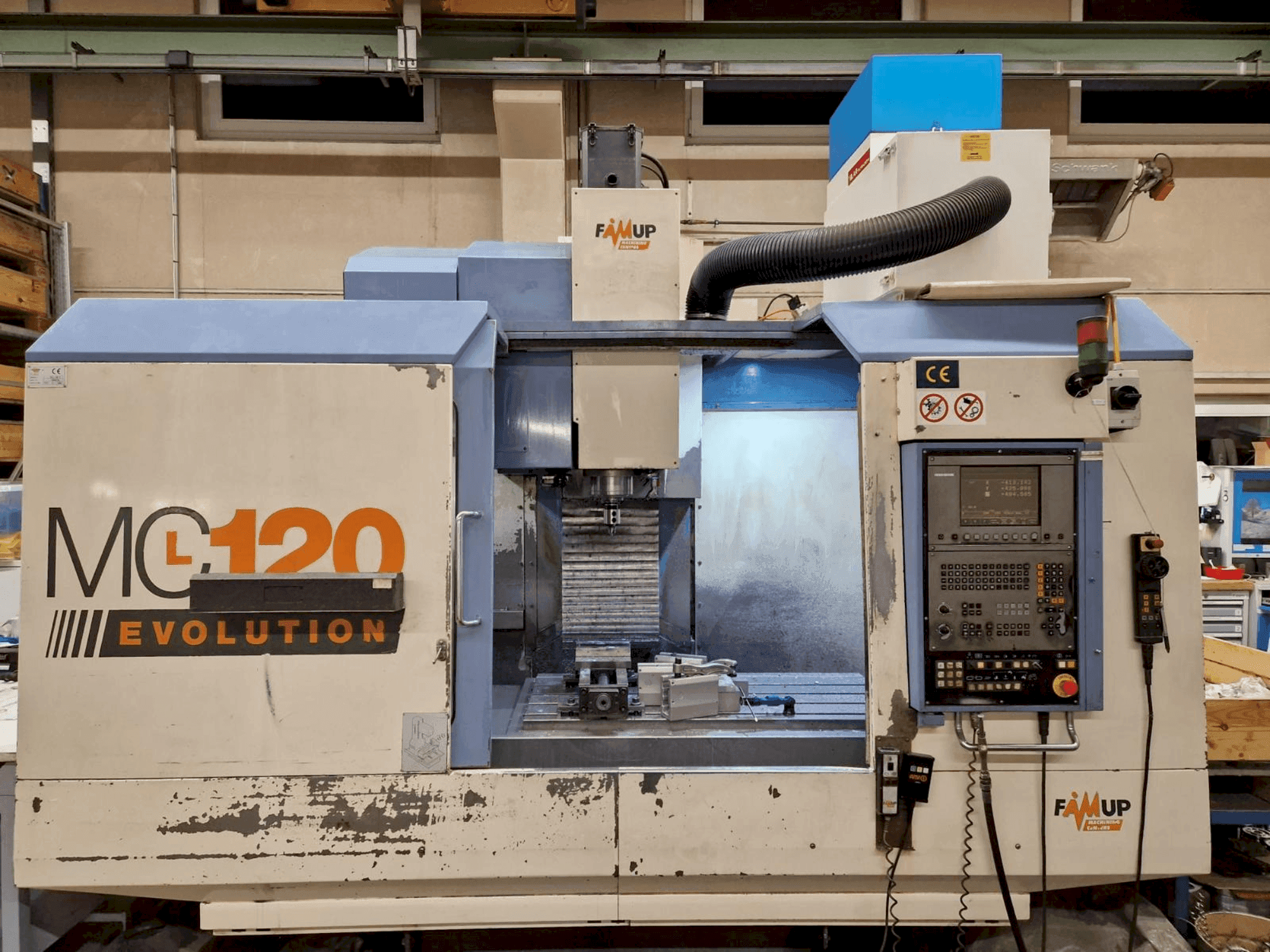

Front view of FAMUP MCL 120 Evolution machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FAMUP MCL 120 Evolution

Photo Gallery

FAMUP - MCL 120 EvolutionDE-MIL-FAM-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FAMUP MCL 120 Evolution For Sale | gindumac.com

Show in original language

This 3-axis FAMUP MCL 120 Evolution vertical machining centre was manufactured in 2002. It features a large work range with X, Y, Z axes at 1200 mm, 600 mm, and 640 mm respectively, and a rapid traverse rate up to 30,000 mm/min. The spindle supports speeds from 50 to 10,000 rpm, and the tool magazine holds 24 slots. If you are looking to get high-quality milling capabilities, consider the FAMUP MCL 120 Evolution machine we have for sale. Contact us for more information.

Overview

brand: FAMUP
year: 2002
MODEL: MCL 120 Evolution
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FAMUP MCL 120 Evolution

General Data

Measurements width: 2100 mm
Measurements depth: 3350 mm
Measurements height: 3160 mm
Machine weight: 6500 kg

Control Unit

Brand: HEIDENHAIN

Movement

X-AXIS Movement: 1200 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 640 MM

Table

Outer length: 1300 mm
Outer width: 620 mm
Table load: 800 kg

Additional Information

Additional equipment

Machine comes without suction unit (blue white thing on top of machine, see WA0104), without tools (WA0053) and without clamping system (WA0064)

Machine Benefits

Technical Machine Benefits

Sound level: 71. 5 db(a)
Minimum compressed air pressure: 6 bar
Foundation: unreinforced concrete
Working feed (x, y, z): 10000 mm/min / rapid traverse (x, y, z): 30000 mm/min / working force (s1, x, y): 4800 n / working force (s1, z): 7200 n
Number of slots: 5 / slot width: 18 mm / slot spacing: 125 mm
Magazine slots: 24 / tool selection: double-sided / maximum tool diameter: 75 mm / maximum tool length: 280 mm / maximum tool weight: 6 kg / tool change time: 1. 7 seconds / tool change time: 1. 7 seconds
Positional accuracy in one direction (x, y, z): ±5 micra/ repeatability in one direction (x, y, z): ±1. 5 micra
Average reversal error: 3 micra/ coolant tank capacity: 350 dm³
Pump type: centrifugal pump / max delivery rate: 4 dm³/min / max pressure: 25 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
