HERMLE - U 630 TDE-MIL-HER-2001-00006

£ 10,292
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

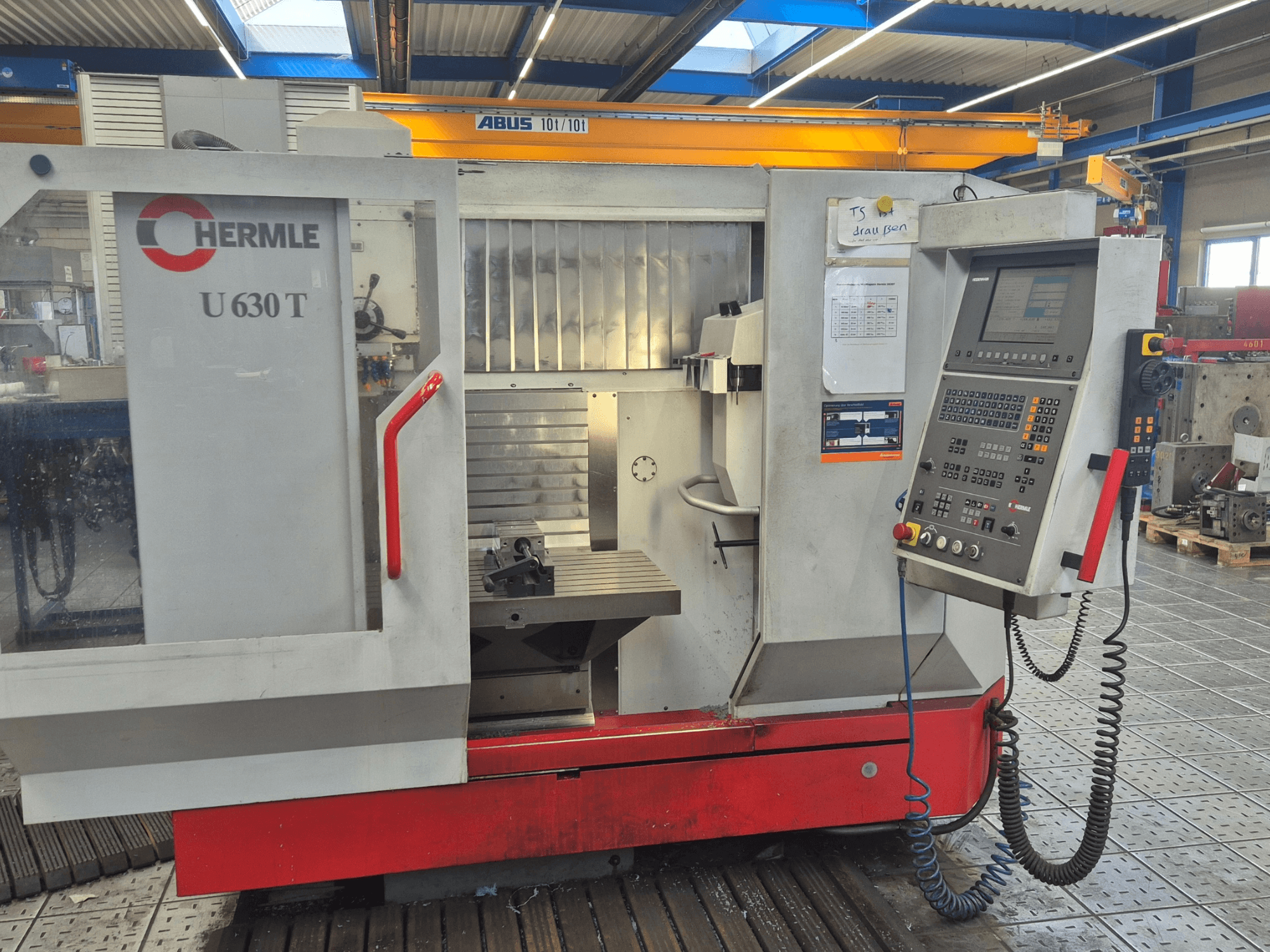

This 3-axis HERMLE U 630 T was manufactured in 2001. It features an X-axis travel of 630 mm, Y-axis travel of 500 mm, and Z-axis travel of 500 mm. The machine includes a table size of 900 x 528 mm and a maximum table load of 400 kg. If you are looking to get high-quality machining capabilities, consider the HERMLE U 630 T vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HERMLE
  • year: 2001
  • MODEL: U 630 T
  • production hours: 13572
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - HERMLE U 630 T

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 426

Dimensions

  • Machine Height: 2310 mm
  • Machine Length: 2310 mm
  • Machine Weight: 4800 kg
  • Machine Width: 2504 mm
  • Table Length: 900 mm
  • Table Load: 400 kg
  • Table Width: 528 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 630 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 7.5 kW
  • Spindle Speed: 7000 RPM
  • Taper Size: SK 40
  • Tool Stations: 40

Additional Information

  • Working hours (from display):

    • Control on: 68,311 h

    • Machine on: 65,234 h

    • Program run: 13,572 h

  • Spindle Speed Range: 20 - 7000 rpm (stepless)

  • Taper / Tool Holder: SK 40 (similar to DIN 2079 / DIN 69871 / DIN 69872-19)

  • Tool Clamping: Hydromechanical (Clamping Force: 10 kN)

  • Spindle Diameter Front Bearing: 55 mm (Horizontal/Vertical 80/55 mm)

  • Feed Rate (X, Y, Z): 1 - 2000 / 15000 mm/min

  • Feed Force (80% Duty Cycle): 8000 N

  • Rapid Traverse (X, Y, Z): 15 m/min

  • Table dimensions: 900 x 528 mm

  • Swivel Range Spindle Head: 0 - 90°

  • Quill Stroke (Manual): 75 mm (Quill Diameter: 100 mm)

  • T-Slots: 7 slots, Width 14 H7 mm, Pitch 63 mm

  • Tool Changer: Vertical Tool Changer HTC 16 (16 pockets)

  • Noise Level: 75 dB (A)

  • Total Floor Space Requirement: 5.00 m²

  • Floor Load: ca. 964 kg/m²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
