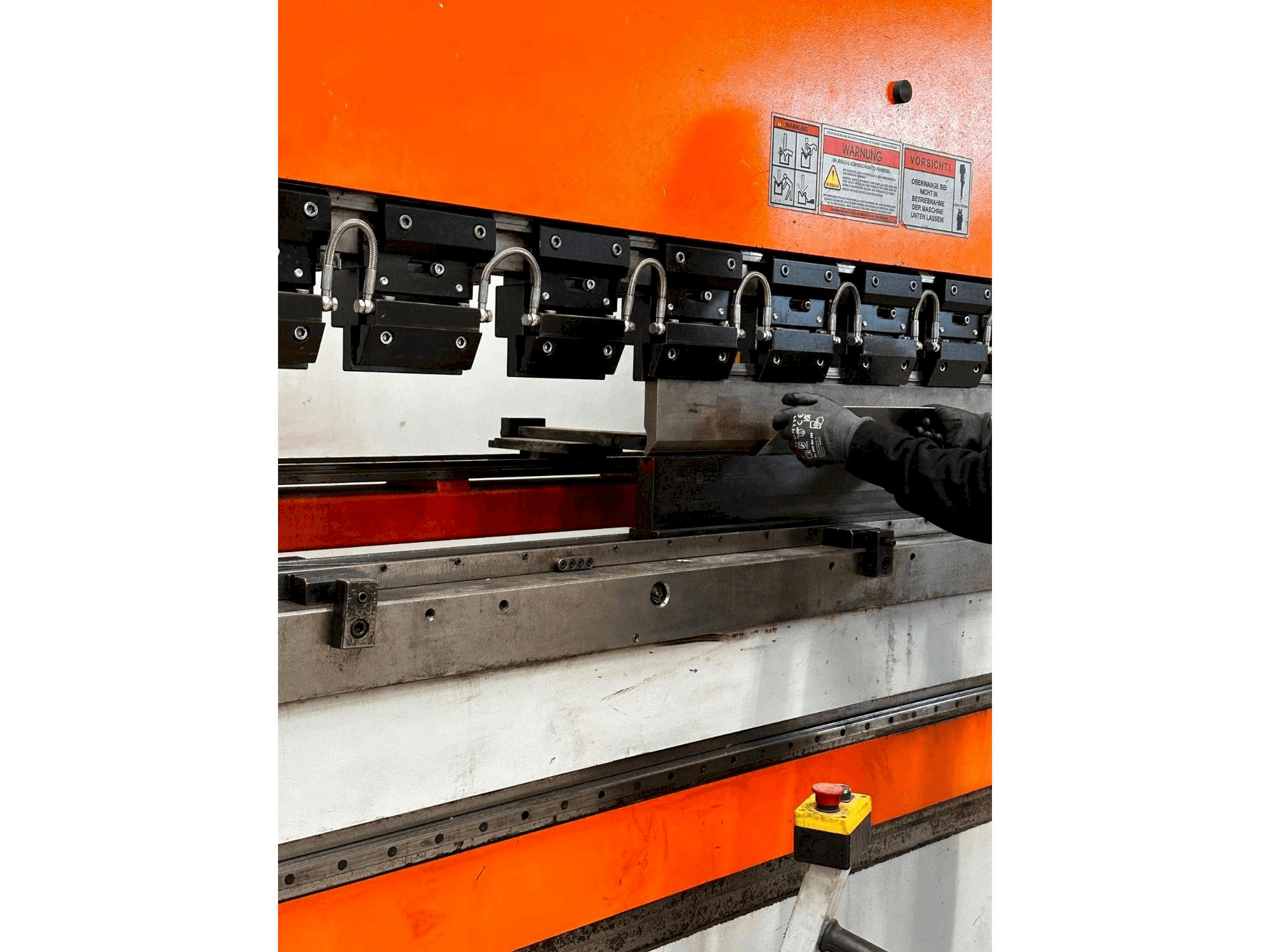

Left side view of ERMAKSAN SPEED-BEND PRO 51000 X 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ERMAKSAN SPEED-BEND PRO 51000 X 400

Photo Gallery

ERMAKSAN - SPEED-BEND PRO 51000 X 400DE-BEN-ERM-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
ERMAKSAN SPEED-BEND PRO 51000 X 400 Bending machine

Show in original language

This ERMAKSAN SPEED-BEND PRO 51000 X 400 Bending machine was manufactured in the year 2017 in Turkiye. It has 7 axis. The machine has a pressing force of 4000 kN.

Overview

brand: ERMAKSAN
year: 2017
MODEL: SPEED-BEND PRO 51000 X 400
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - ERMAKSAN SPEED-BEND PRO 51000 X 400

General Data

Measurements width: 7000 mm
Measurements depth: 3000 mm
Measurements height: 4000 mm
Machine weight: 35000 kg

Main drive

Pressing force: 4000 kN
Stroke: 375 mm
Number of axis: 7

Movement

X-AXIS Movement: 800 mm

Table

Height adjustment: 900 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Die block: 200x200 v - 60-80-100-140 mm
Cooling: oil cooler
Adapter rail for 60 mm die: l=5000 mm
Hydraulic clamping: promecan type
Support arms: 4 pieces on linear guide
Backgauge: 4-axis

Technical Machine Benefits

Column projection: 510 mm
Crowning: controlled
Rear safety system: fisseler/m2000 sick
Front safety system: akas laser
Safety guard: lateral with switch
Foot switch: double pedal
Hydraulics: hörbiger
Y1/y2 axes: synchronized (+/- 0. 01 mm)
Press pressure: automatic adjustment
Upper tool punch: 6. 100/135/85/r0,8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
